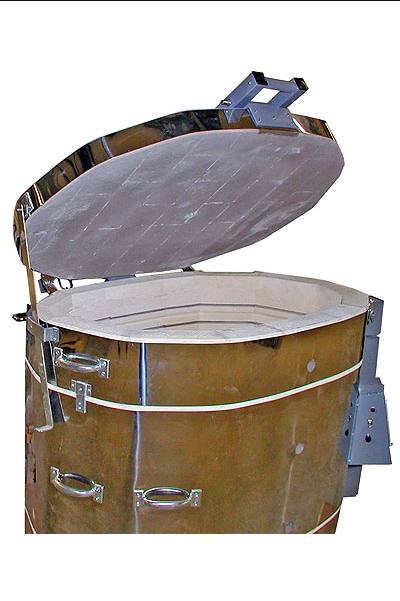

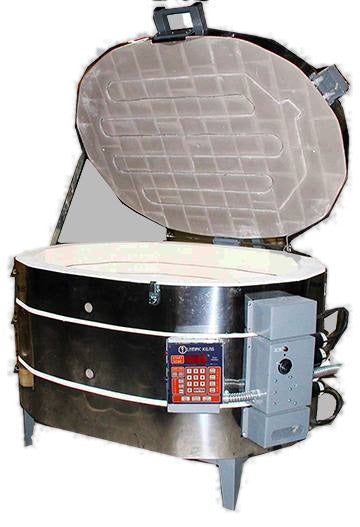

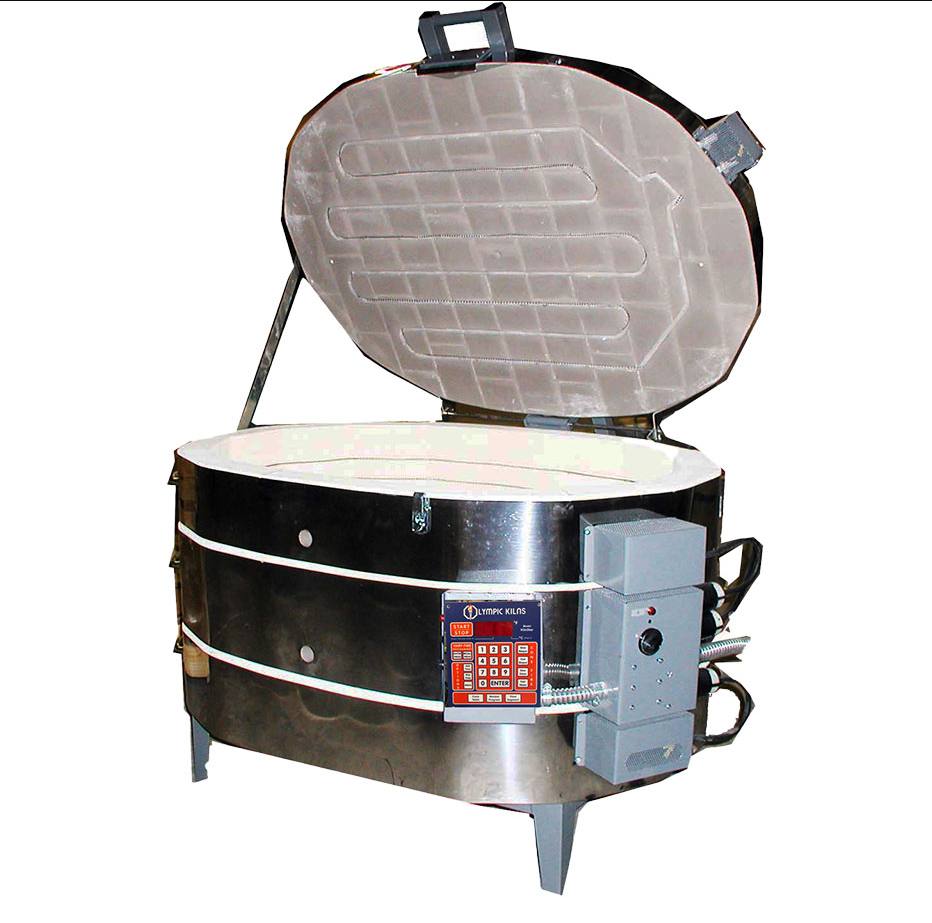

Olympic DM3023HE Electric Kiln
An Olympic Dual Media kiln with elements in the walls and the lid, so it fires pottery to cone 10 and also handles glass work that benefits from top heat.
$6,089.00
Freight quoted upfront
Olympic DM3023HE Electric Kiln
$6,089.00
Skip to product information
Olympic DM3023HE Electric Kiln
$6,089.00
At a glance
| Size | X-Large |
|---|---|
| Interior | 42.0″ W×D |
| Cubic feet | 14.9 |
| Max cone | Cone 10 |
| Power | 240V · Single · 88A |
| Controller | Bartlett KilnStar |
Key features
- Fires to Cone 10 / 2350°F — cone 10 stoneware and porcelain
- Chamber: 42 x 30 x 24.5 in, 14.9 cu ft
- Controller: Bartlett KilnStar digital controller; upgrade to the Genesis touchscreen for more programs, delay start, preheat, cone offset and skip step
- Stainless steel jacket and pilot light
- 3" brick for better insulation and heat retention
- Stackable sections with Olympic's heat-shielded electrical box; optional lid-lift assist
- Lid element plus wall elements for top-down heat
What's included
- Olympic DM3023HE kiln
- Metal stand
- Bartlett KilnStar digital controller
- Pilot light
- Furniture kit, vent and other accessories sold separately
Specifications
| Kiln model | DM3023HE |
|---|---|
| Series | Olympic Dual Media |
| Inside dimensions (in) | 42 x 30 x 24.5 (w x d x h) |
| Capacity | 14.9 cu ft |
| Outside dimensions with stand/frame (in) | 55 x 53 x 44.5 |
| Max temperature | Cone 10 / 2350°F |
| Loading type | Top-loading |
| Brick thickness | 3" |
| Voltage | 240V or 208V, single-phase (3-phase available) |
| Amperage | 78A at 240V / 88A at 208V |
| 3-phase amperage | 52A at 240V / 59A at 208V |
| Wattage | 18,720W |
| Plug / connection | Direct wired |
| Breaker (Olympic spec) | 100/120A (240V/208V) |
| Copper wire size | #4, #2 if circuit longer than 40 ft |
| Controller | Bartlett KilnStar digital (Genesis touchscreen upgrade available) |
| Est. shipping weight | 595 lbs |
| Shipping method | Motor freight (LTL truck) — quoted upfront |
Electrical requirements
240V or 208V single-phase: 78A at 240V / 88A at 208V, 18,720W, Direct wired. Olympic specifies a 100/120A breaker (240V/208V) and #4, #2 if circuit longer than 40 ft copper wire. Also available wired 3-phase (52/59A, 70/80A breaker). Rule of thumb: a breaker of about 125% of the kiln's draw — roughly 110A for this model at its highest-amperage voltage. Always confirm the breaker, wire and receptacle with your electrician.
Warranty
1-year limited manufacturer warranty (Olympic warranty for cone 10 kilns). Elements, thermocouple and kiln furniture are not covered. Contact us for the full warranty terms.
Shipping, lead time & ordering
- Made to order in the USA and shipped direct from the manufacturer in Flowery Branch, GA. We confirm current lead time with you when you order.
- Ships by motor freight (LTL truck) — freight is quoted upfront, before you pay for it. Residential liftgate delivery is available.
- Questions? Call (737) 231-1880 or use Get a Quote. Try our Electrical Readiness Checker.
- See our Shipping Policy and Return Policy.
Parts for this kiln
Elements, thermocouples, and relays wear with use. We stock genuine manufacturer parts for your model — use the part finder if you're unsure which one you need.
