KILN

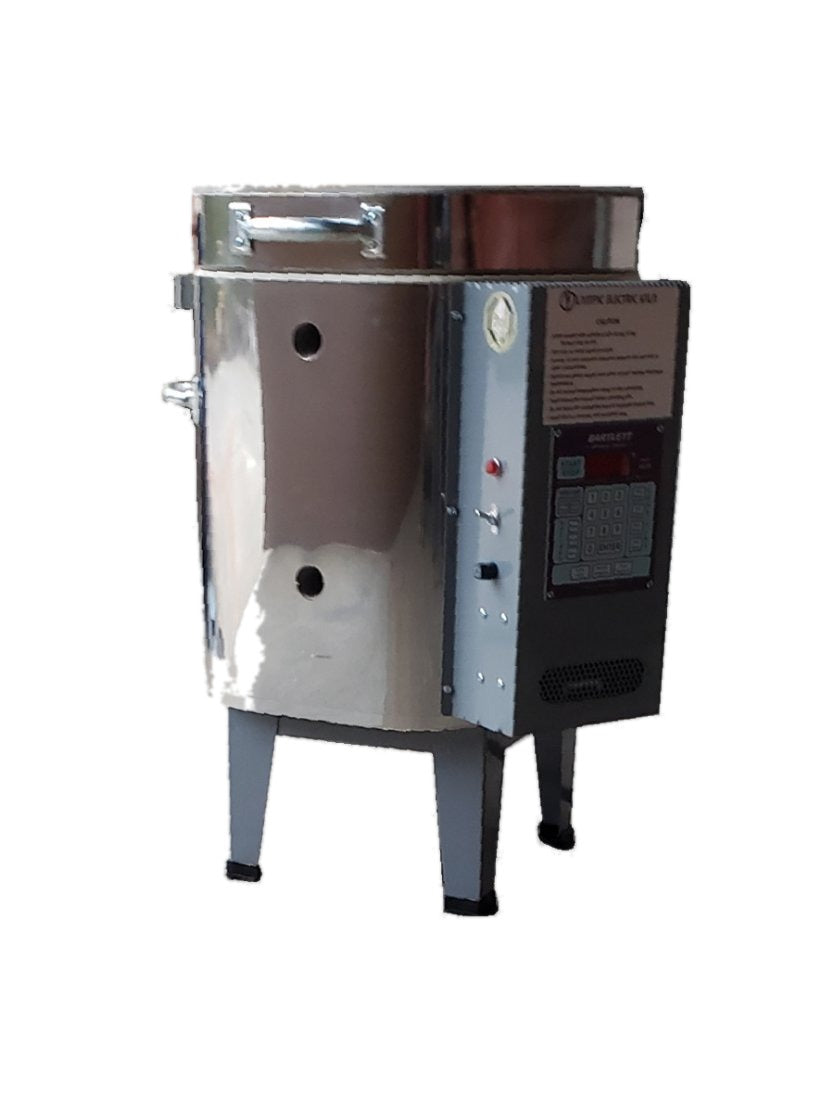

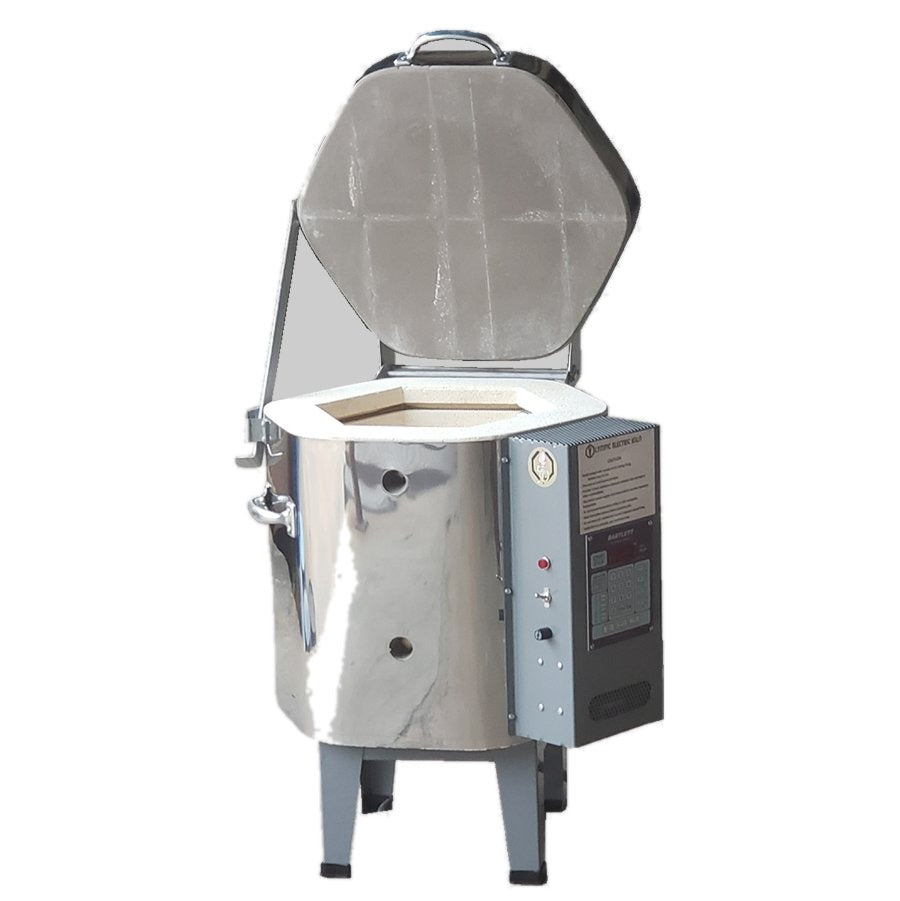

Olympic 1214-120HE Electric Kiln
A compact Olympic electric kiln that plugs into a standard household-style 120-volt outlet — a practical choice for test tiles, small pieces, jewelry and beginning potters with limited space.
$1,589.00
Freight quoted upfront
Olympic 1214-120HE Electric Kiln
$1,589.00
Skip to product information
Olympic 1214-120HE Electric Kiln
$1,589.00
At a glance
| Size | Small |
|---|---|
| Interior | 11.25″ W×D |
| Cubic feet | 0.86 |
| Max cone | Cone 10 |
| Power | 120V · Single · 24A |
| Controller | Bartlett KilnStar |
Key features
- Fires to Cone 10 / 2350°F — cone 10 stoneware and porcelain

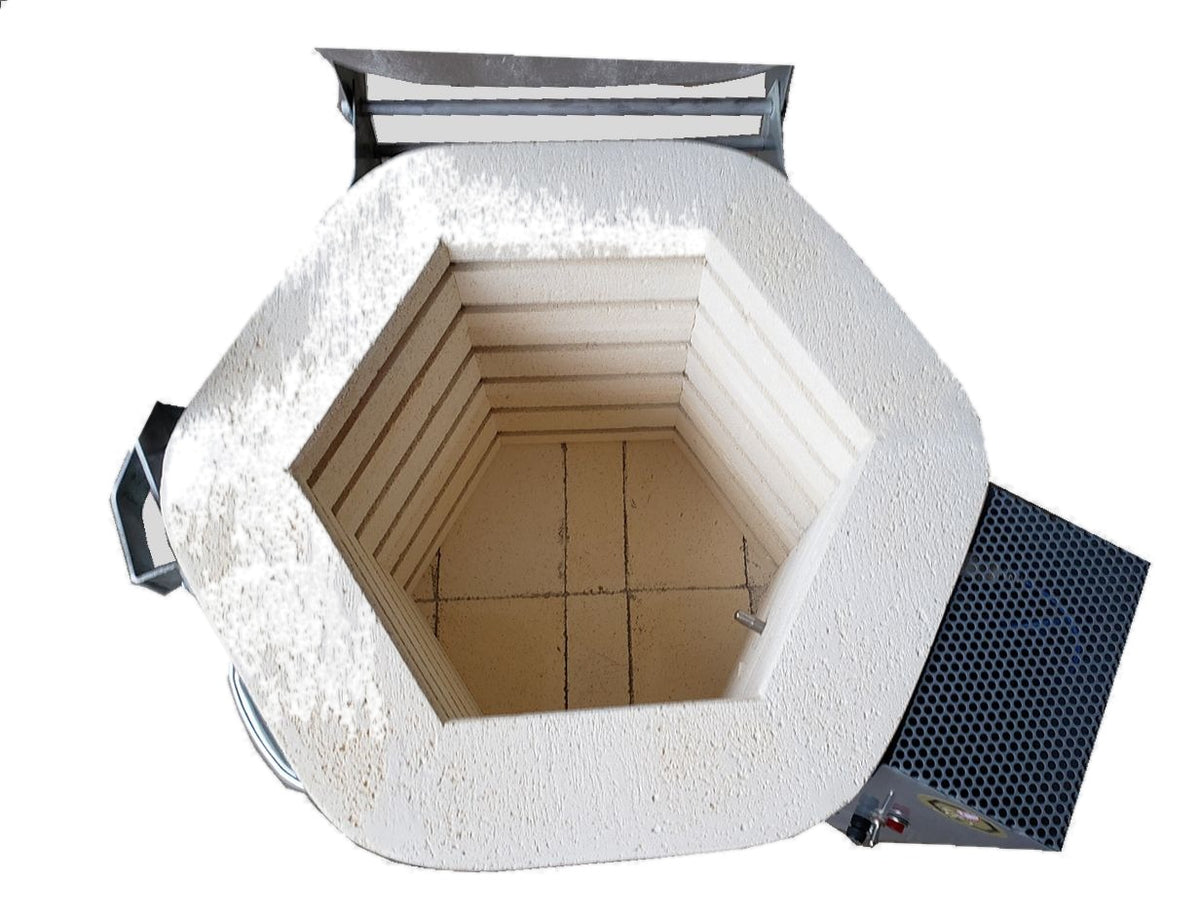

- Chamber: 11.25 x 13.5 in, 0.86 cu ft
- Controller: Bartlett KilnStar digital controller; upgrade to the Genesis touchscreen for more programs, delay start, preheat, cone offset and skip step
- Stainless steel jacket and pilot light
- Plugs into a 120V outlet (NEMA L5-30) — no 240V circuit needed
What's included
- Olympic 1214-120HE kiln
- Metal stand
- Bartlett KilnStar digital controller
- Pilot light
- Furniture kit, vent and other accessories sold separately
Specifications
| Kiln model | 1214-120HE |
|---|---|
| Series | Olympic 120V Top-Loading |
| Inside dimensions (in) | 11.25 x 13.5 (width x height) |
| Capacity | 0.86 cu ft |
| Outside dimensions with stand/frame (in) | 24 x 26.5 |
| Max temperature | Cone 10 / 2350°F |
| Loading type | Top-loading |
| Voltage | 120V |
| Amperage | 24A |
| Wattage | 2,880W |
| Plug / connection | NEMA L5-30 |
| Breaker (Olympic spec) | 30A |
| Copper wire size | #10, #8 if circuit longer than 40 ft |
| Controller | Bartlett KilnStar digital (Genesis touchscreen upgrade available) |
| Est. shipping weight | 135 lbs |
| Shipping method | Motor freight (LTL truck) — quoted upfront |
Electrical requirements
120V: 24A draw, 2,880W, NEMA L5-30 plug. Olympic specifies a 30A breaker and #10, #8 if circuit longer than 40 ft copper wire. Rule of thumb: a breaker of about 125% of the kiln's draw — roughly 30A for this model at its highest-amperage voltage. Always confirm the breaker, wire and receptacle with your electrician.
Warranty
1-year limited manufacturer warranty (Olympic warranty for cone 10 kilns). Elements, thermocouple and kiln furniture are not covered. Contact us for the full warranty terms.
Shipping, lead time & ordering
- Made to order in the USA and shipped direct from the manufacturer in Flowery Branch, GA. We confirm current lead time with you when you order.
- Ships by motor freight (LTL truck) — freight is quoted upfront, before you pay for it. Residential liftgate delivery is available.
- Questions? Call (737) 231-1880 or use Get a Quote. Try our Electrical Readiness Checker.
- See our Shipping Policy and Return Policy.
Parts for this kiln
Elements, thermocouples, and relays wear with use. We stock genuine manufacturer parts for your model — use the part finder if you're unsure which one you need.
