GLASS KILN

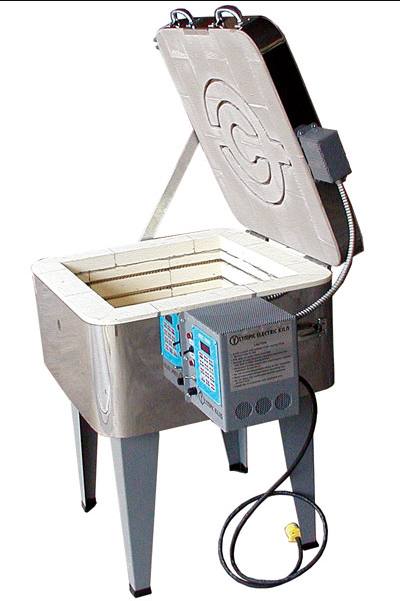

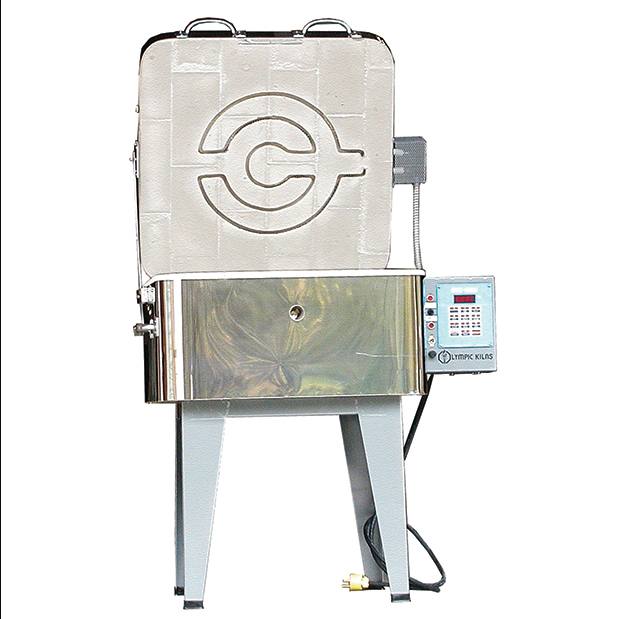

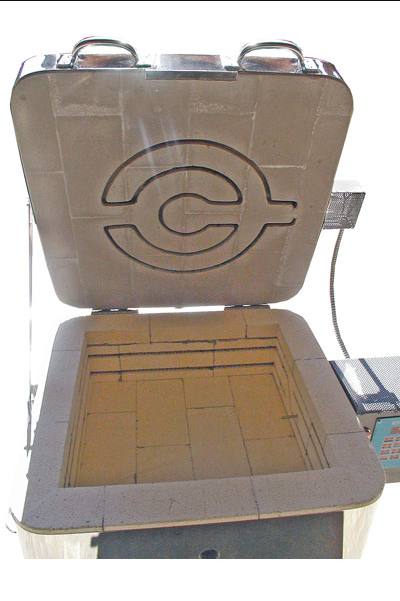

Olympic Square 186GFE Glass Kiln
A square Olympic glass kiln that runs on a standard 120-volt circuit, with a lid element for fusing and a body element for ramping and annealing — selected by a switch on the control box.
$2,149.00
Freight quoted upfront
Olympic Square 186GFE Glass Kiln
$2,149.00
Skip to product information
Olympic Square 186GFE Glass Kiln
$2,149.00
At a glance
| Interior | 18.0″ × 18.0″ W×D |
|---|---|
| Cubic feet | 1.1 |
| Power | 120V · Single · 16A |
| Controller | Bartlett KilnStar |
Key features
- Fires to 1,550°F
- 18 x 18 x 6 in interior (1.1 cu ft)
- Top-loading
- Bartlett KilnStar digital controller (Genesis touchscreen upgrade available)
- Selector switch chooses lid or body element (one at a time on 120V)
- Lid lift assist available as an option
- Stainless steel jacket and pilot light
What's included
- KilnStar digital controller
- Stand or frame
- Peephole plug(s) and instruction manual
- Furniture kit, vent and other options sold separately
Specifications
| Model | Square 186GFE |
|---|---|
| Interior (W x D x H, in) | 18 x 18 x 6 |
| Capacity | 1.1 cu ft |
| Exterior with stand (in) | 32 x 26 x 33 |
| Max temperature | 1,550°F |
| Loading | Top-loading |
| Insulation | 3" |
| Lid lift assist | Optional |
| Voltage | 120V |
| Amps | 16A |
| Watts | 1,920 |
| Olympic breaker spec | 20 A |
| Plug | NEMA 5-20 |
| Copper wire | #12 (#10 over 40 ft) |
| Est. ship weight | 195 lb |
| Controller | Bartlett KilnStar |
Electrical requirements
120V: Olympic specifies a 20 A breaker, NEMA 5-20, and #12 (#10 over 40 ft) copper wire. Rule of thumb: a breaker of about 125% of the kiln's draw — roughly 20A for this model at its highest-amperage voltage. Always confirm the breaker, wire and receptacle with your electrician.
Warranty
2-year limited manufacturer warranty. Elements, thermocouple and kiln furniture are not covered. Contact us for the full warranty terms.
