Olympic GF8E Glass Kiln

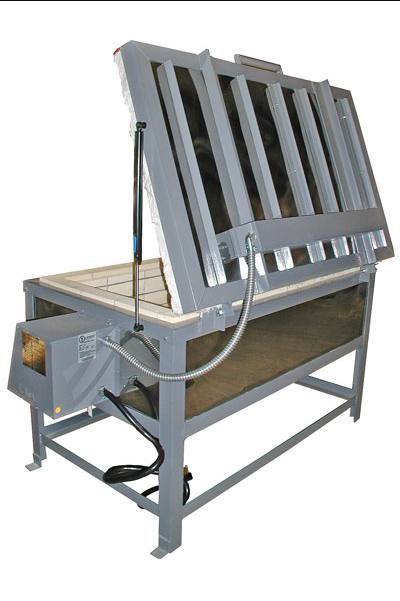

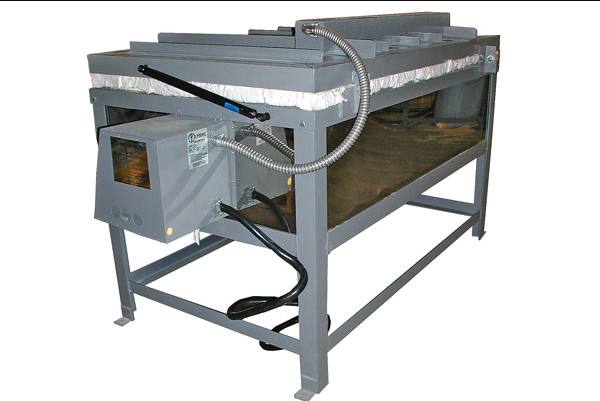

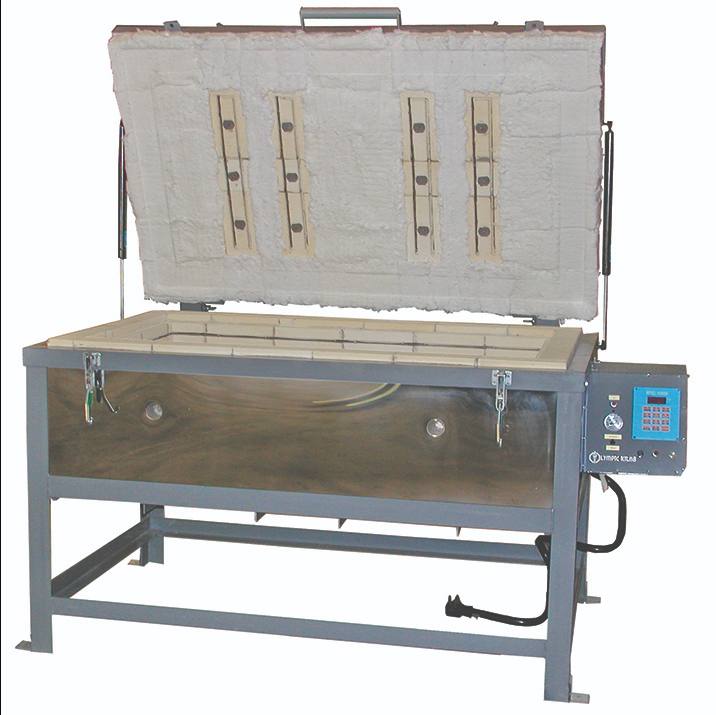

An Olympic Large Capacity production glass kiln: heavy angle-iron frame, 4.5" brick plus 1" fiberboard walls, heavy-gauge elements, industrial relays and its own breaker box for lockout.
$11,500.00
Freight quoted upfront
Olympic GF8E Glass Kiln
$11,500.00
Skip to product information
Olympic GF8E Glass Kiln
$11,500.00
At a glance
| Interior | 48.0″ × 24.0″ W×D |
|---|---|
| Cubic feet | 8.0 |
| Power | 240V · Single (3-phase available) · 45A @240V / 52A @208V |
| Controller | Bartlett KilnStar |
Key features
- Fires to 1,700°F
- 48 x 24 x 12 in interior (8 cu ft)
- Top-loading
- Bartlett KilnStar digital controller (Genesis touchscreen upgrade available)
- Own breaker box for safety and lockout
- Optional floor elements, 2- or 3-zone control and 480V
- Stainless steel jacket and pilot light
What's included
- KilnStar digital controller
- Stand or frame
- Peephole plug(s) and instruction manual
- Furniture kit, vent and other options sold separately
Specifications
| Model | GF8E |
|---|---|
| Interior (W x D x H, in) | 48 x 24 x 12 |
| Capacity | 8 cu ft |
| Exterior with stand (in) | 70 x 51 x 56 |
| Max temperature | 1,700°F |
| Loading | Top-loading |
| Insulation | 4.5" brick + 1" fiber |
| Lid lift assist | Counter-sprung lid |
| Voltage | 240V or 208V, single-phase (3-phase available) |
| Amps | 45A @ 240V / 52A @ 208V; 3-phase 30A / 35A |
| Watts | 10,800 |
| Olympic breaker spec | 70 (208V) / 60 (240V); 3-phase 50 / 40 A |
| Plug | Direct wired (NEMA 6-50 option at 240V 1-ph) |
| Copper wire | #4 (#2 over 40 ft) |
| Est. ship weight | 1025 lb |
| Controller | Bartlett KilnStar |
Electrical requirements
240V or 208V single-phase: Olympic specifies a 70 (208V) / 60 (240V); 3-phase 50 / 40 A breaker, Direct wired (NEMA 6-50 option at 240V 1-ph), and #4 (#2 over 40 ft) copper wire. Rule of thumb: a breaker of about 125% of the kiln's draw — roughly 70A for this model at its highest-amperage voltage. Always confirm the breaker, wire and receptacle with your electrician. Kilns shipping to CA, IL, CT, MN, ME, MA, NH, NY, RI and VT must be equipped with solid-state relays (priced at order).
Warranty
1-year limited manufacturer warranty. Elements, thermocouple and kiln furniture are not covered. Contact us for the full warranty terms.
Shipping, lead time & ordering
- Made to order in the USA and shipped direct from the manufacturer in Flowery Branch, GA. We confirm current lead time with you when you order.
- Ships by motor freight (LTL truck) — freight is quoted upfront, before you pay for it. Residential liftgate delivery is available.
- Questions? Call (737) 231-1880 or use Get a Quote. Try our Electrical Readiness Checker.
- See our Shipping Policy and Return Policy.
