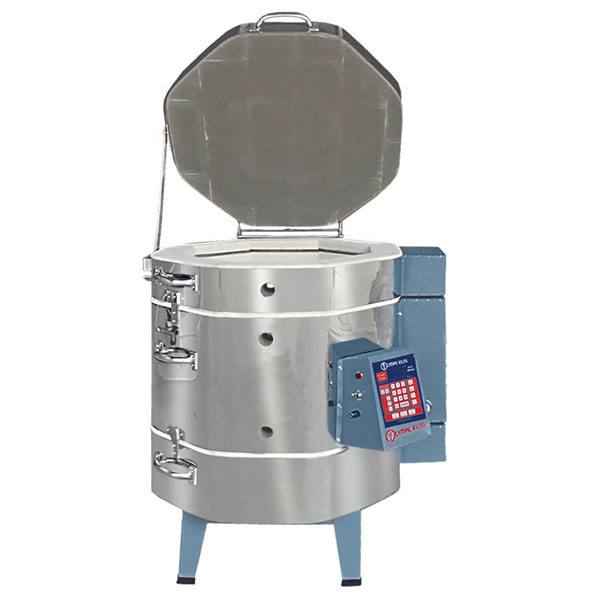

Olympic Freedom F1823HE Package (Electric Kiln)
Olympic's Freedom Series package bundles a cone 10 kiln with the extras most studios end up buying anyway, so you are ready to fire on day one.
$3,709.00
Freight quoted upfront
Olympic Freedom F1823HE Package (Electric Kiln)
$3,709.00
Skip to product information
Olympic Freedom F1823HE Package (Electric Kiln)
$3,709.00
At a glance
| Size | Medium |
|---|---|
| Interior | 17.5″ W×D |
| Cubic feet | 3.29 |
| Max cone | Cone 10 |
| Power | 240V · Single · 30A |
| Controller | Bartlett KilnStar |
Key features
- Fires to Cone 10 / 2350°F — cone 10 stoneware and porcelain
- Chamber: 17.5 x 22.5 in, 3.29 cu ft
- Controller: Bartlett KilnStar digital controller; upgrade to the Genesis touchscreen for more programs, delay start, preheat, cone offset and skip step
- Stainless steel jacket and pilot light
- 3" brick for better insulation and heat retention
What's included
- Olympic Freedom F1823HE Package kiln
- Metal stand
- Bartlett KilnStar digital controller
- Pilot light

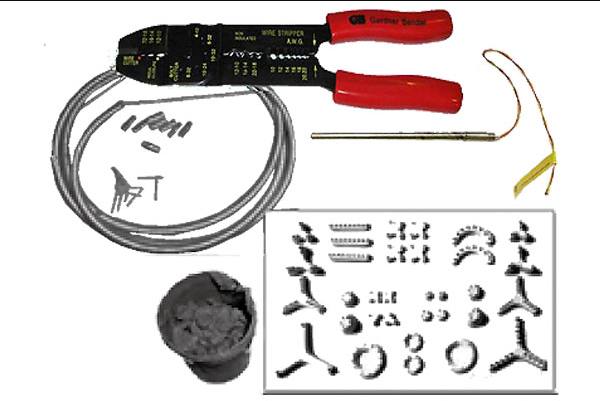

- Freedom Kit (2 elements, thermocouple, crimping tool, pint of mortar, wiring schematic)

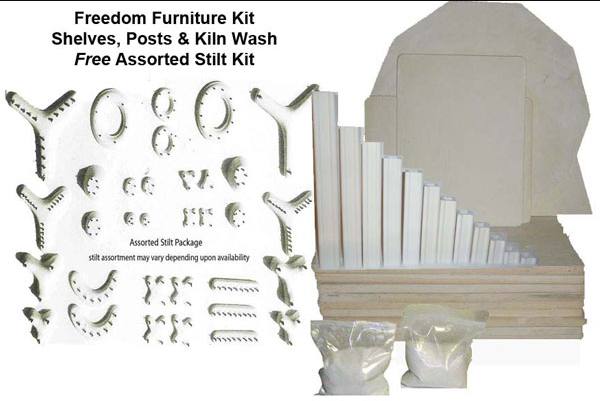

- Furniture kit (shelves, posts, kiln wash)
- VentMaster vent
- Assorted stilt kit (33 stilts)
Specifications
| Kiln model | Freedom F1823HE Package |
|---|---|
| Series | Olympic Freedom Series |
| Inside dimensions (in) | 17.5 x 22.5 (width x height) |
| Capacity | 3.29 cu ft |
| Outside dimensions with stand/frame (in) | 31.5 x 36.5 |
| Max temperature | Cone 10 / 2350°F |
| Loading type | Top-loading |
| Brick thickness | 3" |
| Voltage | 240V or 208V, single-phase (3-phase available) |
| Amperage | 26.25A at 240V / 30A at 208V |
| 3-phase amperage | 18A at 240V / 20A at 208V |
| Wattage | 6,300W |
| Plug / connection | NEMA 6-50 |
| Breaker (Olympic spec) | 40A |
| Copper wire size | #8, #6 if circuit longer than 40 ft |
| Controller | Bartlett KilnStar digital (Genesis touchscreen upgrade available) |
| Est. shipping weight | 285 lbs |
| Shipping method | Motor freight (LTL truck) — quoted upfront |
Electrical requirements
240V or 208V single-phase: 26.25A at 240V / 30A at 208V, 6,300W, NEMA 6-50. Olympic specifies a 40A breaker and #8, #6 if circuit longer than 40 ft copper wire. Also available wired 3-phase (18/20A, 30A breaker). Rule of thumb: a breaker of about 125% of the kiln's draw — roughly 40A for this model at its highest-amperage voltage. Always confirm the breaker, wire and receptacle with your electrician.
Warranty
1-year limited manufacturer warranty (Olympic warranty for cone 10 kilns). Elements, thermocouple and kiln furniture are not covered. Contact us for the full warranty terms.
Shipping, lead time & ordering
- Made to order in the USA and shipped direct from the manufacturer in Flowery Branch, GA. We confirm current lead time with you when you order.
- Ships by motor freight (LTL truck) — freight is quoted upfront, before you pay for it. Residential liftgate delivery is available.
- Questions? Call (737) 231-1880 or use Get a Quote. Try our Electrical Readiness Checker.
- See our Shipping Policy and Return Policy.
Parts for this kiln
Elements, thermocouples, and relays wear with use. We stock genuine manufacturer parts for your model — use the part finder if you're unsure which one you need.
