KILN

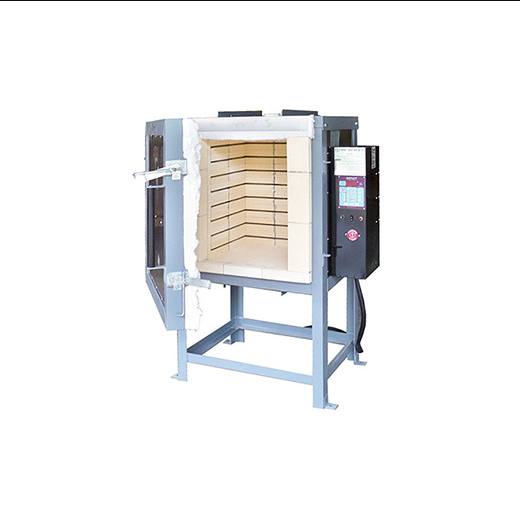

Olympic FL4.5E Electric Kiln
An Olympic large-capacity electric kiln for schools, production studios and institutions that need to fire a lot of ware at once.
$6,259.00
Freight quoted upfront
Olympic FL4.5E Electric Kiln
$6,259.00
Skip to product information
Olympic FL4.5E Electric Kiln
$6,259.00
At a glance
| Size | Medium |
|---|---|
| Interior | 18.0″ W×D |
| Cubic feet | 4.5 |
| Max cone | Cone 10 |
| Power | 240V · Single · 40A |
| Controller | Bartlett KilnStar |
Key features
- Fires to Cone 10 / 2350°F — cone 10 stoneware and porcelain
- Chamber: 18 x 18 x 24 in, 4.5 cu ft
- Controller: Bartlett KilnStar digital controller; upgrade to the Genesis touchscreen for more programs, delay start, preheat, cone offset and skip step
- Stainless steel jacket and pilot light
- Options: 3-phase wiring, 2- or 3-zone control, castors, shelf rack, VentMaster vent (quoted)
What's included
- Olympic FL4.5E kiln
- Bartlett KilnStar digital controller
- Pilot light
- Furniture kit, vent and other accessories sold separately
Specifications
| Kiln model | FL4.5E |
|---|---|
| Series | Olympic Large Capacity |
| Inside dimensions (in) | 18 x 18 x 24 (w x d x h) |
| Capacity | 4.5 cu ft |
| Outside dimensions with stand/frame (in) | 40 x 34 x 58 |
| Max temperature | Cone 10 / 2350°F |
| Loading type | Front-loading (door) |
| Voltage | 240V or 208V, single-phase (3-phase available) |
| Amperage | 36A at 240V / 40A at 208V |
| 3-phase amperage | 24A at 240V / 27A at 208V |
| Wattage | 8,640W |
| Plug / connection | NEMA 6-50 |
| Breaker (Olympic spec) | 50A |
| Copper wire size | #6, #4 if circuit longer than 40 ft |
| Controller | Bartlett KilnStar digital (Genesis touchscreen upgrade available) |
| Est. shipping weight | 740 lbs |
| Shipping method | Motor freight (LTL truck) — quoted upfront |
Electrical requirements
240V or 208V single-phase: 36A at 240V / 40A at 208V, 8,640W, NEMA 6-50. Olympic specifies a 50A breaker and #6, #4 if circuit longer than 40 ft copper wire. Also available wired 3-phase (24/27A, 30/40A breaker). Rule of thumb: a breaker of about 125% of the kiln's draw — roughly 50A for this model at its highest-amperage voltage. Always confirm the breaker, wire and receptacle with your electrician. Kilns shipping to CA, IL, CT, MN, ME, MA, NH, NY, RI and VT must be equipped with solid-state relays (priced at order).
Warranty
1-year limited manufacturer warranty (Olympic warranty for cone 10 kilns). Elements, thermocouple and kiln furniture are not covered. Contact us for the full warranty terms.
Shipping, lead time & ordering
- Made to order in the USA and shipped direct from the manufacturer in Flowery Branch, GA. We confirm current lead time with you when you order.
- Ships by motor freight (LTL truck) — freight is quoted upfront, before you pay for it. Residential liftgate delivery is available.
- Questions? Call (737) 231-1880 or use Get a Quote. Try our Electrical Readiness Checker.
- See our Shipping Policy and Return Policy.
Parts for this kiln
Elements, thermocouples, and relays wear with use. We stock genuine manufacturer parts for your model — use the part finder if you're unsure which one you need.
