GLASS KILN
Olympic 314 Slider Glass Kiln

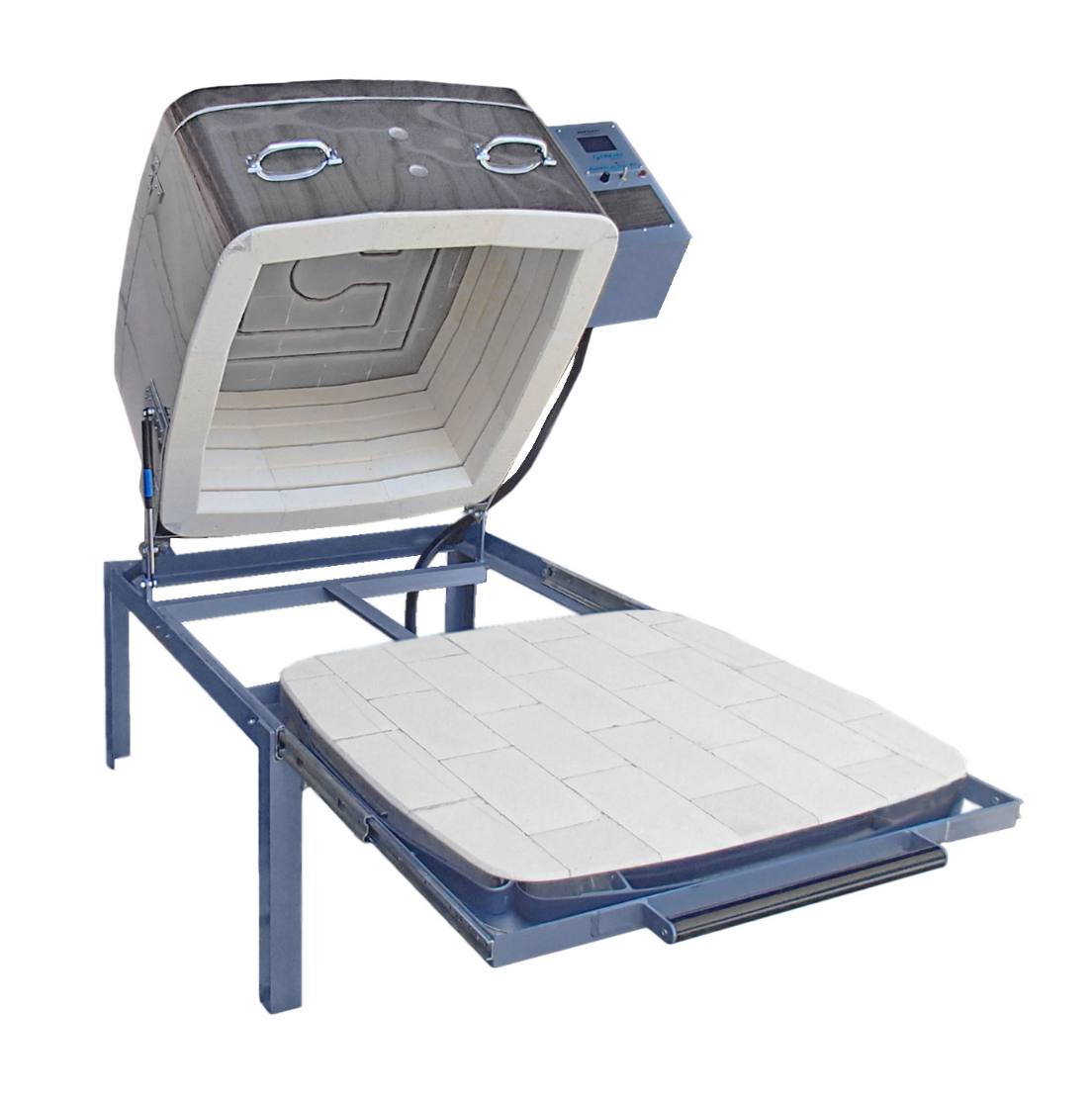

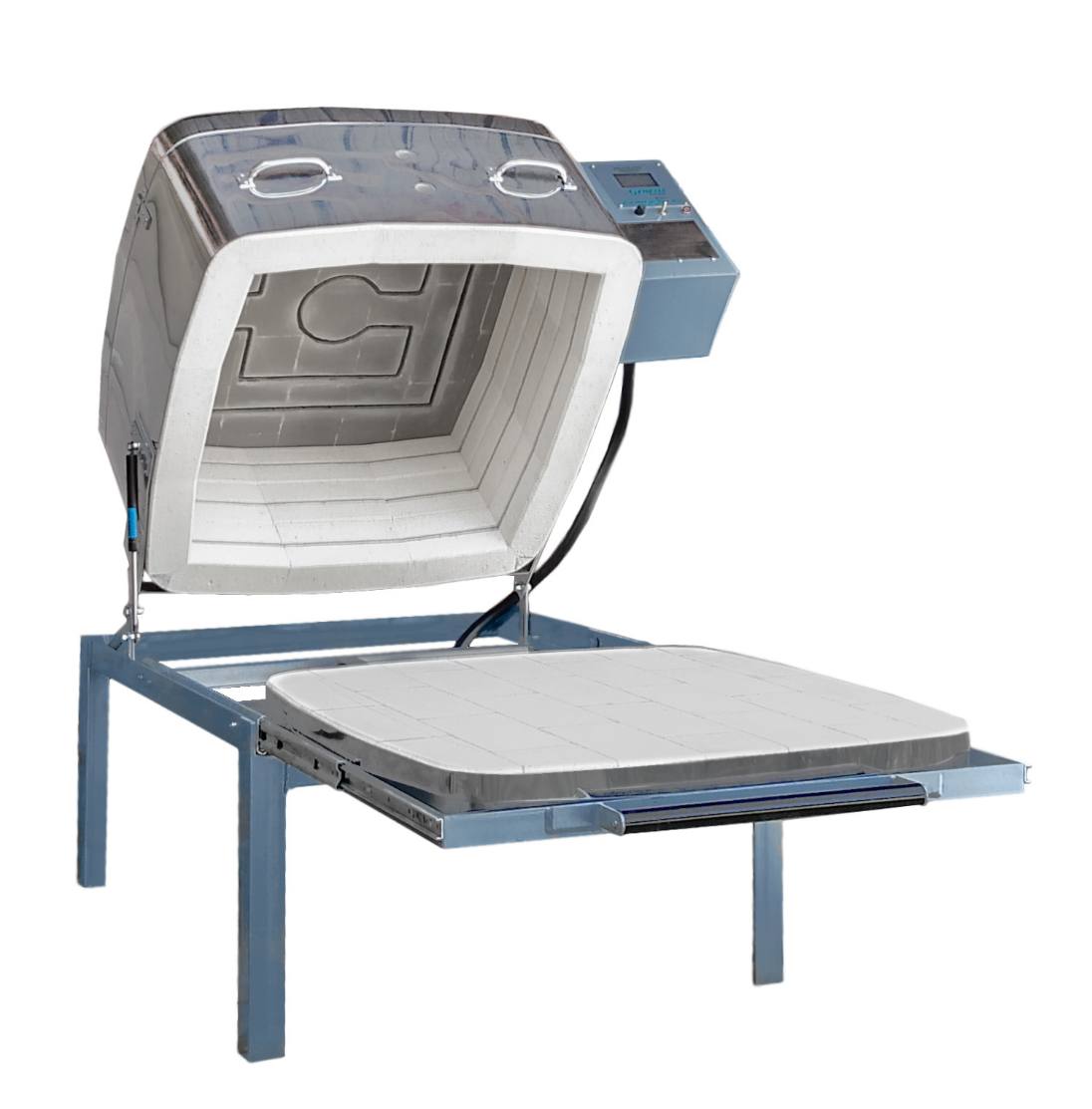

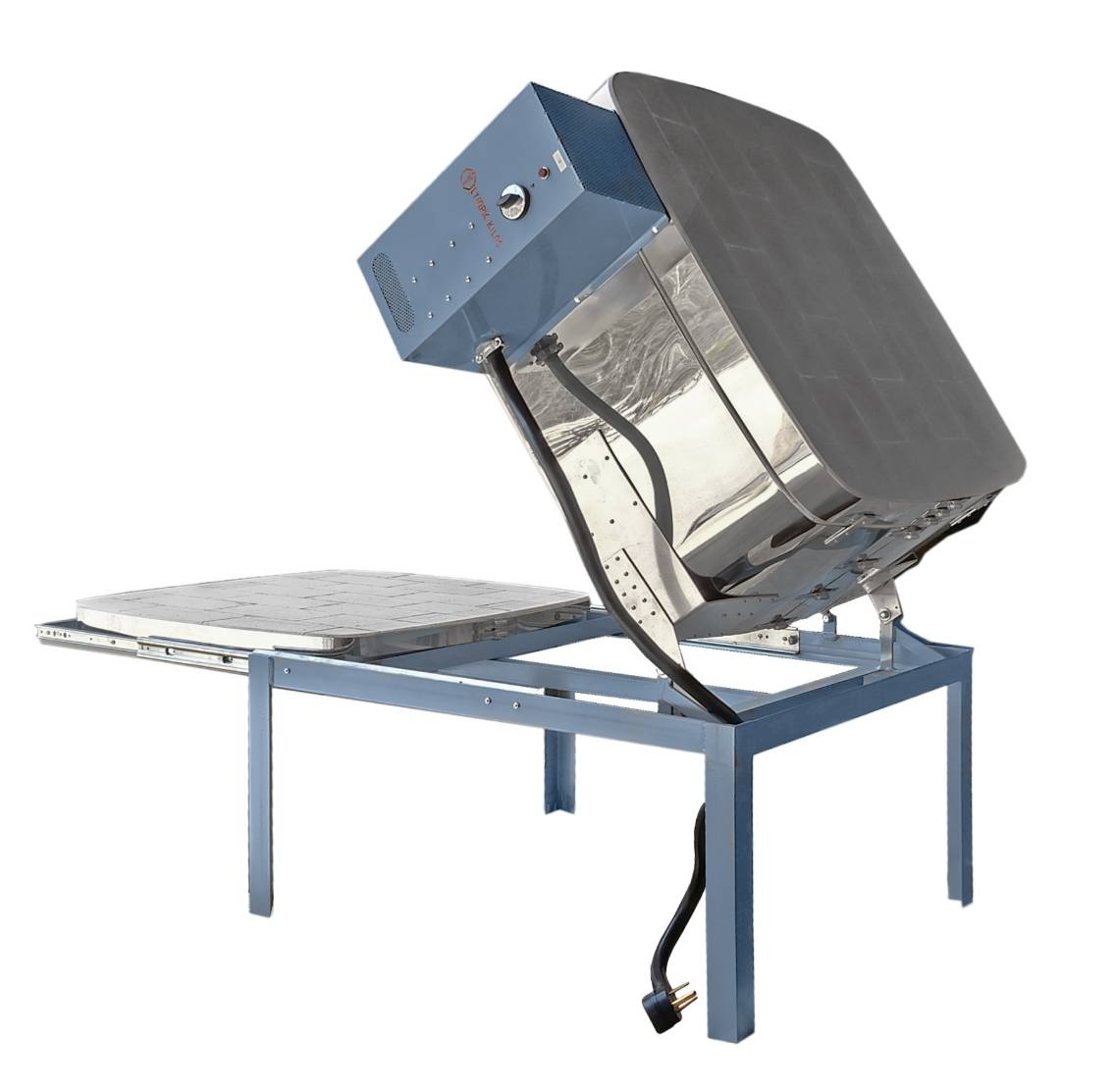

An Olympic Slider glass kiln: a clamshell design with a floor that slides out toward you, so you can load, rake and position glass without reaching into a hot chamber.
$4,169.00
Freight quoted upfront
Olympic 314 Slider Glass Kiln
$4,169.00
Skip to product information
Olympic 314 Slider Glass Kiln
$4,169.00
At a glance
| Interior | 25.0″ × 25.0″ W×D |
|---|---|
| Cubic feet | 4.88 |
| Power | 240V · Single · 45A @240V / 48A @208V |
| Controller | Bartlett KilnStar |
Key features
- Fires to 1,700°F
- 25 x 25 x 13.5 in interior (4.88 cu ft)
- Clamshell with sliding floor
- Bartlett KilnStar digital controller (Genesis touchscreen upgrade available)
- Lid element plus body elements, with an infinite switch to adjust lid heat
- Lid lift assist available as an option
- Stainless steel jacket and pilot light
What's included
- KilnStar digital controller
- Stand or frame
- Peephole plug(s) and instruction manual
- Furniture kit, vent and other options sold separately
Specifications
| Model | 314 Slider |
|---|---|
| Interior (W x D x H, in) | 25 x 25 x 13.5 |
| Capacity | 4.88 cu ft |
| Exterior with stand (in) | 39.5 x 47-62 x 43 |
| Max temperature | 1,700°F |
| Loading | Clamshell with sliding floor |
| Insulation | 3" |
| Lid lift assist | Optional |
| Voltage | 240V or 208V, single-phase |
| Amps | 45A @ 240V / 48A @ 208V |
| Watts | 10,800 |
| Olympic breaker spec | 60 A |
| Plug | NEMA 6-50 |
| Copper wire | #6 (#4 over 40 ft) |
| Est. ship weight | 475 lb |
| Controller | Bartlett KilnStar |
Electrical requirements
240V or 208V single-phase: Olympic specifies a 60 A breaker, NEMA 6-50, and #6 (#4 over 40 ft) copper wire. Rule of thumb: a breaker of about 125% of the kiln's draw — roughly 60A for this model at its highest-amperage voltage. Always confirm the breaker, wire and receptacle with your electrician.
Warranty
2-year limited manufacturer warranty. Elements, thermocouple and kiln furniture are not covered. Contact us for the full warranty terms.
Shipping, lead time & ordering
- Made to order in the USA and shipped direct from the manufacturer in Flowery Branch, GA. We confirm current lead time with you when you order.
- Ships by motor freight (LTL truck) — freight is quoted upfront, before you pay for it. Residential liftgate delivery is available.
- Questions? Call (737) 231-1880 or use Get a Quote. Try our Electrical Readiness Checker.
- See our Shipping Policy and Return Policy.
