KILN

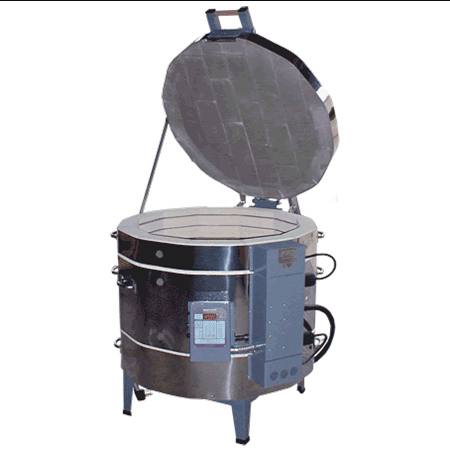

Olympic 2823HE Electric Kiln
A 28"-wide Olympic stackable electric kiln for serious studio and production work, built with Olympic's heat-shielded electrical box and balanced heating elements for even firing.
$3,989.00
Freight quoted upfront
Olympic 2823HE Electric Kiln
$3,989.00
Skip to product information
Olympic 2823HE Electric Kiln
$3,989.00
At a glance
| Size | X-Large |
|---|---|
| Interior | 28.25″ W×D |
| Cubic feet | 8.34 |
| Max cone | Cone 10 |
| Power | 240V · Single · 55A |
| Controller | Bartlett KilnStar |
Key features
- Fires to Cone 10 / 2350°F — cone 10 stoneware and porcelain
- Chamber: 28.25 x 22.5 in, 8.34 cu ft
- Controller: Bartlett KilnStar digital controller; upgrade to the Genesis touchscreen for more programs, delay start, preheat, cone offset and skip step
- Stainless steel jacket and pilot light
- 3" brick for better insulation and heat retention
- Stackable sections with Olympic's heat-shielded electrical box; optional lid-lift assist
What's included
- Olympic 2823HE kiln
- Metal stand
- Bartlett KilnStar digital controller
- Pilot light
- Furniture kit, vent and other accessories sold separately
Specifications
| Kiln model | 2823HE |
|---|---|
| Series | Olympic 28" Stackable |
| Inside dimensions (in) | 28.25 x 22.5 (width x height) |
| Capacity | 8.34 cu ft |
| Outside dimensions with stand/frame (in) | 42 x 53 x 42.5 |
| Max temperature | Cone 10 / 2350°F |
| Loading type | Top-loading |
| Brick thickness | 3" |
| Voltage | 240V or 208V, single-phase (3-phase available) |
| Amperage | 48A at 240V / 55A at 208V |
| 3-phase amperage | 32A at 240V / 36A at 208V |
| Wattage | 11,520W |
| Plug / connection | NEMA 6-50 / Direct wired |
| Breaker (Olympic spec) | 60/70A (240V/208V) |
| Copper wire size | #6, #4 if circuit longer than 40 ft |
| Controller | Bartlett KilnStar digital (Genesis touchscreen upgrade available) |
| Est. shipping weight | 385 lbs |
| Shipping method | Motor freight (LTL truck) — quoted upfront |
Electrical requirements
240V or 208V single-phase: 48A at 240V / 55A at 208V, 11,520W, NEMA 6-50 / Direct wired. Olympic specifies a 60/70A breaker (240V/208V) and #6, #4 if circuit longer than 40 ft copper wire. Also available wired 3-phase (32/36A, 40/50A breaker). Rule of thumb: a breaker of about 125% of the kiln's draw — roughly 70A for this model at its highest-amperage voltage. Always confirm the breaker, wire and receptacle with your electrician.
Warranty
1-year limited manufacturer warranty (Olympic warranty for cone 10 kilns). Elements, thermocouple and kiln furniture are not covered. Contact us for the full warranty terms.
Shipping, lead time & ordering
- Made to order in the USA and shipped direct from the manufacturer in Flowery Branch, GA. We confirm current lead time with you when you order.
- Ships by motor freight (LTL truck) — freight is quoted upfront, before you pay for it. Residential liftgate delivery is available.
- Questions? Call (737) 231-1880 or use Get a Quote. Try our Electrical Readiness Checker.
- See our Shipping Policy and Return Policy.
Parts for this kiln
Elements, thermocouples, and relays wear with use. We stock genuine manufacturer parts for your model — use the part finder if you're unsure which one you need.
