KILN

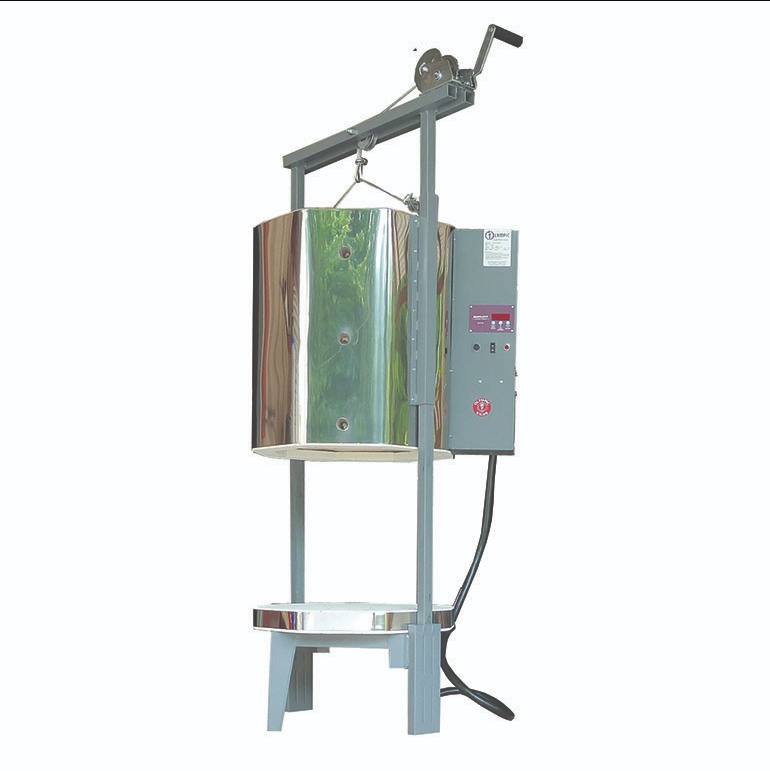

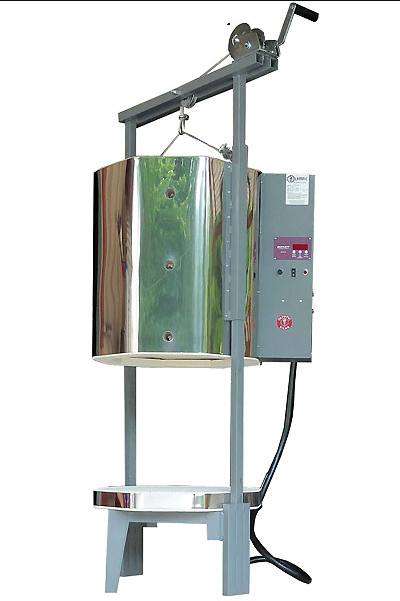

Olympic 1823E Raku E Electric Kiln
Olympic's electric TopHat design lifts the kiln body up and away from the floor so you can safely reach hot ware — ideal for raku, large single pieces and easy loading.
$2,829.00
Freight quoted upfront
Olympic 1823E Raku E Electric Kiln
$2,829.00
Skip to product information
Olympic 1823E Raku E Electric Kiln
$2,829.00
At a glance
| Size | Medium |
|---|---|
| Interior | 17.5″ W×D |
| Cubic feet | 3.29 |
| Max cone | Cone 8 |
| Power | 240V · Single · 30A |
| Controller | Bartlett KilnStar |
Key features
- Fires to Cone 8 / 2300°F — mid-range stoneware
- Chamber: 17.5 x 22.5 in, 3.29 cu ft
- Controller: Bartlett KilnStar digital controller; upgrade to the Genesis touchscreen for more programs, delay start, preheat, cone offset and skip step
- Stainless steel jacket and pilot light
What's included
- Olympic 1823E Raku E kiln
- Metal stand
- Bartlett KilnStar digital controller
- Pilot light
- Furniture kit, vent and other accessories sold separately
Specifications
| Kiln model | 1823E Raku E |
|---|---|
| Series | Olympic Electric Raku & TopHat |
| Inside dimensions (in) | 17.5 x 22.5 (width x height) |
| Capacity | 3.29 cu ft |
| Outside dimensions with stand/frame (in) | 39 x 72 |
| Max temperature | Cone 8 / 2300°F |
| Loading type | Top-hat (body lifts off base) |
| Voltage | 240V or 208V, single-phase |
| Amperage | 26.25A at 240V / 30A at 208V |
| Wattage | 6,300W |
| Plug / connection | NEMA 6-50 |
| Breaker (Olympic spec) | 40A |
| Copper wire size | #8, #6 if circuit longer than 40 ft |
| Controller | Bartlett KilnStar digital (Genesis touchscreen upgrade available) |
| Est. shipping weight | 285 lbs |
| Shipping method | Motor freight (LTL truck) — quoted upfront |
Electrical requirements
240V or 208V single-phase: 26.25A at 240V / 30A at 208V, 6,300W, NEMA 6-50. Olympic specifies a 40A breaker and #8, #6 if circuit longer than 40 ft copper wire. Rule of thumb: a breaker of about 125% of the kiln's draw — roughly 40A for this model at its highest-amperage voltage. Always confirm the breaker, wire and receptacle with your electrician.
Warranty
2-year limited manufacturer warranty. Elements, thermocouple and kiln furniture are not covered. Contact us for the full warranty terms.
Shipping, lead time & ordering
- Made to order in the USA and shipped direct from the manufacturer in Flowery Branch, GA. We confirm current lead time with you when you order.
- Ships by motor freight (LTL truck) — freight is quoted upfront, before you pay for it. Residential liftgate delivery is available.
- Questions? Call (737) 231-1880 or use Get a Quote. Try our Electrical Readiness Checker.
- See our Shipping Policy and Return Policy.
Parts for this kiln
Elements, thermocouples, and relays wear with use. We stock genuine manufacturer parts for your model — use the part finder if you're unsure which one you need.
