KILN

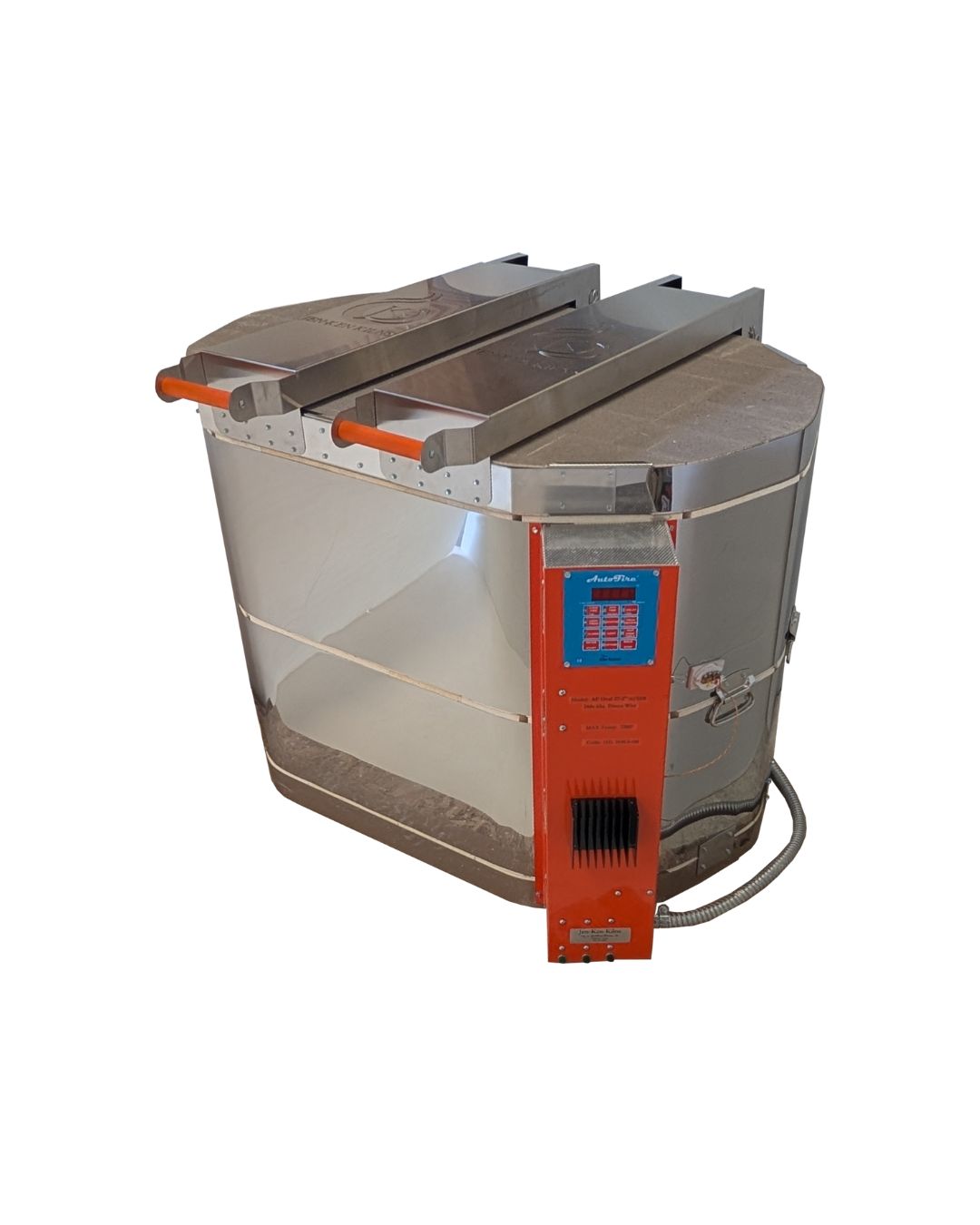

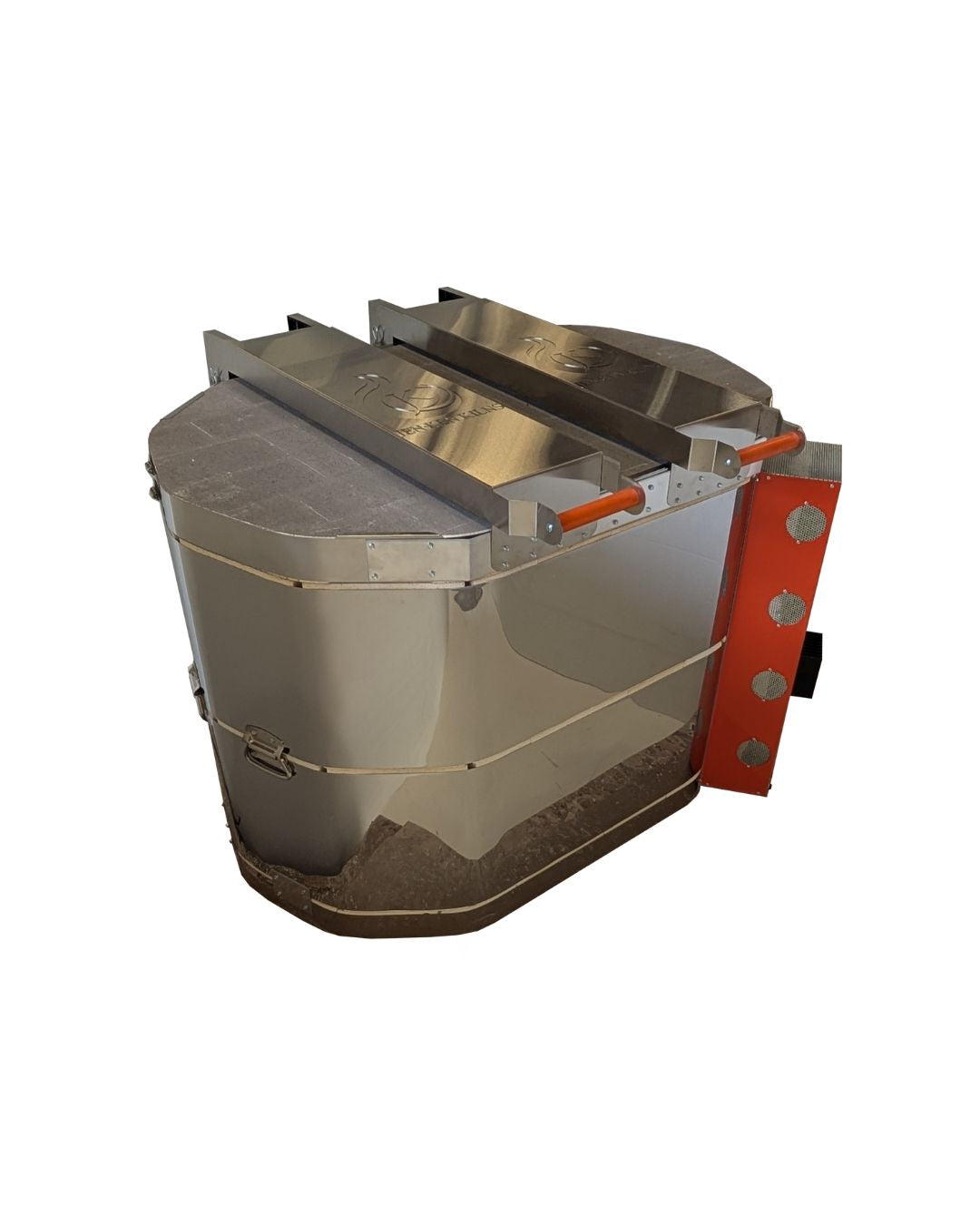

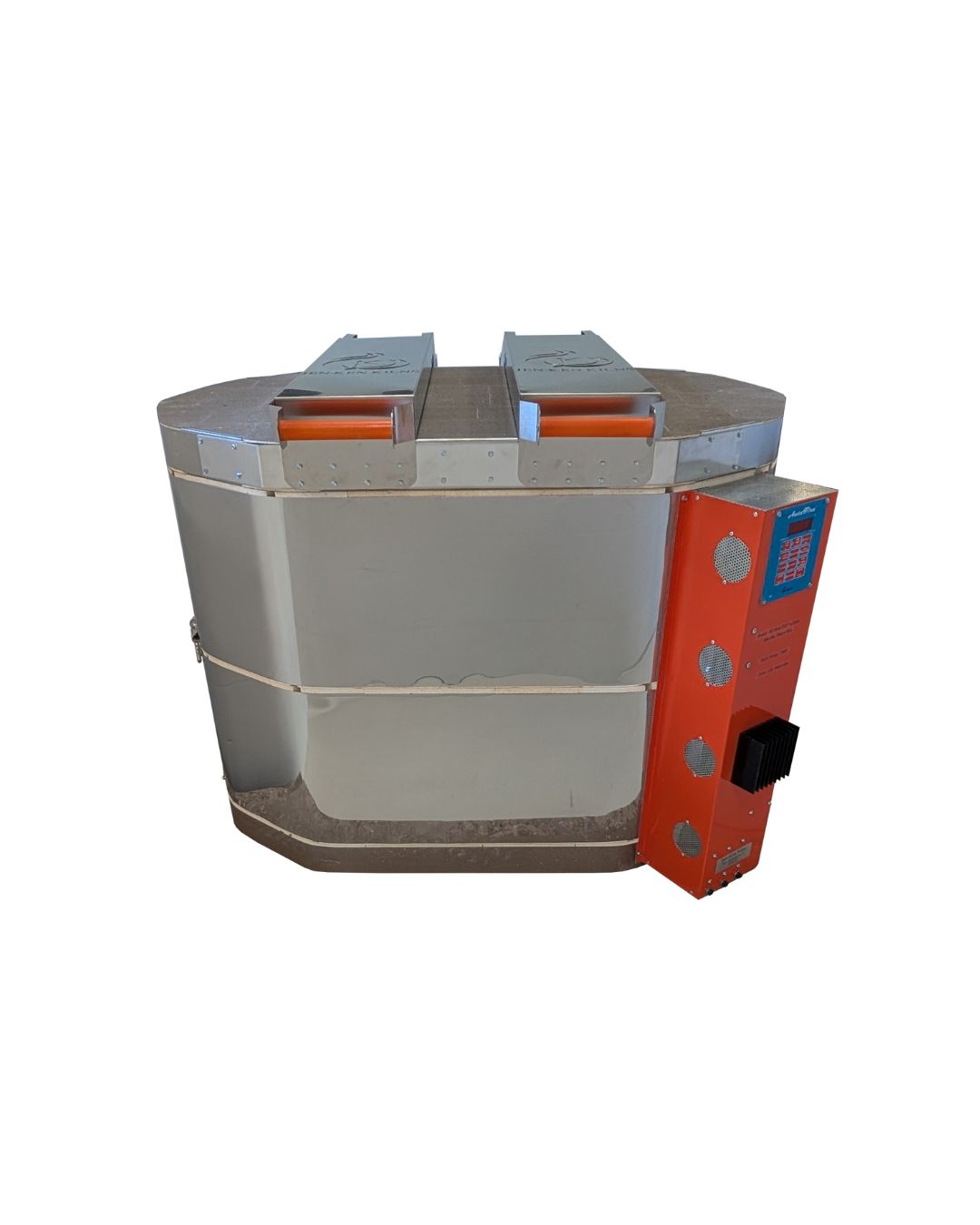

Jen-Ken Oval 27 3″ Brick Electric Kiln
Offering the space of two kilns in one, it's ideal for schools, paint-your-own pottery studios, and commercial environments that need to fire large volumes.
$5,414.40Regular price $6,768.00
Save 20%
Freight quoted upfront
Get a Quote Have a Question? →
Recommended add-ons
-
Furniture Kit for Oval 27 Kilns
$895.00
-
Oval Kiln Stand with Locking Casters
$575.00
-
Lid Switch (Kill Switch)
$100.00
Jen-Ken Oval 27 3″ Brick Electric Kiln
Sale price
$5,414.40
Save 20%
Regular price $6,768.00
Skip to product information
Jen-Ken Oval 27 3″ Brick Electric Kiln
Sale price
$5,414.40
Save 20%
Regular price $6,768.00
At a glance
| Size | X-Large |
|---|---|
| Interior | 39.0″ × 27.0″ W×D |
| Cubic feet | 14.0 |
| Max cone | Cone 6 |
| Power | 240V · Single · 55A |

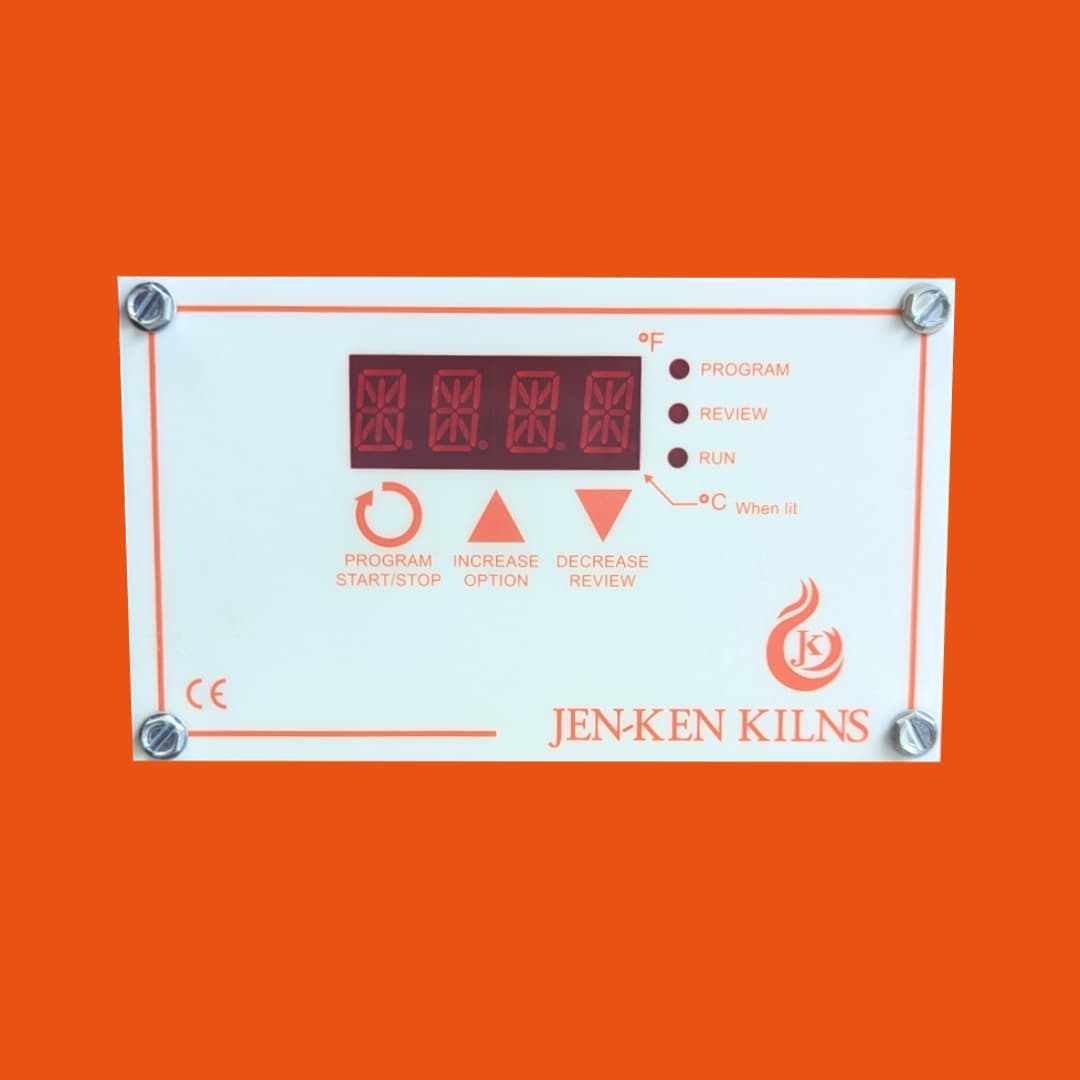

| Controller | Orton AF3P 3-Button Controller |
Lid lifters (included) significantly reduce lid weight, making it easier to open and close.
For optimal low-fire performance, choose the 55A direct-wire version.
The 65A direct-wire version is required for cone 5-6 high-fire firings.
Key features
- Best for: Low-fire ceramics; designed for firings up to cone 04–06
- Great for Mid-Range Production Studios/Classrooms: Ideal for high-volume paint-your-own pottery studios, schools, and other environments needing frequent and efficient firings.
- High capacity: Massive interior space—it's like two kilns in one!

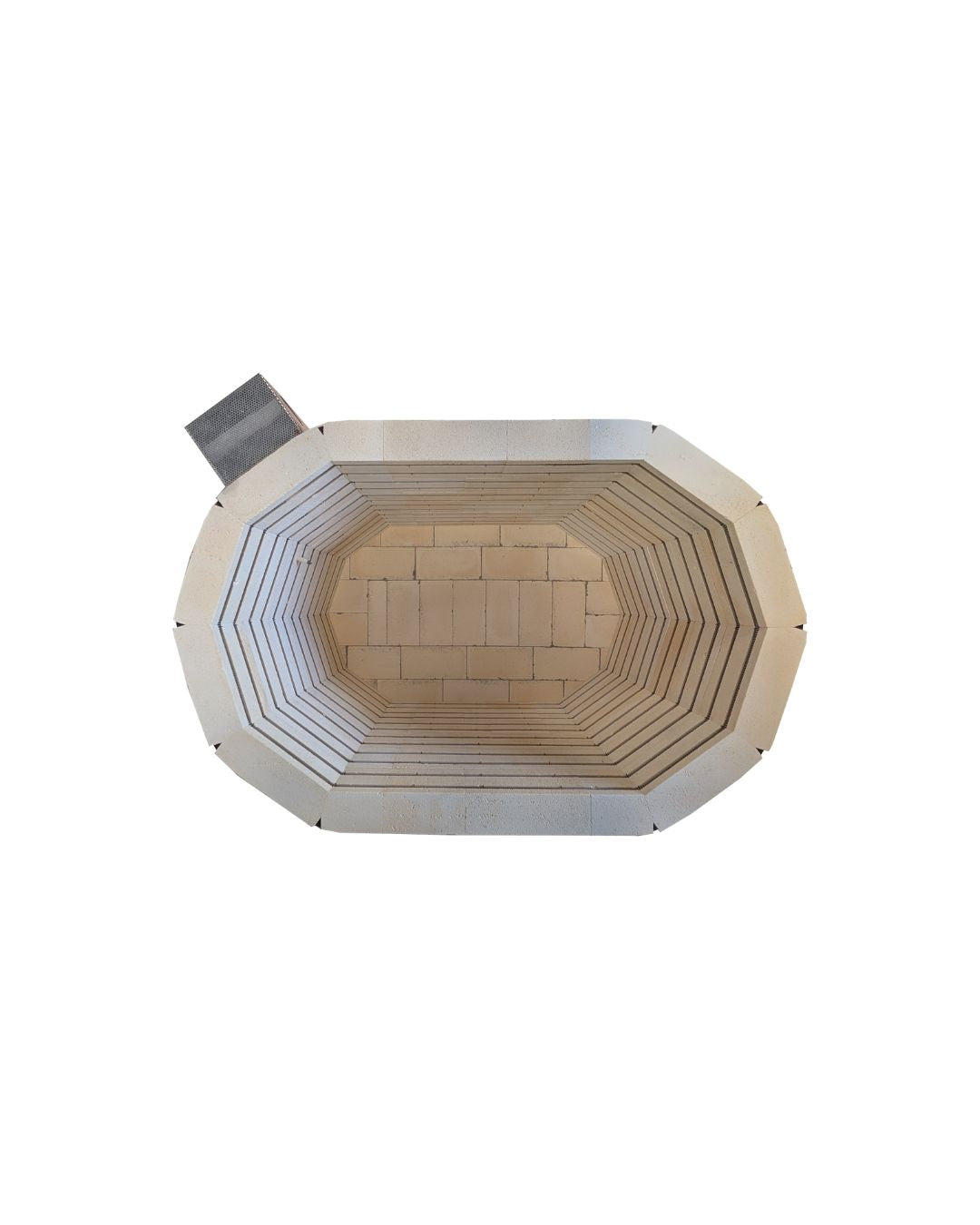

- 3" Brick High-Fire Brick: This kiln body, made of 3” brick offers 20% more insulation than standard bricks, enhancing energy efficiency and maximizing heat retention during firings.

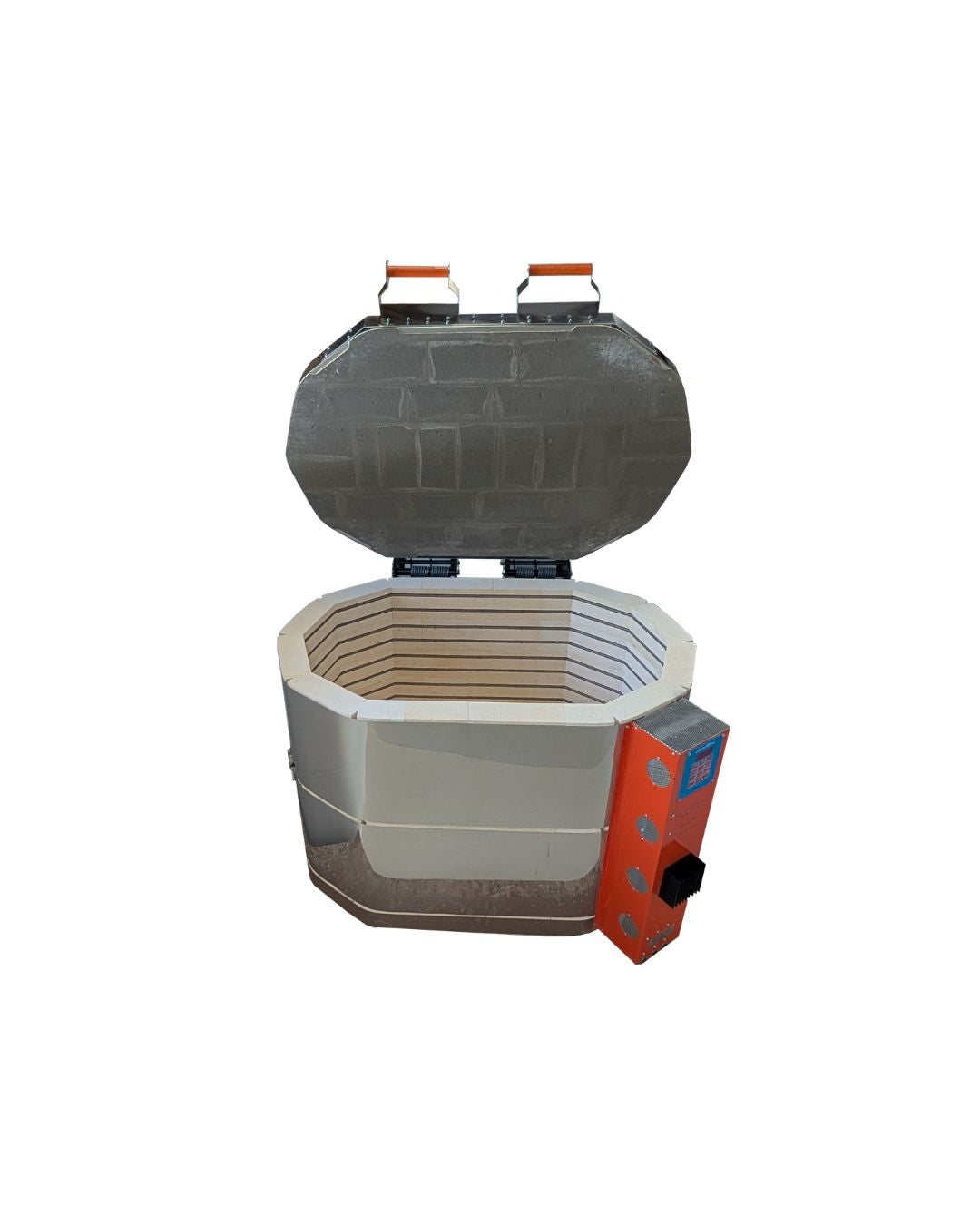

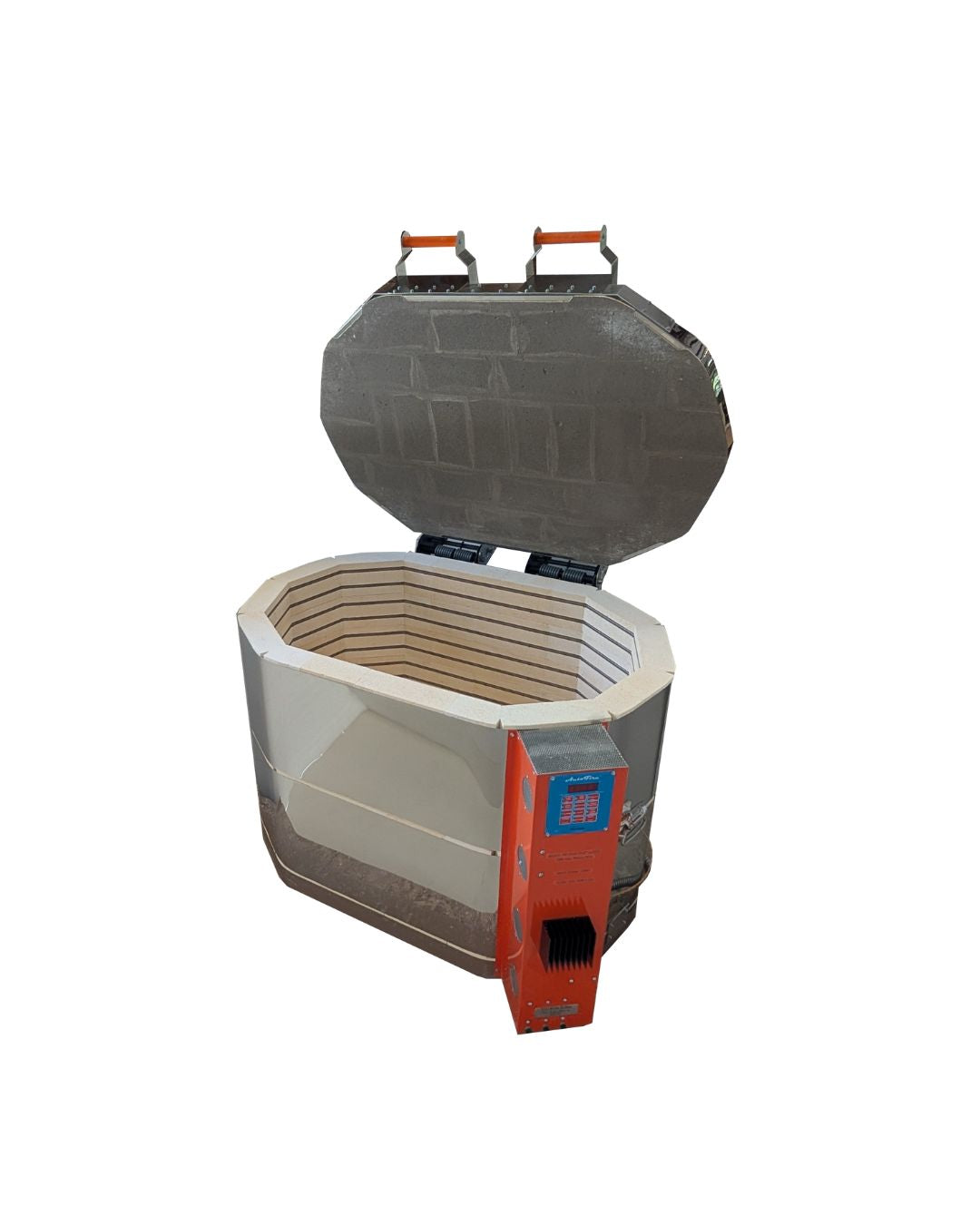

- Lid Lifters Included: Lid lifters significantly reduce the weight of the lid, making it easier to open and close.
- Cone 5-6 Upgrade: For firings up to cone 5-6, a 65A DW upgrade is available
What's included
- Orton AF3P 3-Button Controller
- Kiln Stand
- Instruction Manual
- 2-Year Limited Warranty for Kiln and Controller
Specifications
| Kiln model | AF Oval 27" 3" |
|---|---|
| Interior dimensions | 39" x 24" x 27" |
| Capacity | 14 cu ft |
| Element placement | Side-fired |
| Max temperature | 2,250°F |
| Voltage | 240V |
| Amperage | 55A |
| Wattage | 13,200W |
| Receptacle | Direct Wire |
| Breaker | 70A |
| Circuit wire gauge | 4 |
| Kiln weight | 425 lbs |
| Shipping weight (average) | 500 lbs |
| Controller | Orton AF3P 3-Button Controller |
| Brick thickness | 3" brick walls and lid |
| Loading type | Top-loading (lid lifters) |
| Shipping method | Motor freight — quoted upfront |
| Firing range | Low-fire (cone 04–06) on the 55A direct-wire version; cone 5–6 requires the 65A direct-wire version (ask us). |
Electrical requirements
240V single-phase: 55A draw, 13,200W, breaker 70A, 4-gauge wire, receptacle Direct Wire. Have a licensed electrician confirm your circuit, breaker and receptacle before the kiln arrives.
Warranty
2-year limited manufacturer warranty covering both the kiln and the controller.
Shipping, lead time & ordering
- Made to order and shipped direct from the manufacturer. We confirm current lead time with you when you order.
- Ships by motor freight (LTL truck) — freight is quoted upfront, before you pay for it. Residential liftgate delivery is available.
- Not sure about size, voltage, or your outlet? Talk to us or call (737) 231-1880 before you order, and try our Electrical Readiness Checker.
- See our Shipping Policy and Return Policy.
Frequently asked questions
What electrical service do I need?
Each model's voltage, amperage, breaker, wire gauge and receptacle or plug are listed in the Specifications and Electrical requirements above. Check your setup with our Electrical Readiness Checker, and have a licensed electrician confirm your circuit before the kiln arrives.
What's the difference between standard and 3-inch brick?
Jen-Ken's 3" brick offers about 20% more insulation than standard brick, for better energy efficiency and heat retention, and is suited to frequent, production-level firing. This model is built with 3" brick walls and lid.
How is freight quoted?
We quote freight upfront, before you pay for it, based on your delivery address and whether you need residential liftgate delivery. Shipping is not included in the kiln price. See our Shipping Policy.
What's the lead time?
Jen-Ken kilns are made to order and ship direct from the manufacturer. We confirm the current lead time with you when you order.
Can I return it?
Eligible items can be returned within 90 days of delivery if they're unused, in original packaging, and haven't been wired in or fired. Custom or built-to-order units aren't returnable, and the customer covers return freight. Contact us for a return authorization before shipping anything back. Full details are in our Return Policy.
What warranty does it have?
Jen-Ken includes a 2-year limited warranty covering both the kiln and the controller. If something develops a fault, contact us and we'll coordinate the warranty claim.
Can I add a controller upgrade, furniture kit or vent?
Jen-Ken offers options such as upgraded controllers, furniture kits, stands and vents. Ask us or call (737) 231-1880 and we'll quote the options that fit your kiln.
Parts for this kiln
Elements, thermocouples, and relays wear with use. We stock genuine manufacturer parts for your model — use the part finder if you're unsure which one you need.
