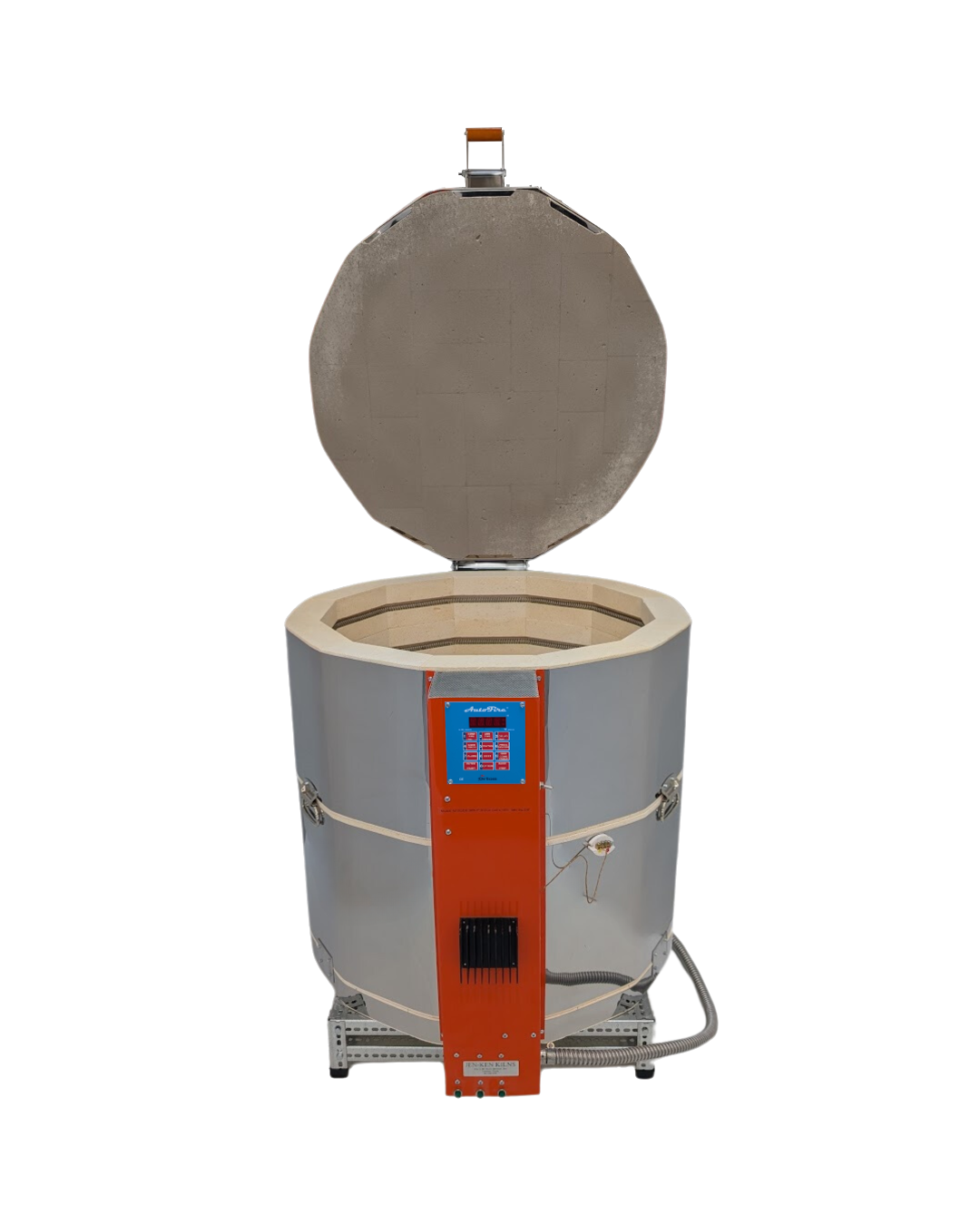

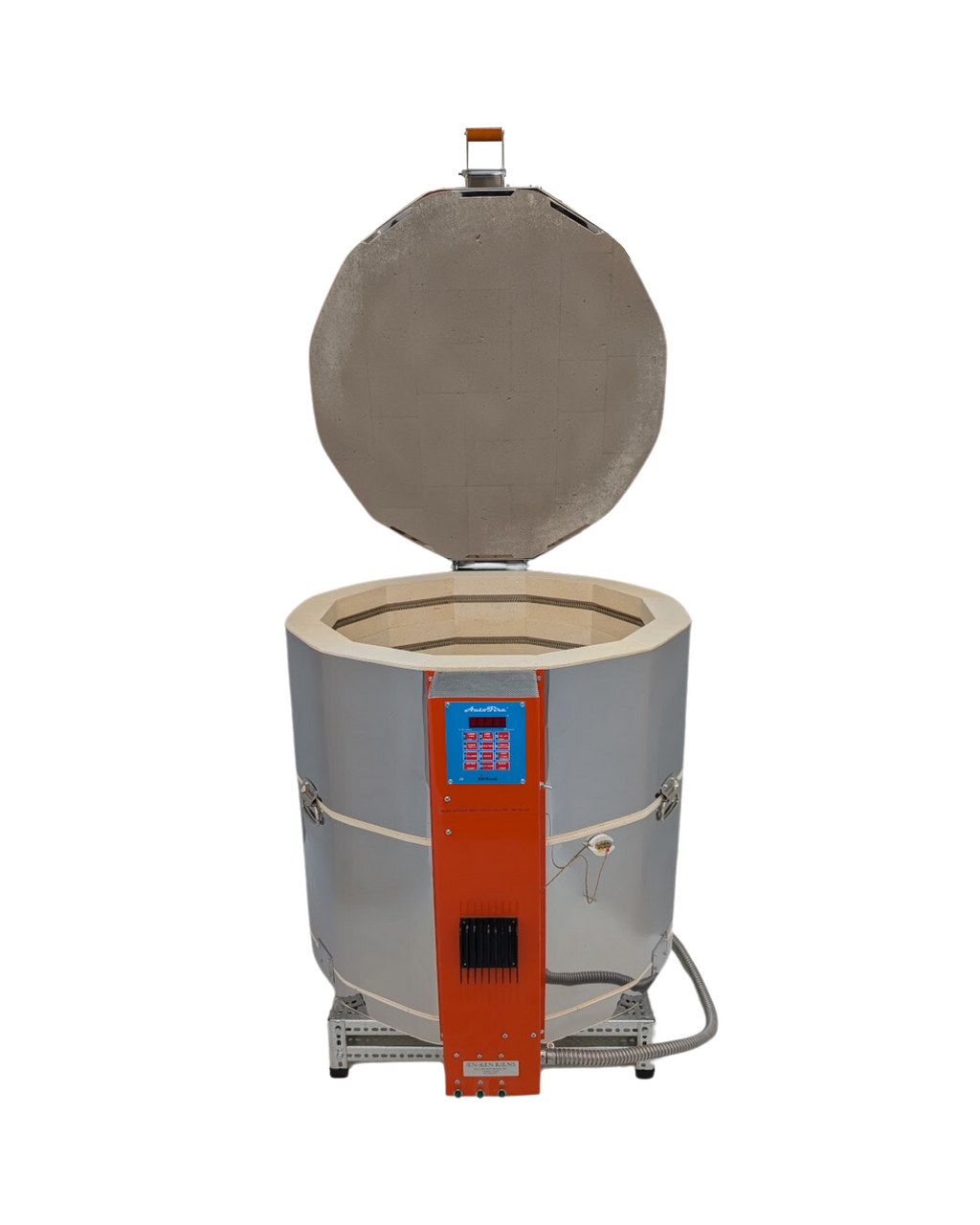

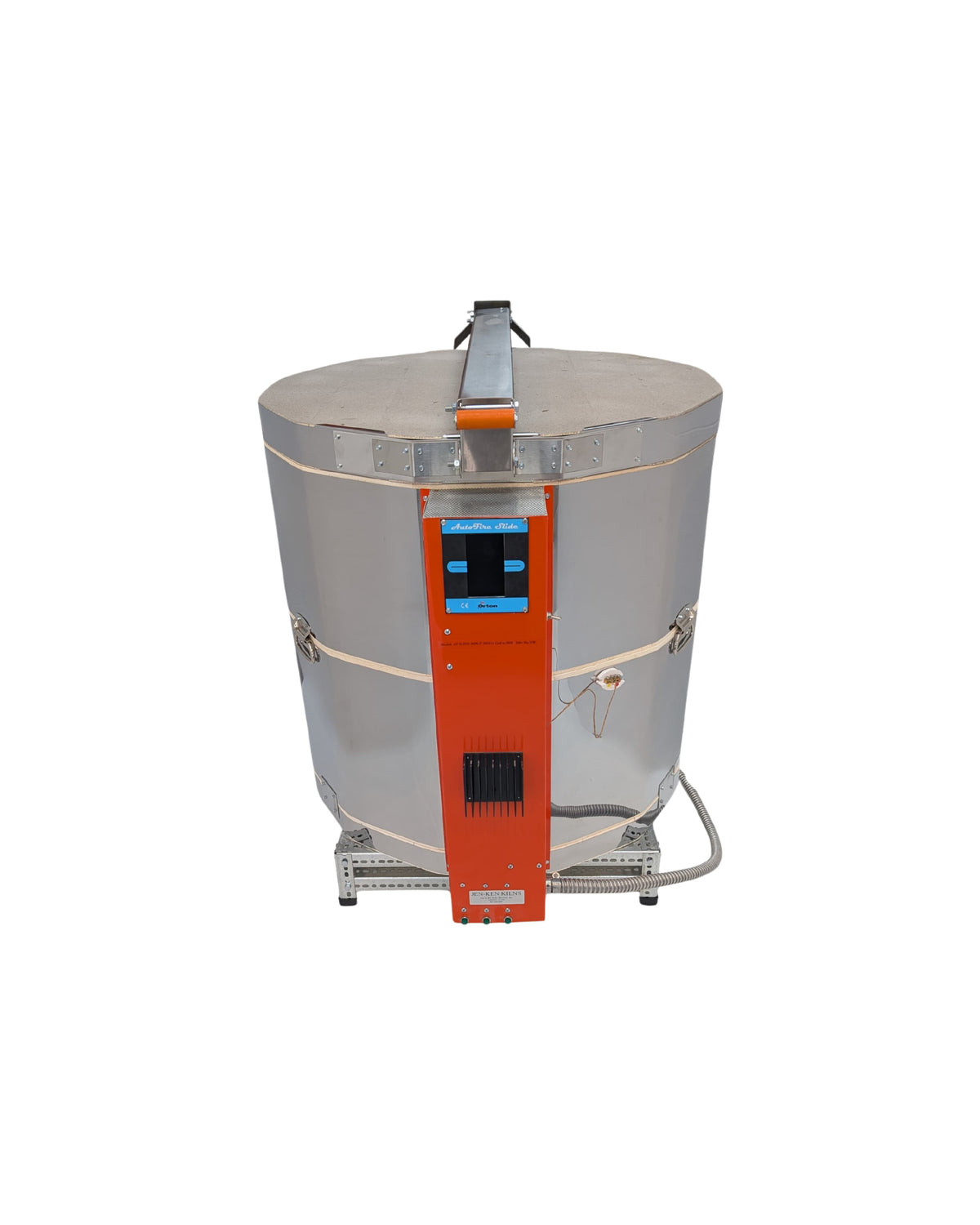

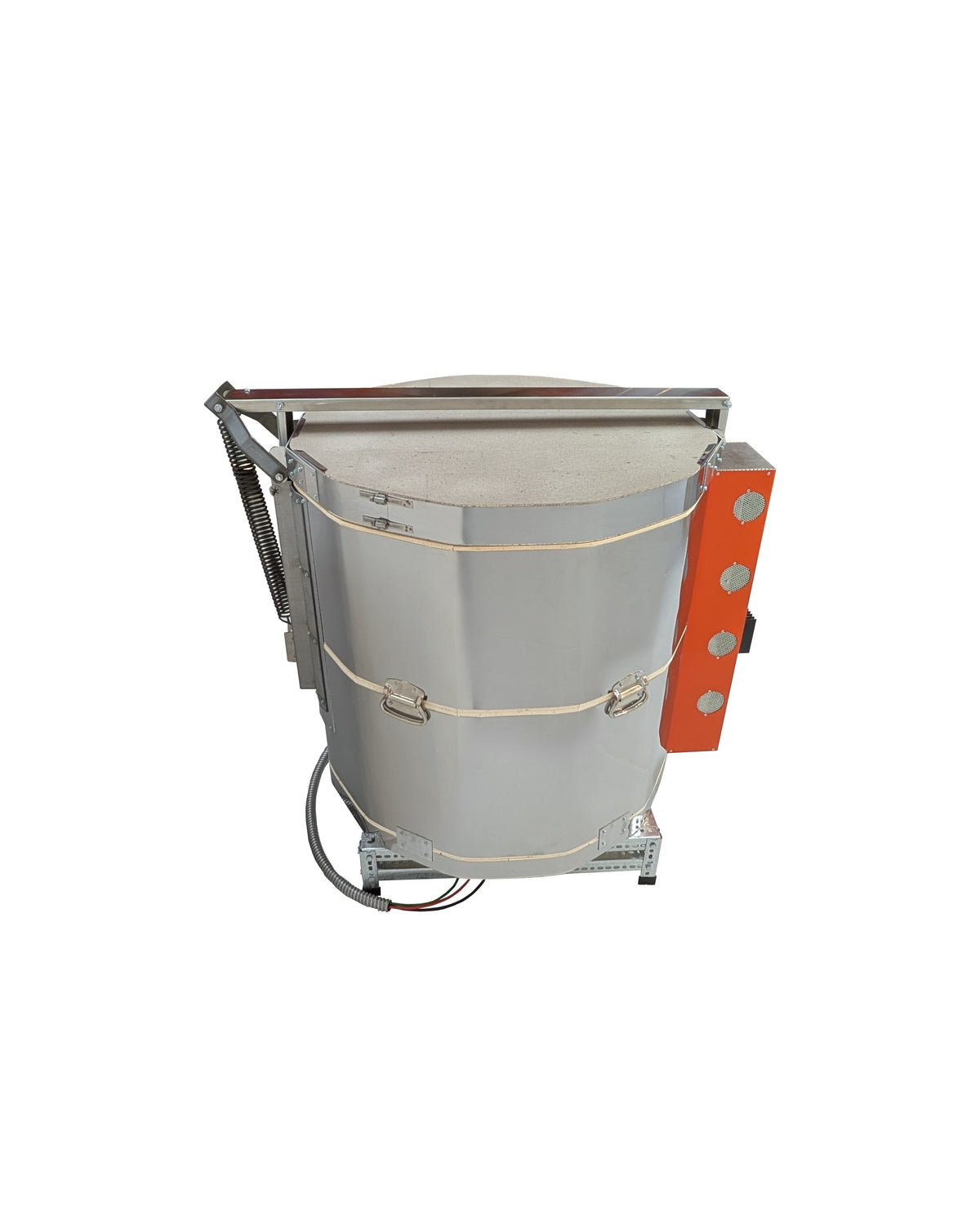

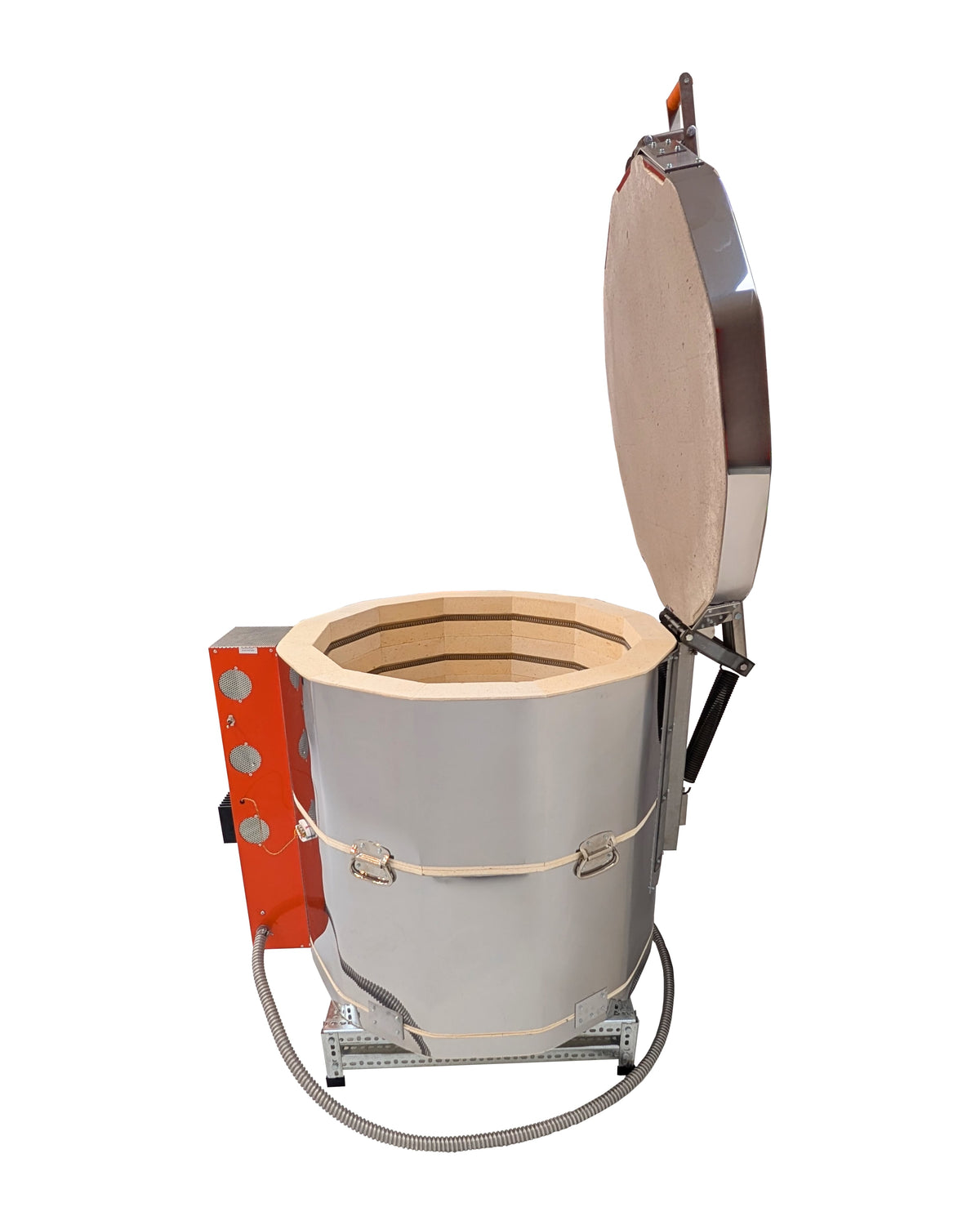

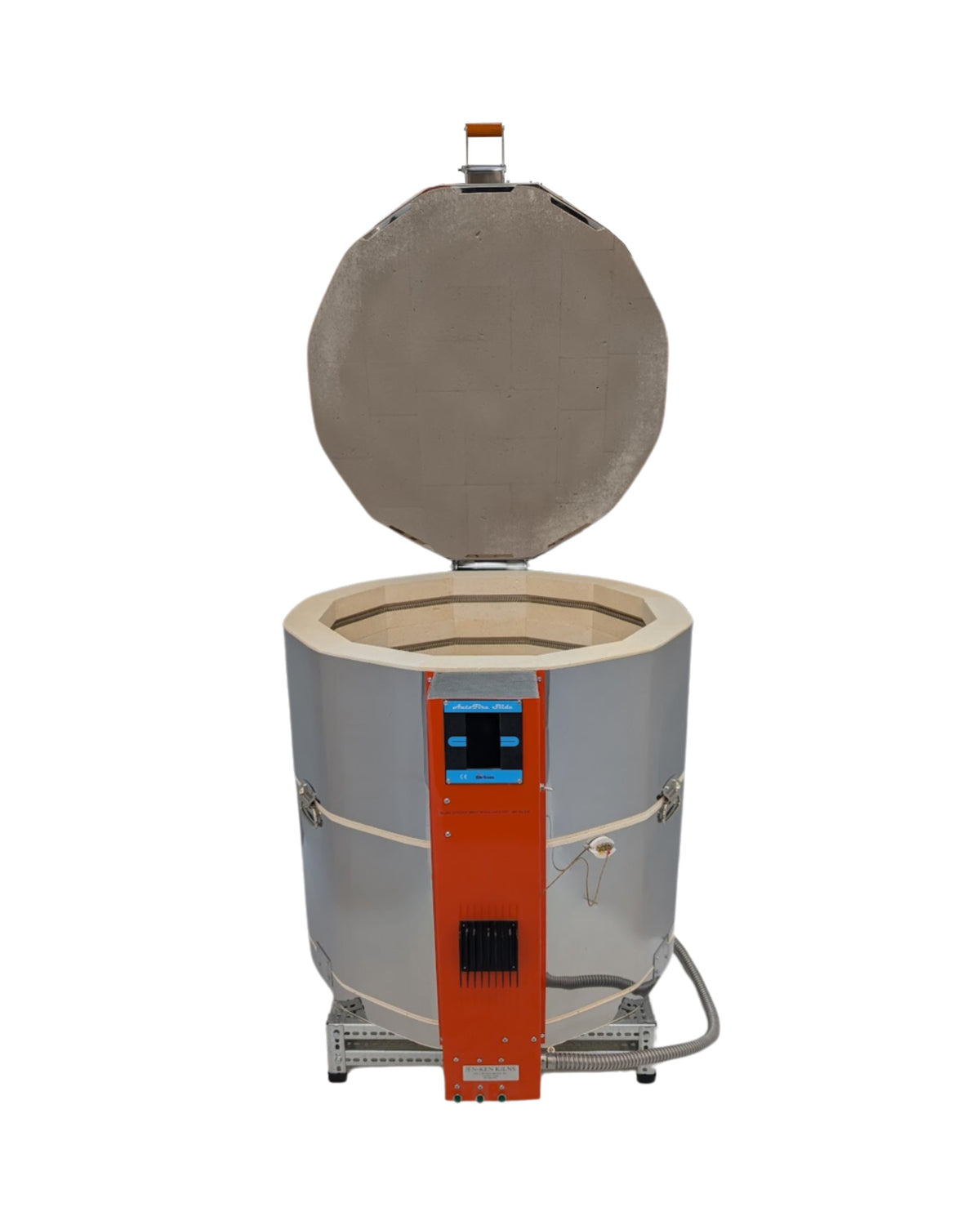

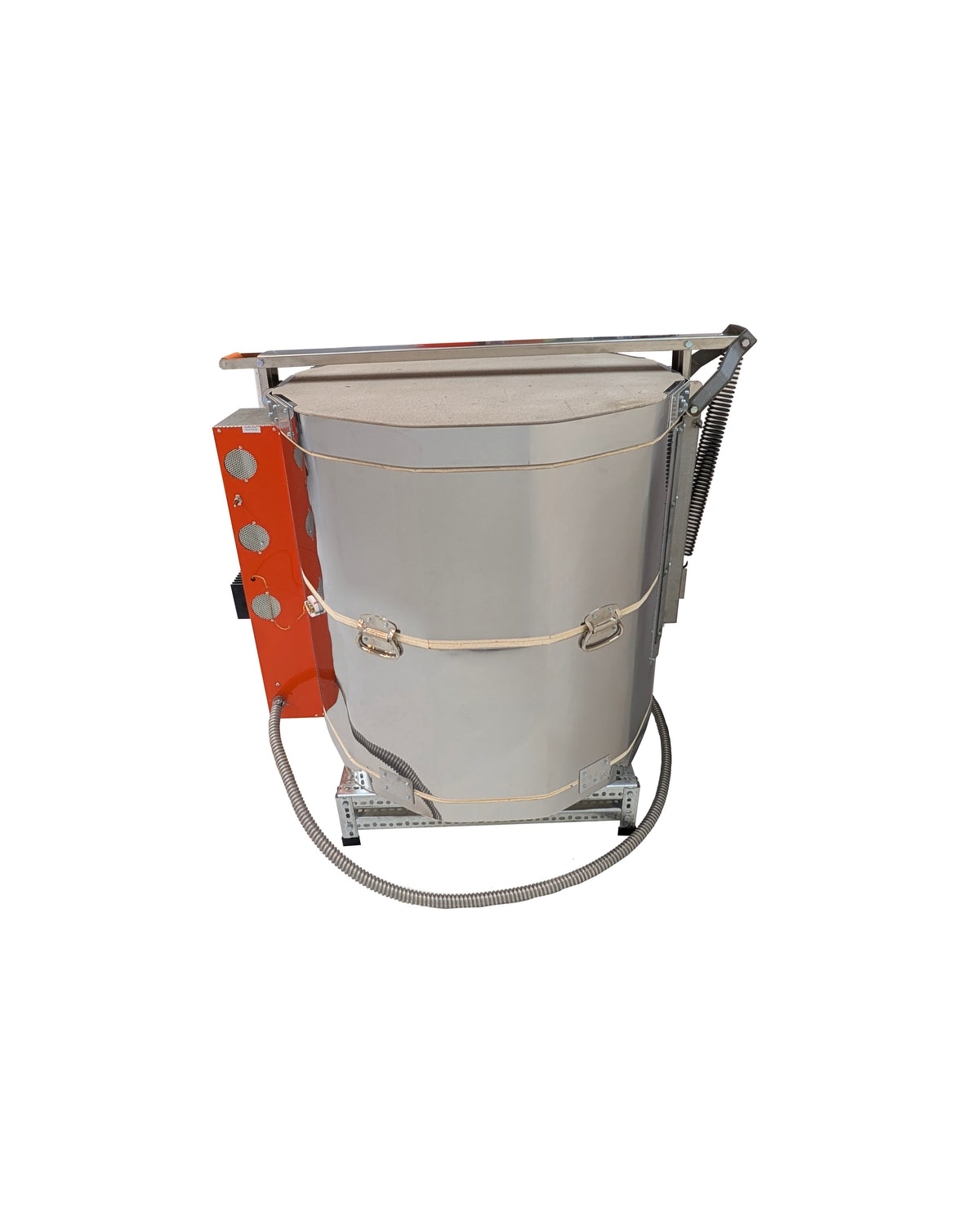

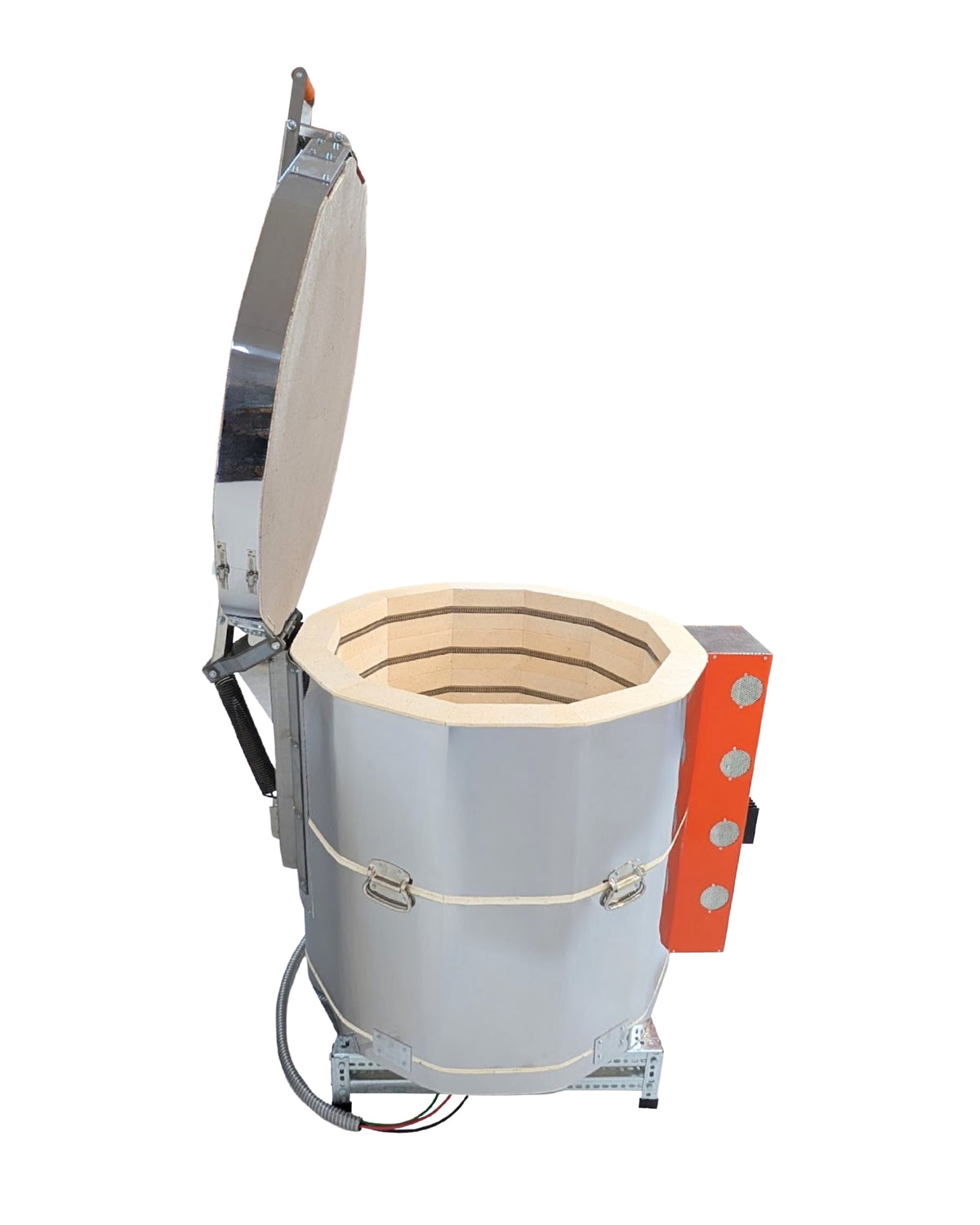

Jen-Ken Mega Coil 2829 3″ Electric Kiln
The Jen-Ken Mega Coil Kiln Line for pottery and ceramics can do it all! Designed with the busy production studio or artist in mind, these Mega Coil kilns offer unmatched ease of operation and maintenance.
$4,640.80Regular price $5,801.00
Save 20%
Freight quoted upfront
Get a Quote Have a Question? →
Recommended add-ons
-
Furniture Kit for 2829 Kilns
$700.00
-
Steel Kiln Stand with Locking Casters for 28" Kilns
$350.00
-
Orton VentMaster Kiln Vent System
$785.00
-
Lid Switch (Kill Switch)
$100.00
Jen-Ken Mega Coil 2829 3″ Electric Kiln
Sale price
$4,640.80
Save 20%
Regular price $5,801.00
Skip to product information
Jen-Ken Mega Coil 2829 3″ Electric Kiln
Sale price
$4,640.80
Save 20%
Regular price $5,801.00
At a glance
| Size | X-Large |
|---|---|
| Interior | 28.0″ × 29.0″ W×D |
| Cubic feet | 10.33 |
| Max cone | Cone 8 |
| Power | 240V · Single · 55A |

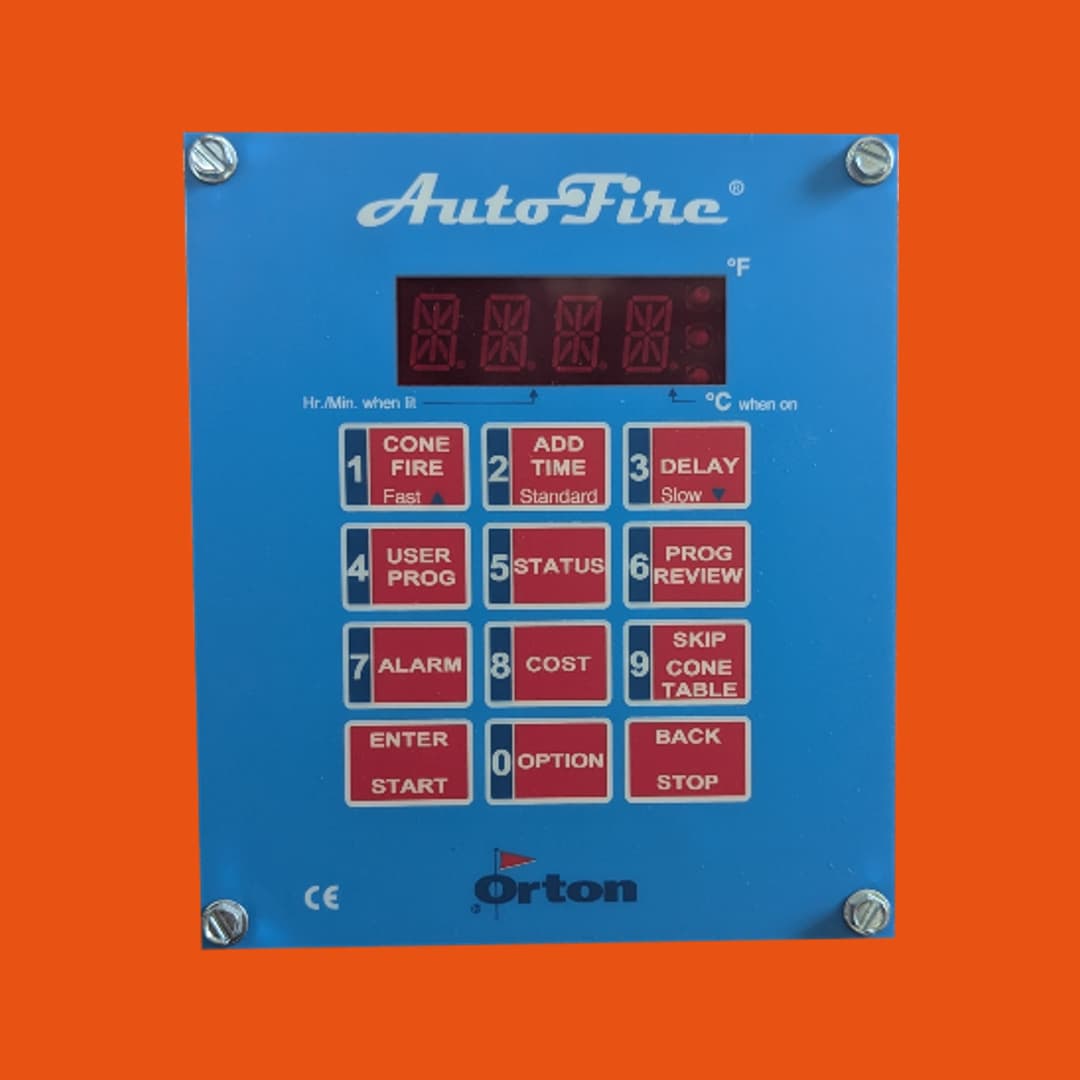

| Controller | Orton AutoFire 12-Key Controller |
Jen-Ken starts with its traditional 3" Brick Kiln by adding one super heavy-gauge Mega Coil to each full brick.
In just about 10 minutes, you can effortlessly change a coil on your own, keeping your creative process uninterrupted. This design ensures minimal downtime – no waiting for repairmen! Plus, if there's ever a controller issue that can’t be resolved immediately, you can simply package it up and send it back to the Jen-Ken factory for expert servicing.

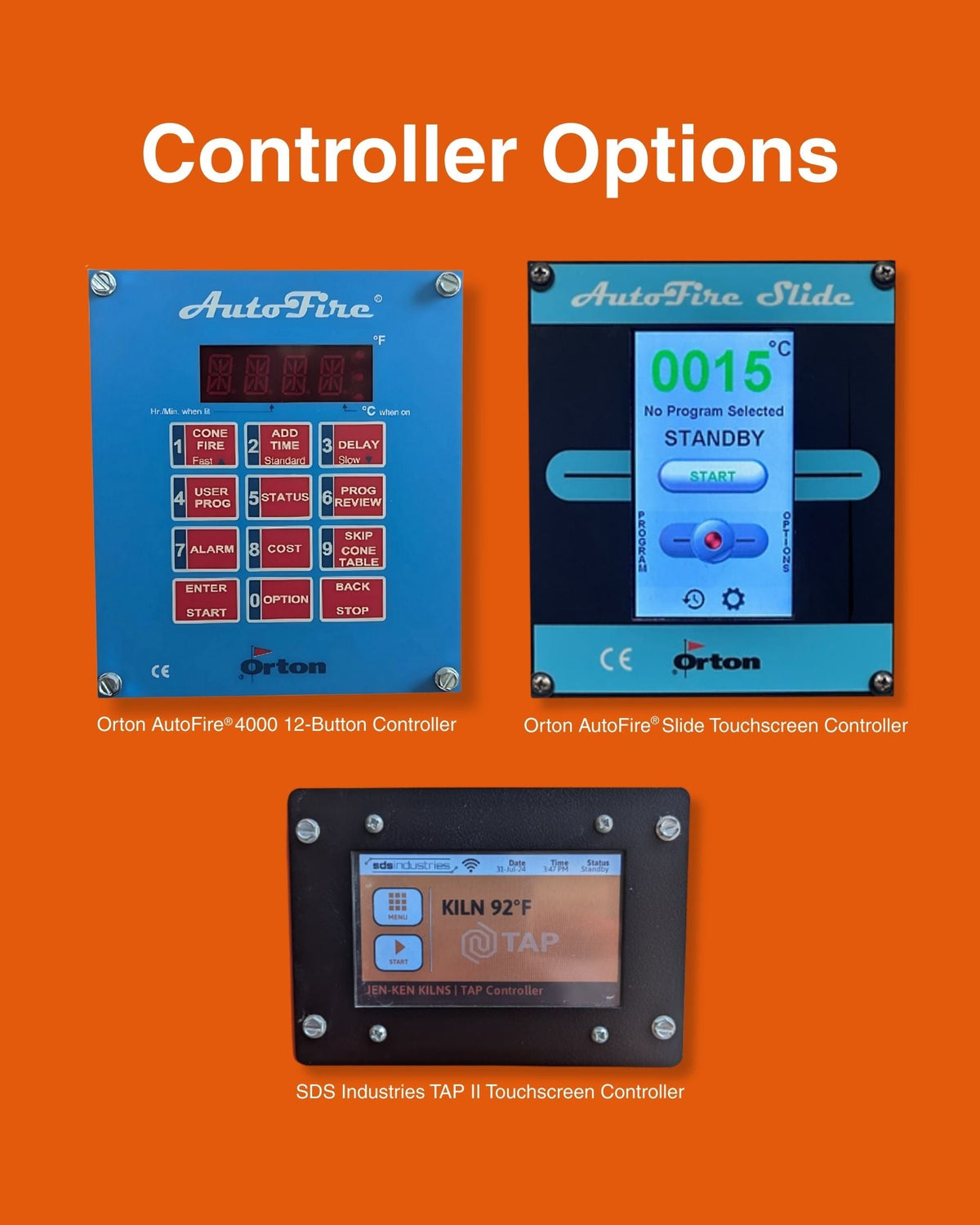

Equipped with the renowned Orton AutoFire 12-button controller with 25 blank user programs as standard, precise temperature control ensures optimal firing conditions for every project. With the option to upgrade to the AutoFire Slide or the TAP II Touchscreen Controller, you’ll gain even more features and ease of programming. Solid-state relays included.
Key features
- Interior: 28" x 29" (10.33 cu ft)
- Max temperature: 2,300°F
- Controller: Orton AutoFire 12-Key Controller
- 3" brick: about 20% more insulation than standard brick
What's included
- Orton AutoFire 12-Key Controller
- Lid Lifter
- Kiln Stand
- Solid-State Relays
- Instruction Manual
- 2-Year Limited Warranty for Kiln and Controller
Specifications
| Kiln model | AF 2829 3" LL |
|---|---|
| Interior dimensions | 28" x 29" |
| Capacity | 10.33 cu ft |
| Element placement | Side-fired |
| Max temperature | 2,300°F |
| Voltage | 240V |
| Amperage | 55A |
| Wattage | 13,200W |
| Receptacle | 6-50R or Direct Wire |
| Breaker | 70A |
| Circuit wire gauge | 4 |
| Kiln weight | 375 lbs |
| Shipping weight (average) | 425 lbs |
| Controller | Orton AutoFire 12-Key Controller |
| Brick thickness | 3" brick walls and lid |
| Loading type | Top-loading (lid lifters) |
| Shipping method | Motor freight — quoted upfront |
Electrical requirements
240V single-phase: 55A draw, 13,200W, breaker 70A, 4-gauge wire, receptacle 6-50R or Direct Wire. Have a licensed electrician confirm your circuit, breaker and receptacle before the kiln arrives.
Warranty
2-year limited manufacturer warranty covering both the kiln and the controller.
Shipping, lead time & ordering
- Made to order and shipped direct from the manufacturer. We confirm current lead time with you when you order.
- Ships by motor freight (LTL truck) — freight is quoted upfront, before you pay for it. Residential liftgate delivery is available.
- Not sure about size, voltage, or your outlet? Talk to us or call (737) 231-1880 before you order, and try our Electrical Readiness Checker.
- See our Shipping Policy and Return Policy.
Frequently asked questions
What electrical service do I need?
Each model's voltage, amperage, breaker, wire gauge and receptacle or plug are listed in the Specifications and Electrical requirements above. Check your setup with our Electrical Readiness Checker, and have a licensed electrician confirm your circuit before the kiln arrives.
What's the difference between standard and 3-inch brick?
Jen-Ken's 3" brick offers about 20% more insulation than standard brick, for better energy efficiency and heat retention, and is suited to frequent, production-level firing. This model is built with 3" brick walls and lid.
How is freight quoted?
We quote freight upfront, before you pay for it, based on your delivery address and whether you need residential liftgate delivery. Shipping is not included in the kiln price. See our Shipping Policy.
What's the lead time?
Jen-Ken kilns are made to order and ship direct from the manufacturer. We confirm the current lead time with you when you order.
Can I return it?
Eligible items can be returned within 90 days of delivery if they're unused, in original packaging, and haven't been wired in or fired. Custom or built-to-order units aren't returnable, and the customer covers return freight. Contact us for a return authorization before shipping anything back. Full details are in our Return Policy.
What warranty does it have?
Jen-Ken includes a 2-year limited warranty covering both the kiln and the controller. If something develops a fault, contact us and we'll coordinate the warranty claim.
Can I add a controller upgrade, furniture kit or vent?
Jen-Ken offers options such as upgraded controllers, furniture kits, stands and vents. Ask us or call (737) 231-1880 and we'll quote the options that fit your kiln.
Parts for this kiln
Elements, thermocouples, and relays wear with use. We stock genuine manufacturer parts for your model — use the part finder if you're unsure which one you need.
