KILN

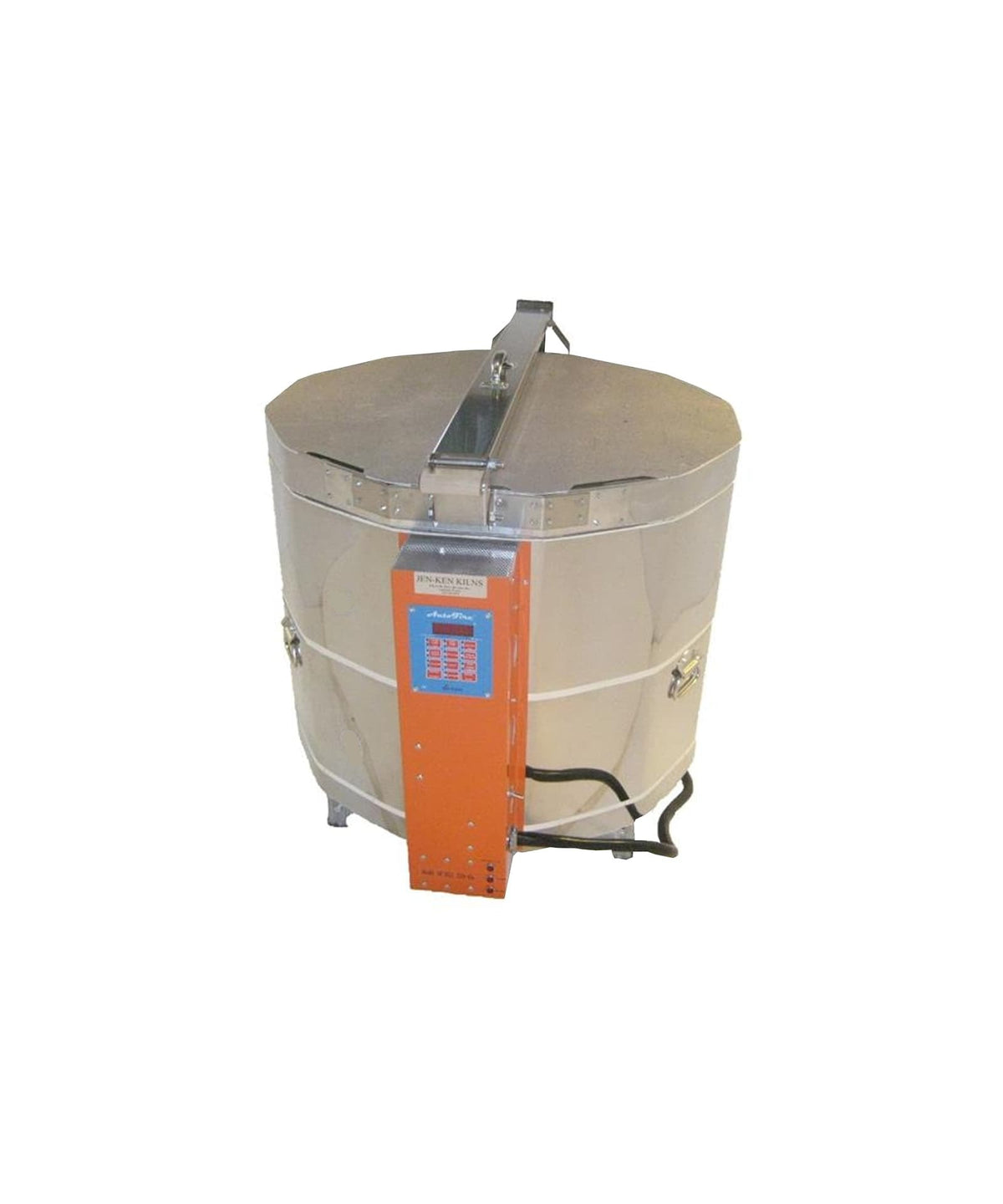

Jen-Ken AF3C 2822 3" Brick Electric Kiln
The AF3C 2822 3" is essentially the 2422 3" in a larger size, built for low-fire ceramics up to cone 6 and high-fire work up to cone 8 (2,300°F).
$3,714.40Regular price $4,643.00
Save 20%
Freight quoted upfront
Get a Quote Have a Question? →
Recommended add-ons
-

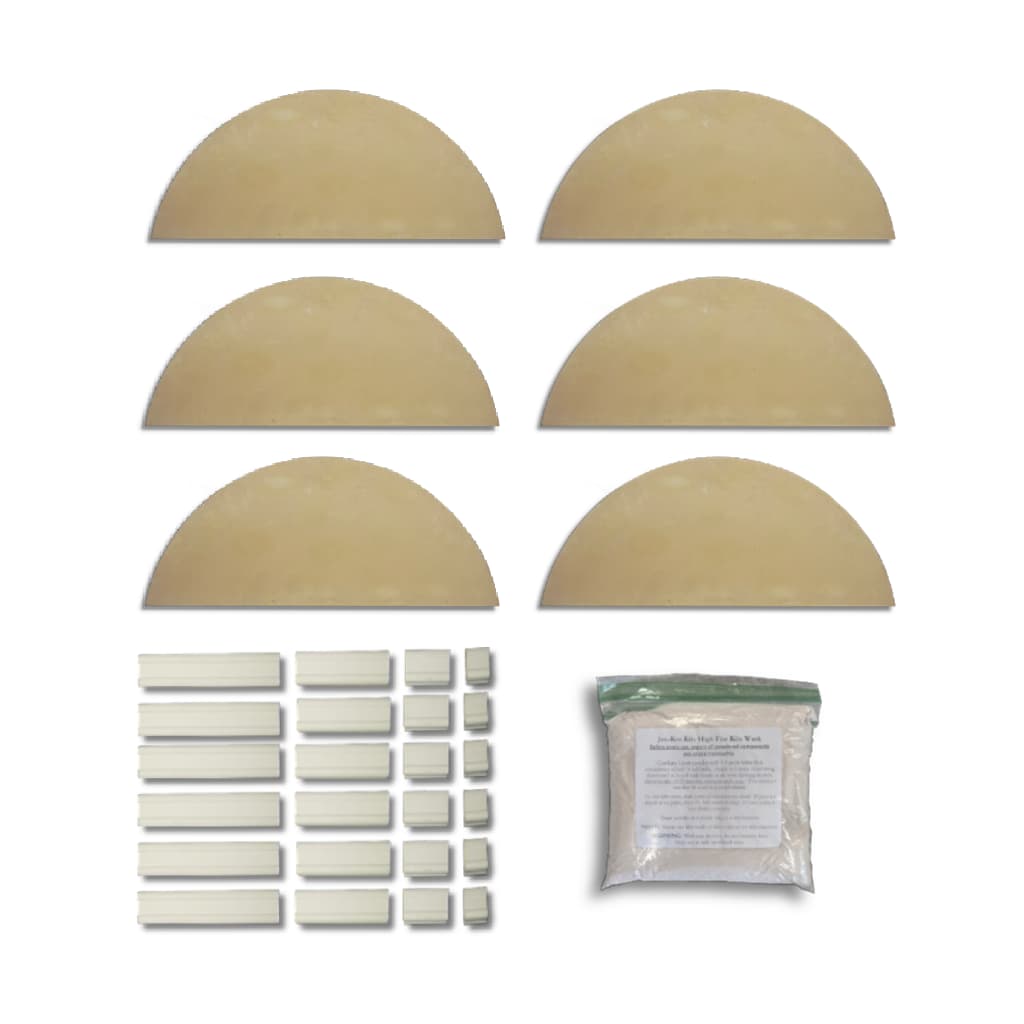

Furniture Kit for 2822 Kilns
$510.00
-

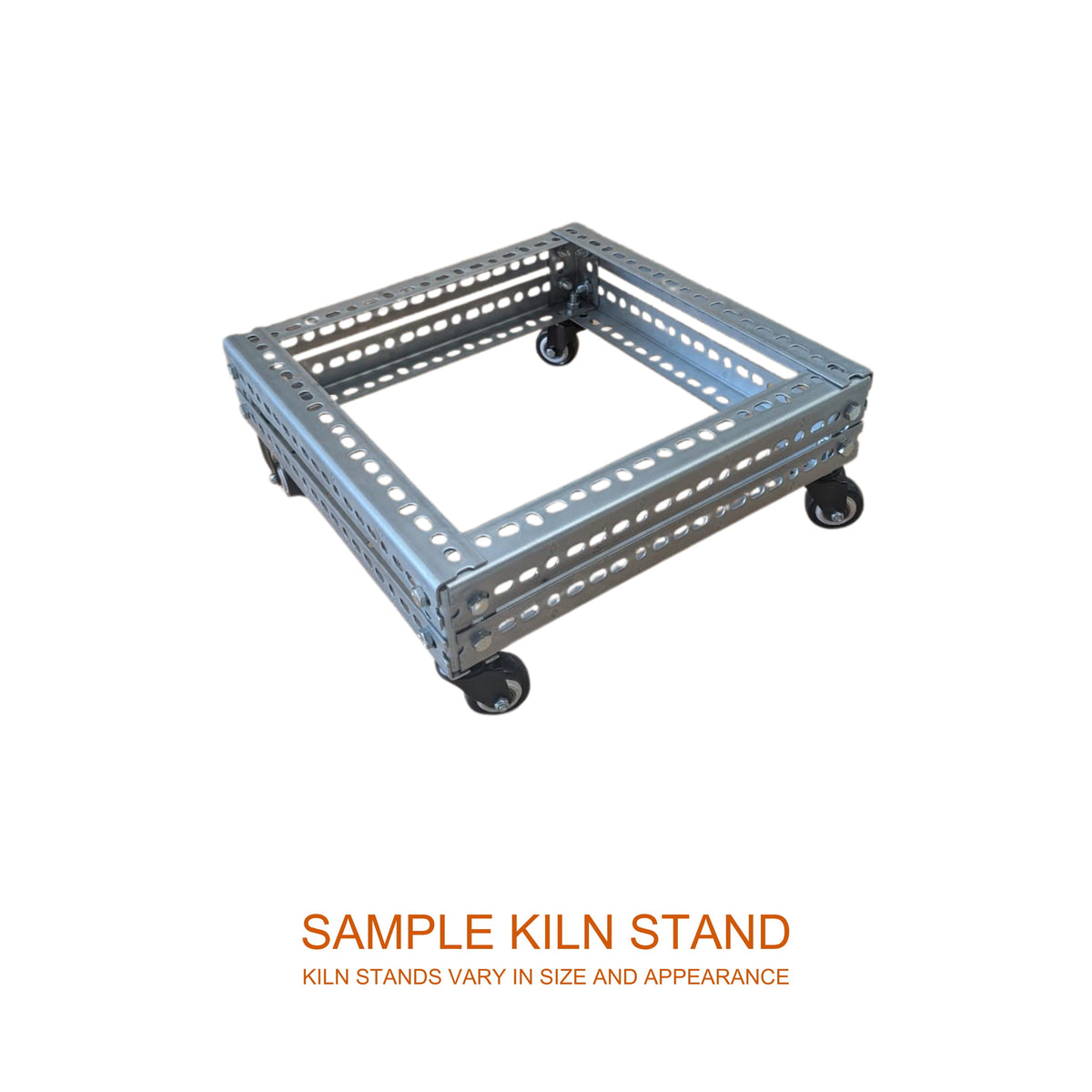

Steel Kiln Stand with Locking Casters for 28" Kilns
$350.00
-
Orton VentMaster Kiln Vent System
$785.00
-
Lid Switch (Kill Switch)
$100.00
Jen-Ken AF3C 2822 3" Brick Electric Kiln
Sale price
$3,714.40
Save 20%
Regular price $4,643.00
Skip to product information
Jen-Ken AF3C 2822 3" Brick Electric Kiln
Sale price
$3,714.40
Save 20%
Regular price $4,643.00
At a glance
| Size | X-Large |
|---|---|
| Interior | 28.0″ × 22.0″ W×D |
| Cubic feet | 8.0 |
| Max cone | Cone 8 |
| Power | 240V · Single · 45A |
| Controller | Orton AutoFire AF3C (digital) |
This reliable, efficient kiln is built for frequent use and multiple firings each week, making it a production kiln rather than a hobbyist one. Its 3" brick walls and lid provide about 20% more insulation than traditional brick kilns.
Lid lifters are included to reduce effort when opening, and it works with the Orton Downdraft System (sold separately) for even, consistent firing, with zone-control options available.
Key features
- Best for: low- and high-fire ceramics & pottery, cone 6 up to cone 8 (2,300°F)
- Bigger capacity: 28" wide with 22" depth
- Production kiln: built for high-volume firing
- Easy access: lower height makes it simple to reach the bottom
- Spacious interior: full 21" shelves or two half shelves
- 3" high-fire brick: about 20% more insulation
- Lid lifters included
- Venting & zone control: compatible with the Orton Downdraft System
What's included

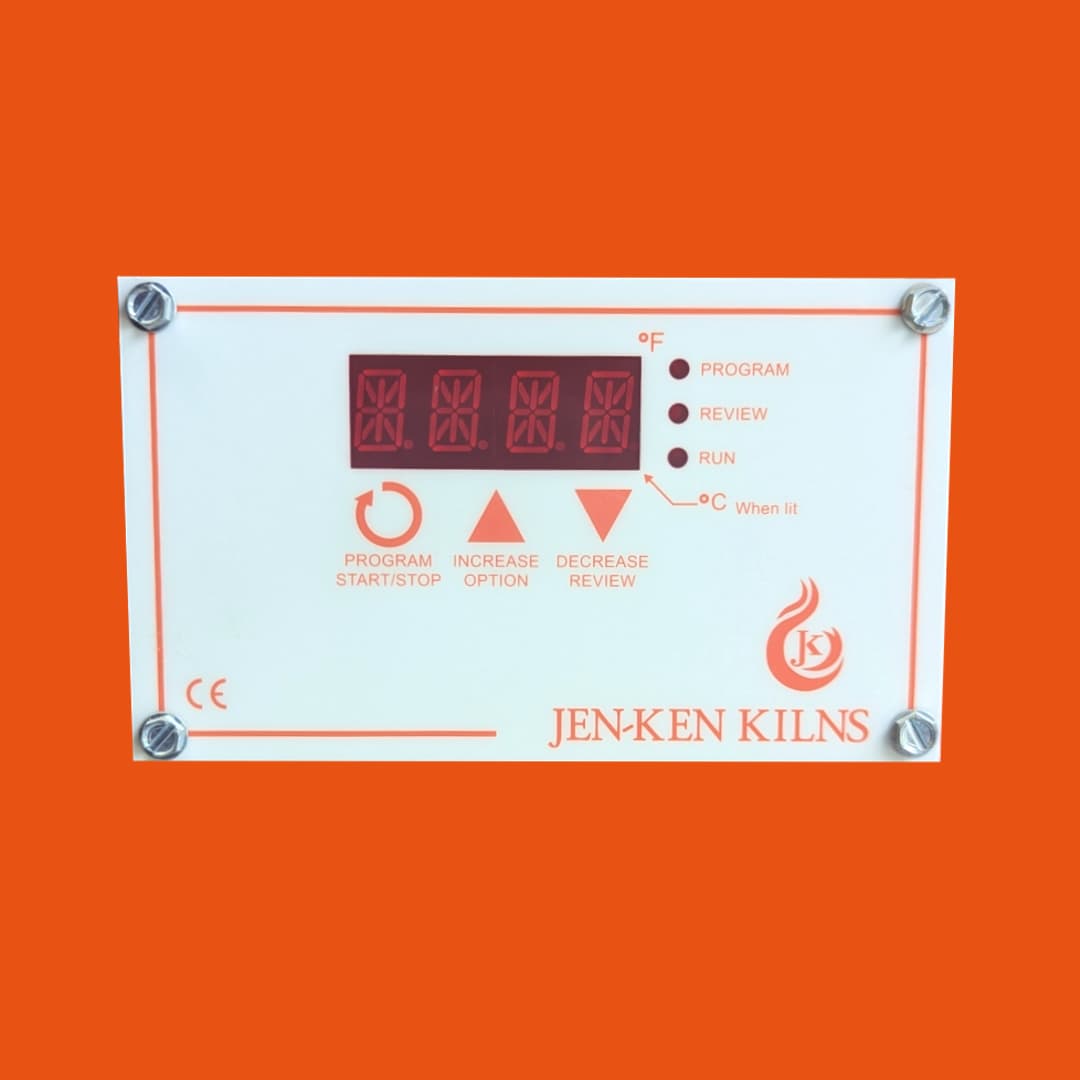

- Orton AutoFire AF3C 3-button digital controller
- Kiln stand
- Instruction manual
- Lid lifters
- 2-year limited warranty for kiln and controller
Specifications
| Model | AF3C 2822 3" |
|---|---|
| Interior dimensions | 28" x 22" |
| Capacity | 8 cu ft |
| Element placement | Side-fired |
| Max temperature | 2,300°F (cone 8) |
| Voltage | 240V, single phase |
| Amperage | 45A |
| Wattage | 10,800W |
| Receptacle | 6-50R |
| Breaker | 60A |
| Circuit wire gauge | 6 |
| Kiln weight | 300 lbs |
| Shipping weight (avg.) | 353 lbs |
| Shipping dimensions | 54" x 45" x 43" |
| Controller | Orton AutoFire AF3C 3-button |
| Shipping method | Motor freight — quoted upfront |
| Shelf size | Full 21" shelves or two half shelves |
| Brick thickness | 3" brick walls and lid |
| Loading type | Top-loading (lid with lid lifters) |
Electrical requirements
240V single-phase, 45A draw, 10,800W. Requires a 60A breaker, 6-gauge circuit wire and a NEMA 6-50R receptacle. Have a licensed electrician confirm your circuit, breaker and receptacle before the kiln arrives.
Warranty
2-year limited manufacturer warranty covering both the kiln and the controller.
Shipping, lead time & ordering
- Made to order and shipped direct from the manufacturer. We confirm current lead time with you when you order.
- Ships by motor freight (LTL truck) — freight is quoted upfront, before you pay for it. Residential liftgate delivery is available.
- Not sure about size, voltage, or your outlet? Talk to us or call (737) 231-1880 before you order, and try our Electrical Readiness Checker.
- See our Shipping Policy and Return Policy.
Frequently asked questions
What electrical service do I need?
Each model's voltage, amperage, breaker, wire gauge and receptacle or plug are listed in the Specifications and Electrical requirements above. Check your setup with our Electrical Readiness Checker, and have a licensed electrician confirm your circuit before the kiln arrives.
What's the difference between standard and 3-inch brick?
Jen-Ken's 3" brick offers about 20% more insulation than standard brick, for better energy efficiency and heat retention, and is suited to frequent, production-level firing. This model is built with 3" brick walls and lid.
How is freight quoted?
We quote freight upfront, before you pay for it, based on your delivery address and whether you need residential liftgate delivery. Shipping is not included in the kiln price. See our Shipping Policy.
What's the lead time?
Jen-Ken kilns are made to order and ship direct from the manufacturer. We confirm the current lead time with you when you order.
Can I return it?
Eligible items can be returned within 90 days of delivery if they're unused, in original packaging, and haven't been wired in or fired. Custom or built-to-order units aren't returnable, and the customer covers return freight. Contact us for a return authorization before shipping anything back. Full details are in our Return Policy.
What warranty does it have?
Jen-Ken includes a 2-year limited warranty covering both the kiln and the controller. If something develops a fault, contact us and we'll coordinate the warranty claim.

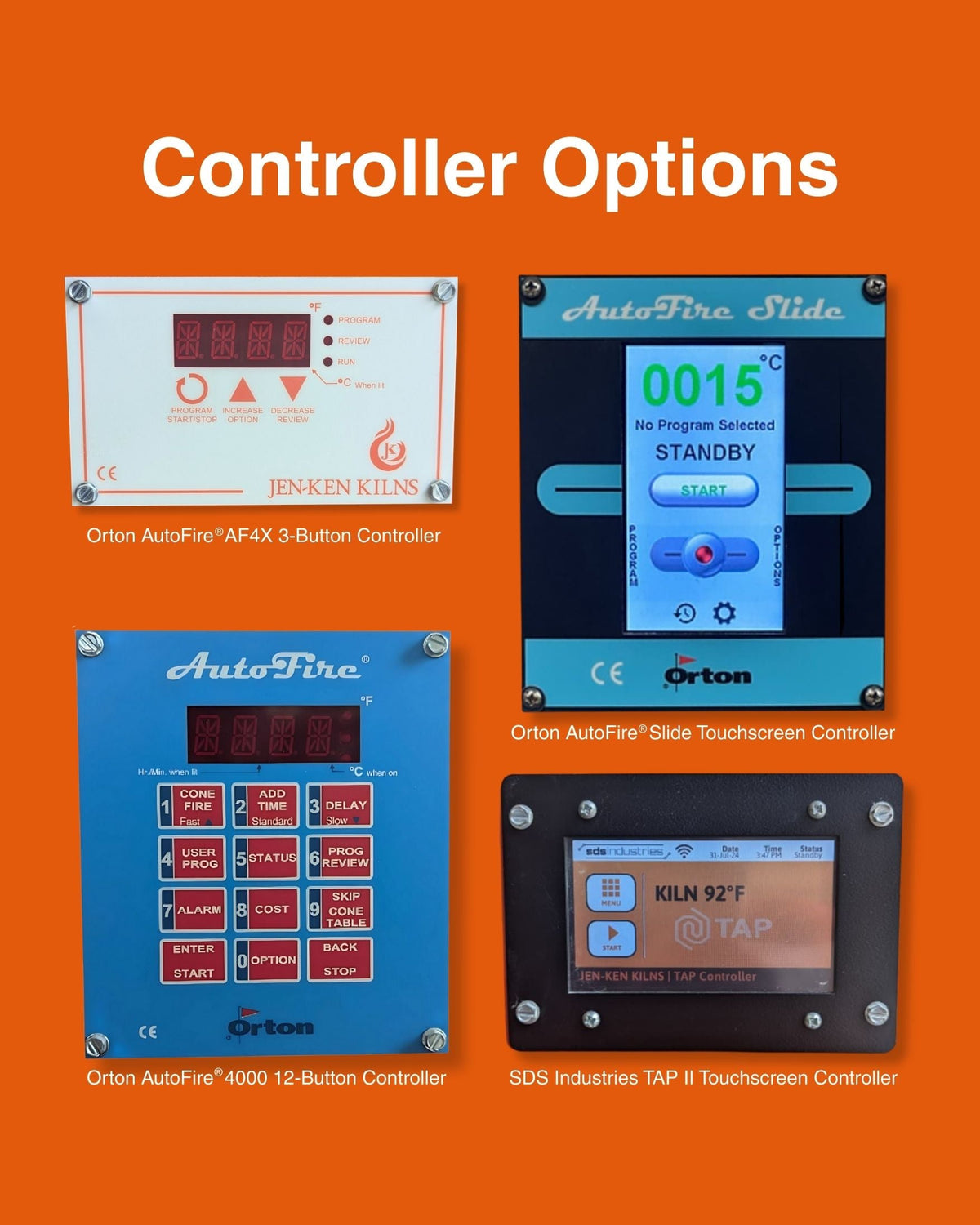

Can I add a controller upgrade, furniture kit or vent?
Jen-Ken offers options such as upgraded controllers, furniture kits, stands and vents. Ask us or call (737) 231-1880 and we'll quote the options that fit your kiln.
Parts for this kiln
Elements, thermocouples, and relays wear with use. We stock genuine manufacturer parts for your model — use the part finder if you're unsure which one you need.
