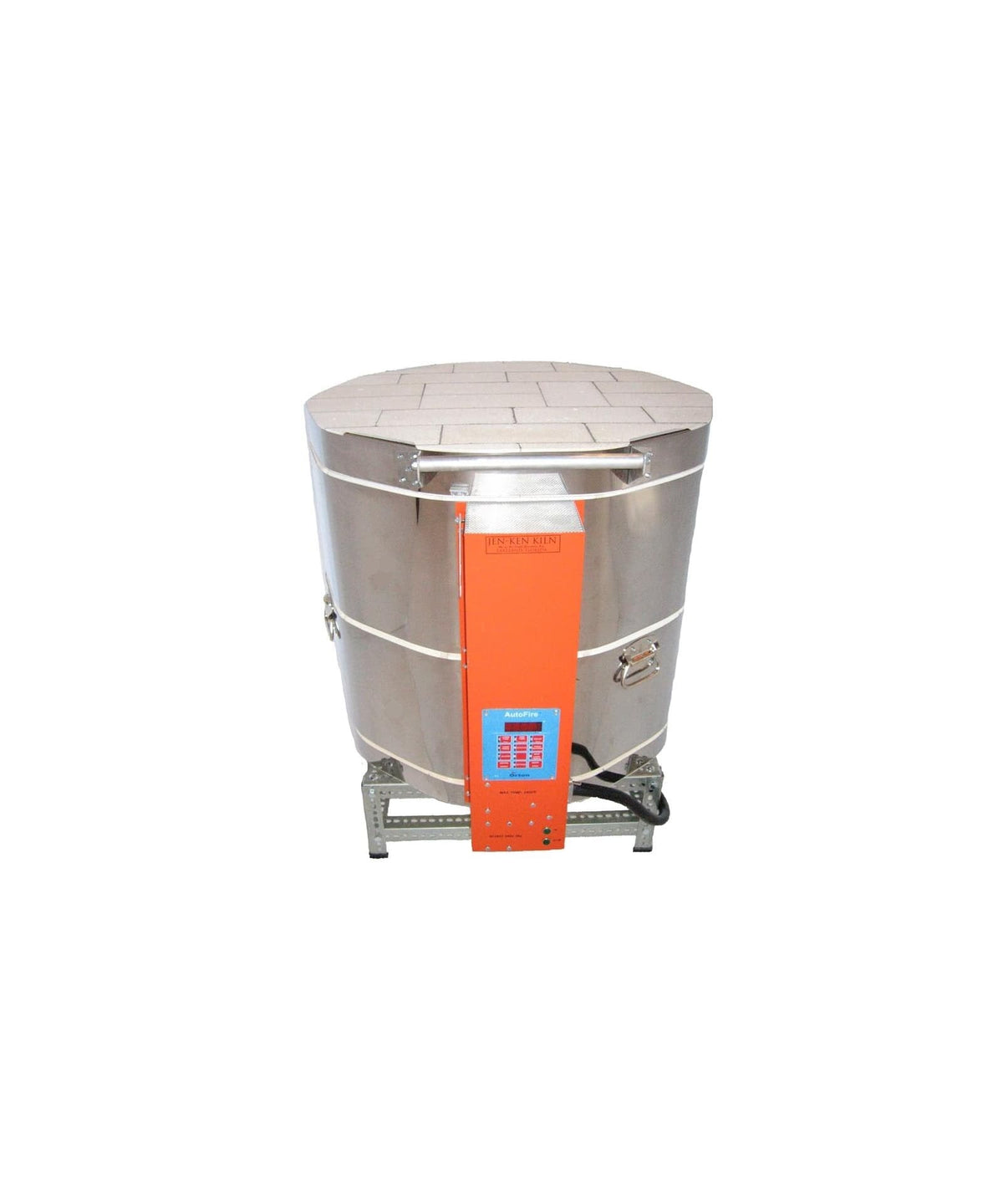

Jen-Ken AF3C 2422 Electric Kiln
The AF3C 2422 is an ideal kiln for home studios, offering a strong blend of size and performance.
$3,033.60Regular price $3,792.00
Save 20%
Freight quoted upfront
Get a Quote Have a Question? →
Recommended add-ons
-

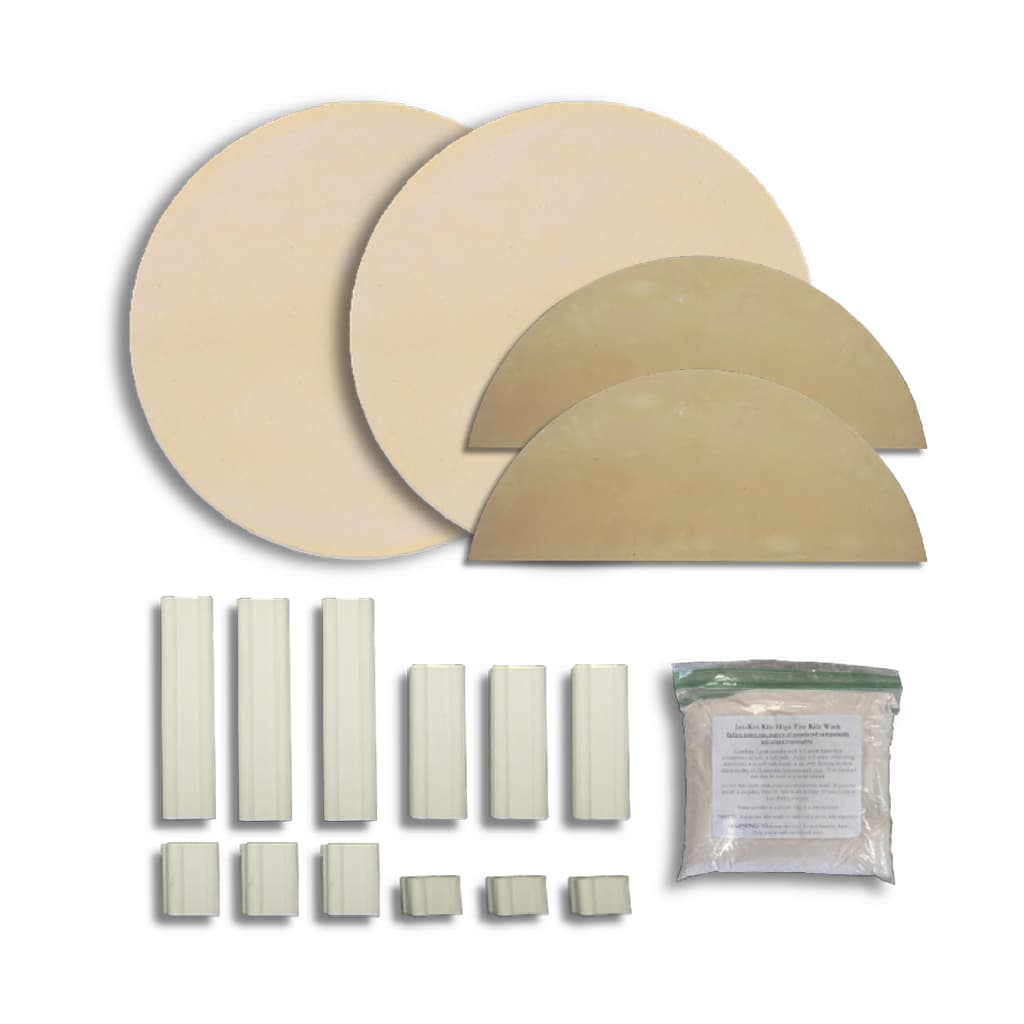

Furniture Kit for 2422 Kilns
$420.00
-

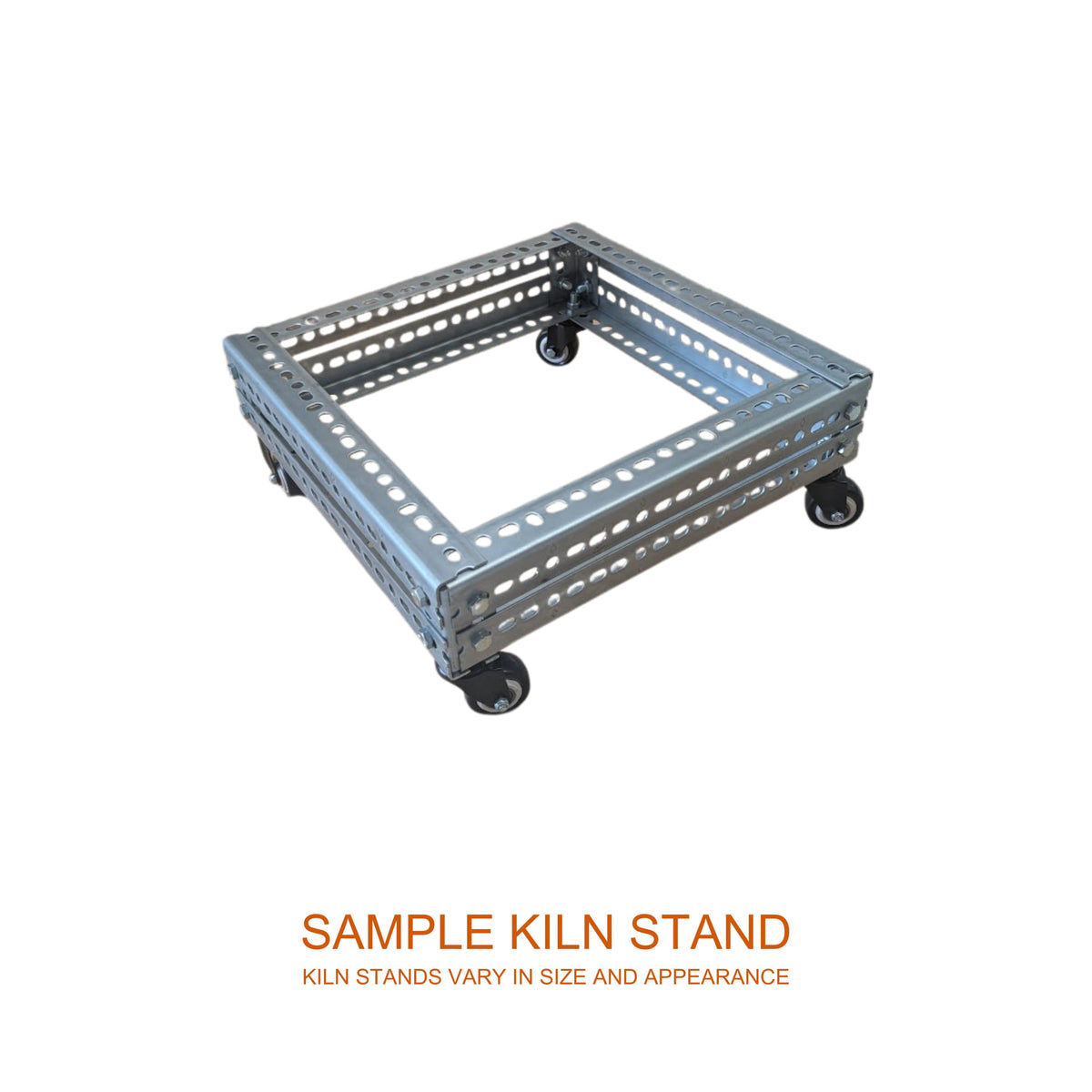

Steel Kiln Stand with Locking Casters for 24" Kilns
$325.00
-
Orton VentMaster Kiln Vent System
$785.00
-
Lid Switch (Kill Switch)
$100.00
Jen-Ken AF3C 2422 Electric Kiln
Sale price
$3,033.60
Save 20%
Regular price $3,792.00
Skip to product information
Jen-Ken AF3C 2422 Electric Kiln
Sale price
$3,033.60
Save 20%
Regular price $3,792.00
At a glance
| Size | Large |
|---|---|
| Interior | 24.0″ × 22.0″ W×D |
| Cubic feet | 5.75 |
| Max cone | Cone 8 |
| Power | 240V · Single · 36A |
| Controller | Orton AutoFire AF3C (digital) |
Its 22" depth makes loading and unloading easy — especially helpful if you're on the shorter side.
It's designed for ease of use, with lid lifters that make it possible to open with just two fingers. Paired with the Orton Downdraft System (sold separately), the 2422 offers effortless venting and zone control for more even firings.
It fits through most standard doorways (smallest measurement 35") and has room for a full 21" shelf or two half shelves, accommodating square pieces up to 15" x 15". It fires low-fire ceramics and pottery to cone 6, and high-fire work up to cone 8 (2,300°F).
Want a production workhorse? The 3" brick version adds 20% more insulation for better efficiency and heat retention — ask us.
Key features
- Best for: ceramics & pottery
- Home-studio friendly: fits through most doorways (35")
- Low- and high-fire: cone 6 low-fire up to cone 8 (2,300°F)
- Easy loading: 22" depth
- Spacious interior: full 21" shelf or two half shelves; square pieces up to 15" x 15"
- Lid lifters included
- Venting & zone control: compatible with the Orton Downdraft System

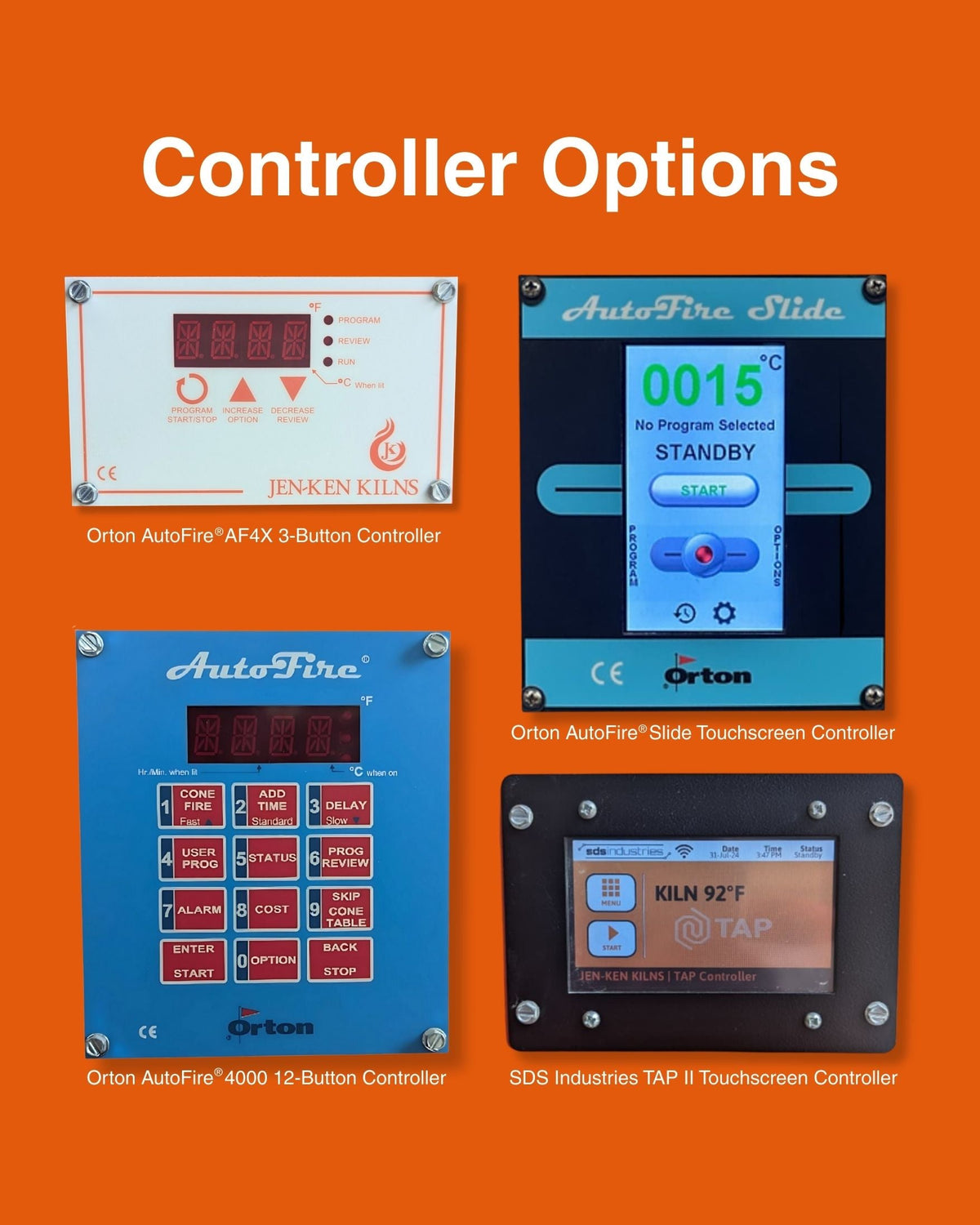

- Controller option: the Orton AutoFire 12-key controller supports multiple thermocouples for zone control (upgrade)
What's included

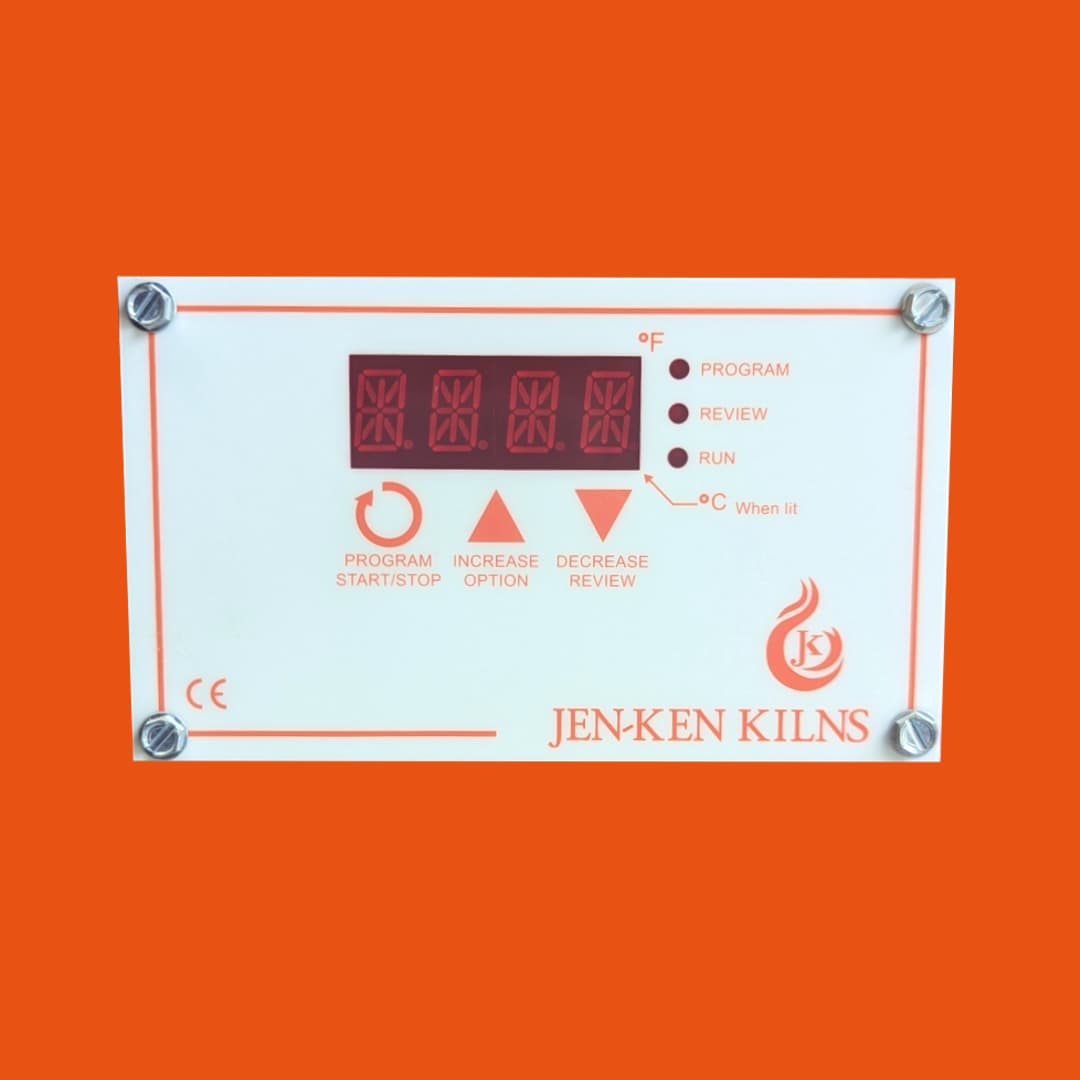

- Orton AutoFire AF3C 3-button digital controller
- Kiln stand
- Instruction manual
- Lid lifters
- 2-year limited warranty for kiln and controller
Specifications
| Model | AF3C 2422 |
|---|---|
| Interior dimensions | 24" x 22" |
| Capacity | 5.75 cu ft |
| Element placement | Side-fired |
| Max temperature | 2,300°F (cone 8) |
| Voltage | 240V, single phase |
| Amperage | 36A |
| Wattage | 8,640W |
| Receptacle | 6-50R |
| Breaker | 40A |
| Circuit wire gauge | 8 |
| Kiln weight | 200 lbs |
| Shipping weight (avg.) | 240 lbs |
| Shipping dimensions | 49" x 42" x 42" |
| Controller | Orton AutoFire AF3C 3-button |
| Shipping method | Motor freight — quoted upfront |
| Shelf size | Full 21" shelf or two half shelves |
| Brick thickness | Standard brick (3" brick available as the AF 2422 - 3" model) |

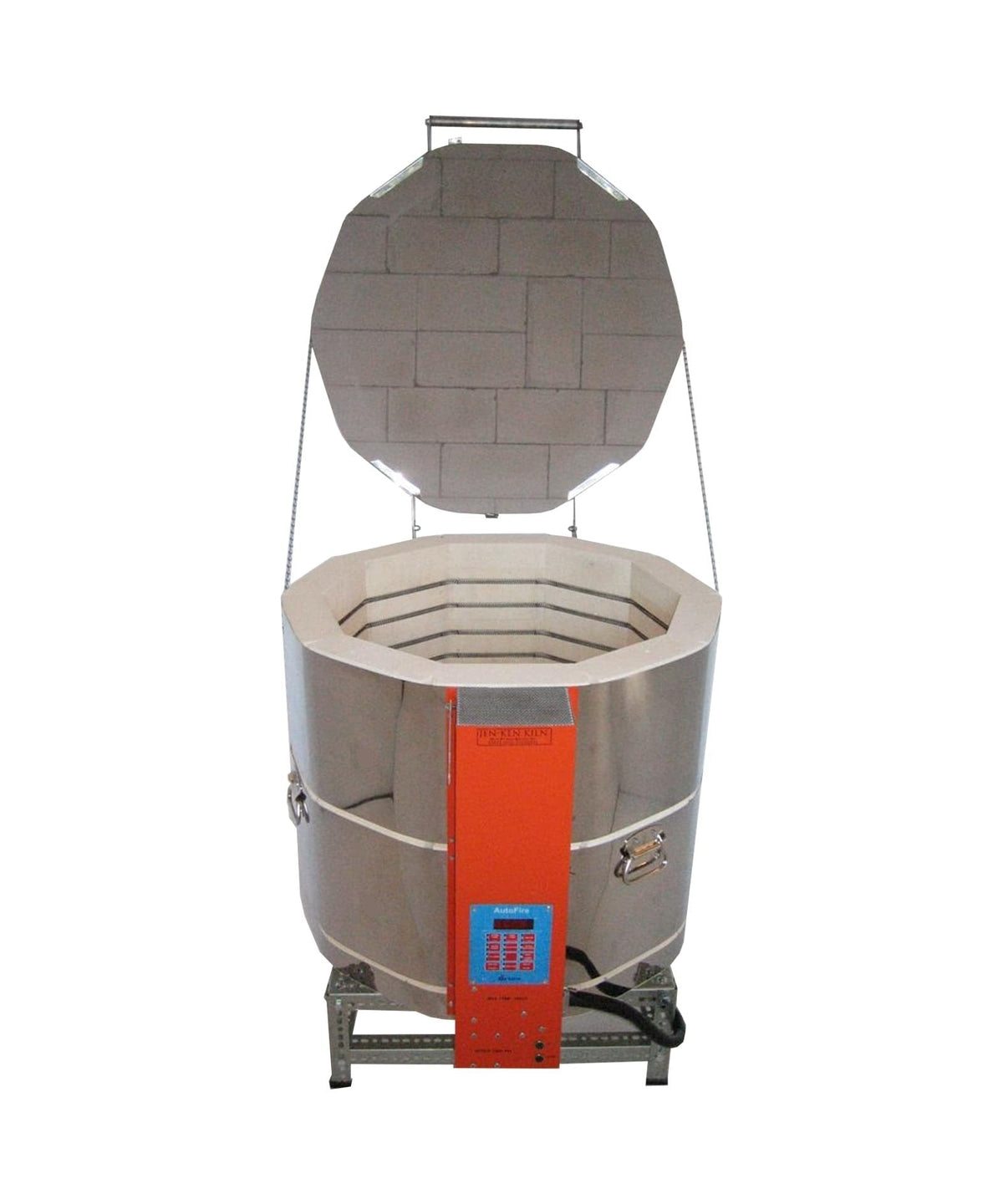

| Loading type | Top-loading (lid with lid lifters) |
Electrical requirements
240V single-phase, 36A draw, 8,640W. Requires a 40A breaker, 8-gauge circuit wire and a NEMA 6-50R receptacle. Have a licensed electrician confirm your circuit, breaker and receptacle before the kiln arrives.
Warranty
2-year limited manufacturer warranty covering both the kiln and the controller.
Shipping, lead time & ordering
- Made to order and shipped direct from the manufacturer. We confirm current lead time with you when you order.
- Ships by motor freight (LTL truck) — freight is quoted upfront, before you pay for it. Residential liftgate delivery is available.
- Not sure about size, voltage, or your outlet? Talk to us or call (737) 231-1880 before you order, and try our Electrical Readiness Checker.
- See our Shipping Policy and Return Policy.
Frequently asked questions
What electrical service do I need?
Each model's voltage, amperage, breaker, wire gauge and receptacle or plug are listed in the Specifications and Electrical requirements above. Check your setup with our Electrical Readiness Checker, and have a licensed electrician confirm your circuit before the kiln arrives.
What's the difference between standard and 3-inch brick?
Jen-Ken's 3" brick offers about 20% more insulation than standard brick, for better energy efficiency and heat retention, and is suited to frequent, production-level firing. For this model, 3" brick is a separate model at additional cost. Ask us if you'd like a quote on it.
How is freight quoted?
We quote freight upfront, before you pay for it, based on your delivery address and whether you need residential liftgate delivery. Shipping is not included in the kiln price. See our Shipping Policy.
What's the lead time?
Jen-Ken kilns are made to order and ship direct from the manufacturer. We confirm the current lead time with you when you order.
Can I return it?
Eligible items can be returned within 90 days of delivery if they're unused, in original packaging, and haven't been wired in or fired. Custom or built-to-order units aren't returnable, and the customer covers return freight. Contact us for a return authorization before shipping anything back. Full details are in our Return Policy.
What warranty does it have?
Jen-Ken includes a 2-year limited warranty covering both the kiln and the controller. If something develops a fault, contact us and we'll coordinate the warranty claim.
Can I add a controller upgrade, furniture kit or vent?
Jen-Ken offers options such as upgraded controllers, furniture kits, stands and vents. Ask us or call (737) 231-1880 and we'll quote the options that fit your kiln.
Parts for this kiln
Elements, thermocouples, and relays wear with use. We stock genuine manufacturer parts for your model — use the part finder if you're unsure which one you need.
