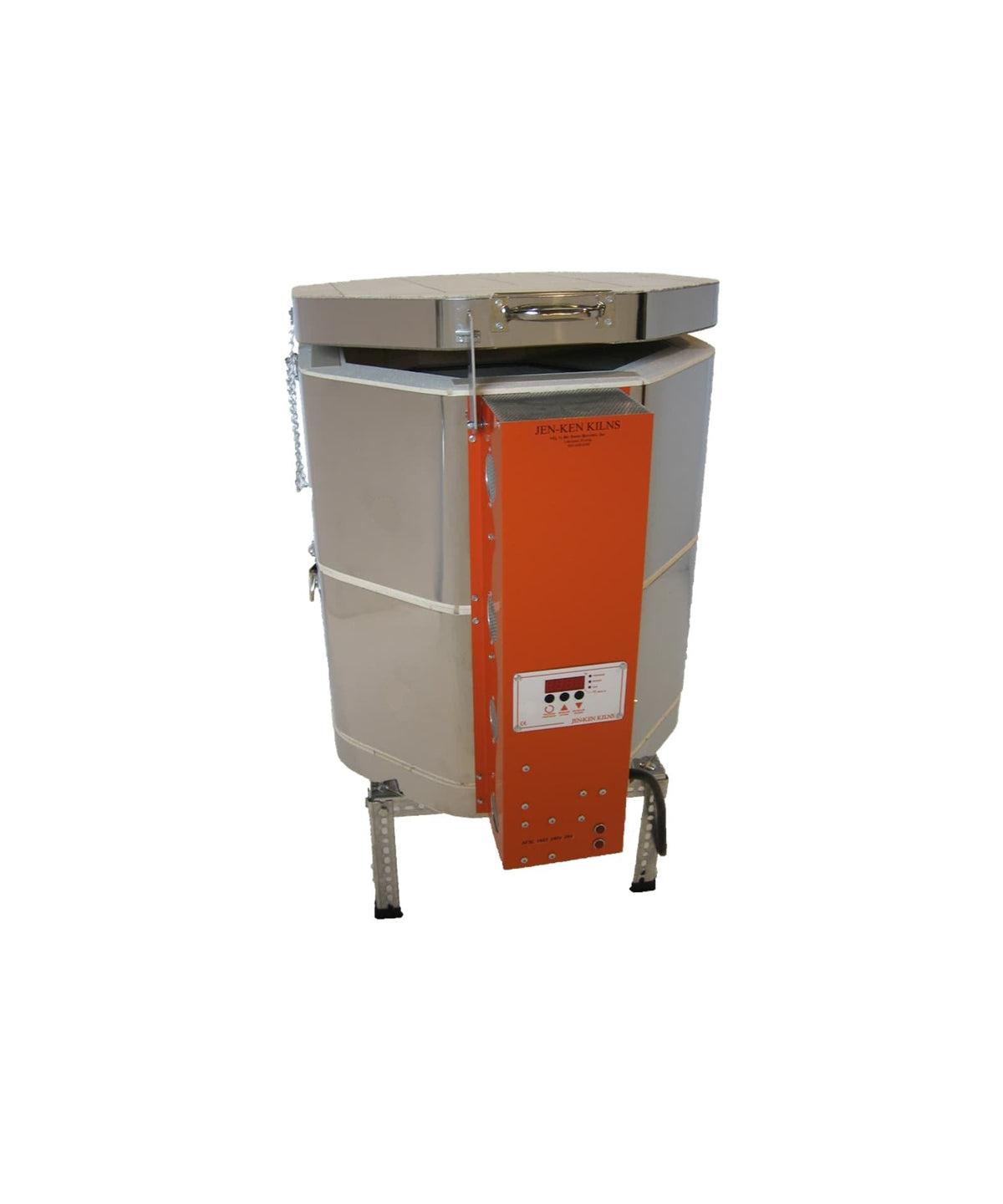

Jen-Ken AF3C 1822 Electric Kiln
The 1822 ceramic kiln strikes a balance of size, power and versatility for ceramic and pottery enthusiasts.
$2,141.60Regular price $2,677.00
Save 20%
Freight quoted upfront
Get a Quote Have a Question? →
Recommended add-ons
-

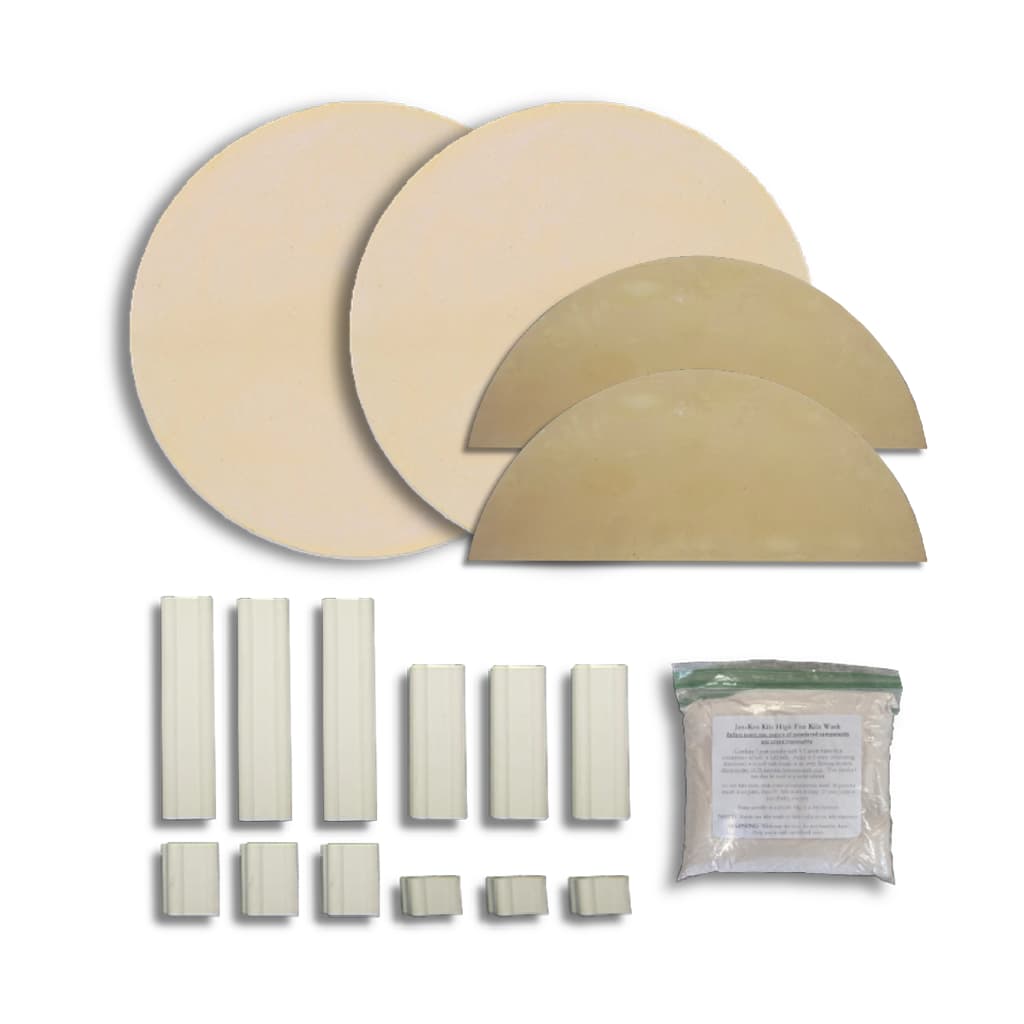

Furniture Kit for 1822 Kilns
$300.00
-

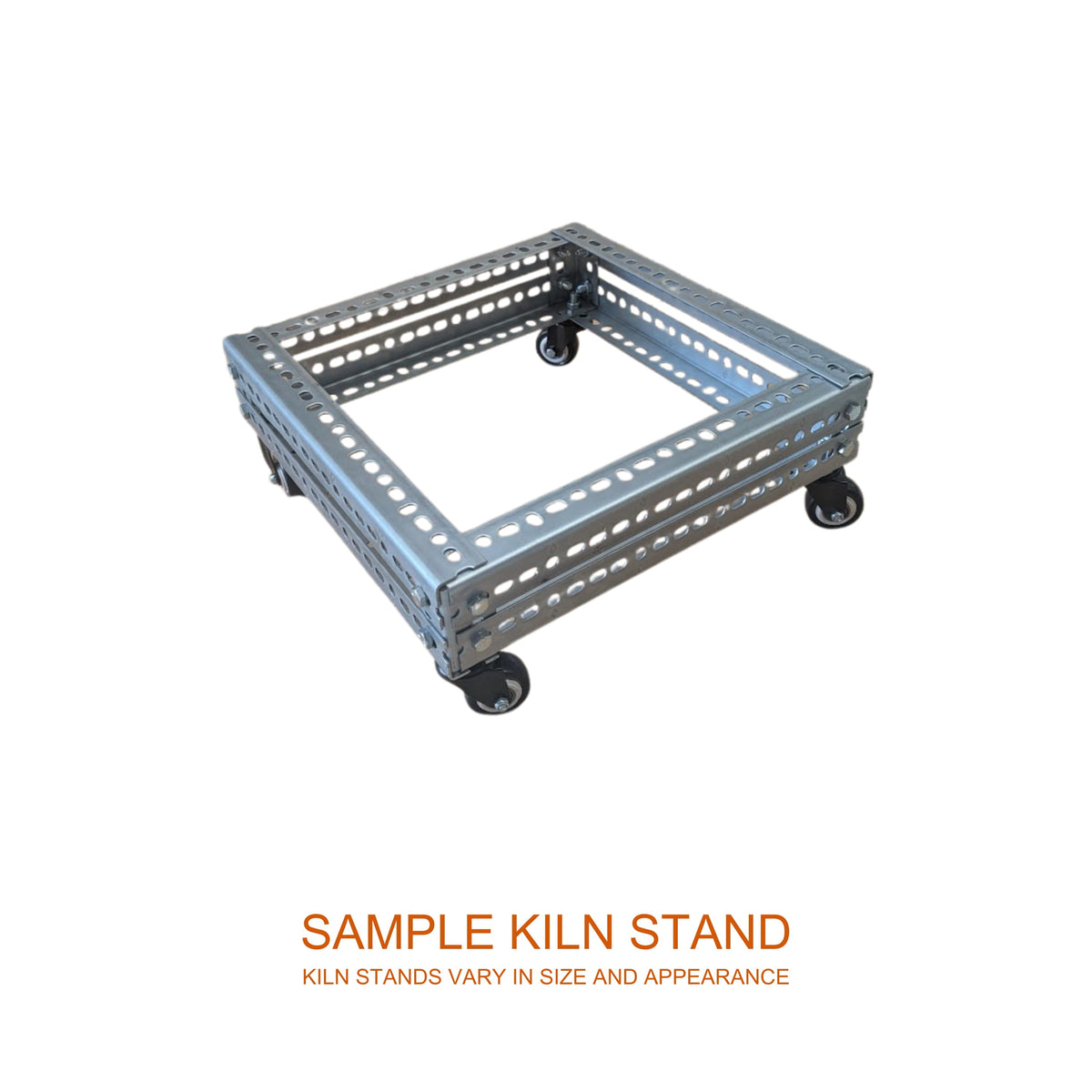

Steel Kiln Stand with Locking Casters for 18" Kilns
$300.00
-
Orton VentMaster Kiln Vent System
$785.00
-
Lid Switch (Kill Switch)
$100.00
Jen-Ken AF3C 1822 Electric Kiln
Sale price
$2,141.60
Save 20%
Regular price $2,677.00
Skip to product information
Jen-Ken AF3C 1822 Electric Kiln
Sale price
$2,141.60
Save 20%
Regular price $2,677.00
At a glance
| Size | Medium |
|---|---|
| Interior | 18.0″ × 22.0″ W×D |
| Cubic feet | 3.24 |
| Max cone | Cone 6 |
| Power | 240V · Single · 26A |
| Controller | Orton AutoFire AF3C (digital) |
Designed to fire up to cone 6, it's a great fit for hobbyists who sell at shows and markets, and for garage studios running on a standard 30A dryer-style circuit.
Big enough for small-batch production yet compact enough to avoid a 50A upgrade, extra space or special ventilation, the 1822 fits into most setups. It's energy-efficient and reliable, and an integrated lid prop makes venting easy — a feature you don't often find on larger kilns.
External thermocouples are simple to maintain, and a 3" brick version is available for more insulation — ask us.
Key features
- Best for: ceramics & pottery
- Hobbyist-ready: small-scale production without special electrical upgrades
- Standard 30A circuit: works with a typical 30A dryer-style outlet (6-30R)
- Cost-effective to run
- External thermocouples: easy to access and replace
- Integrated lid prop for easy venting
What's included

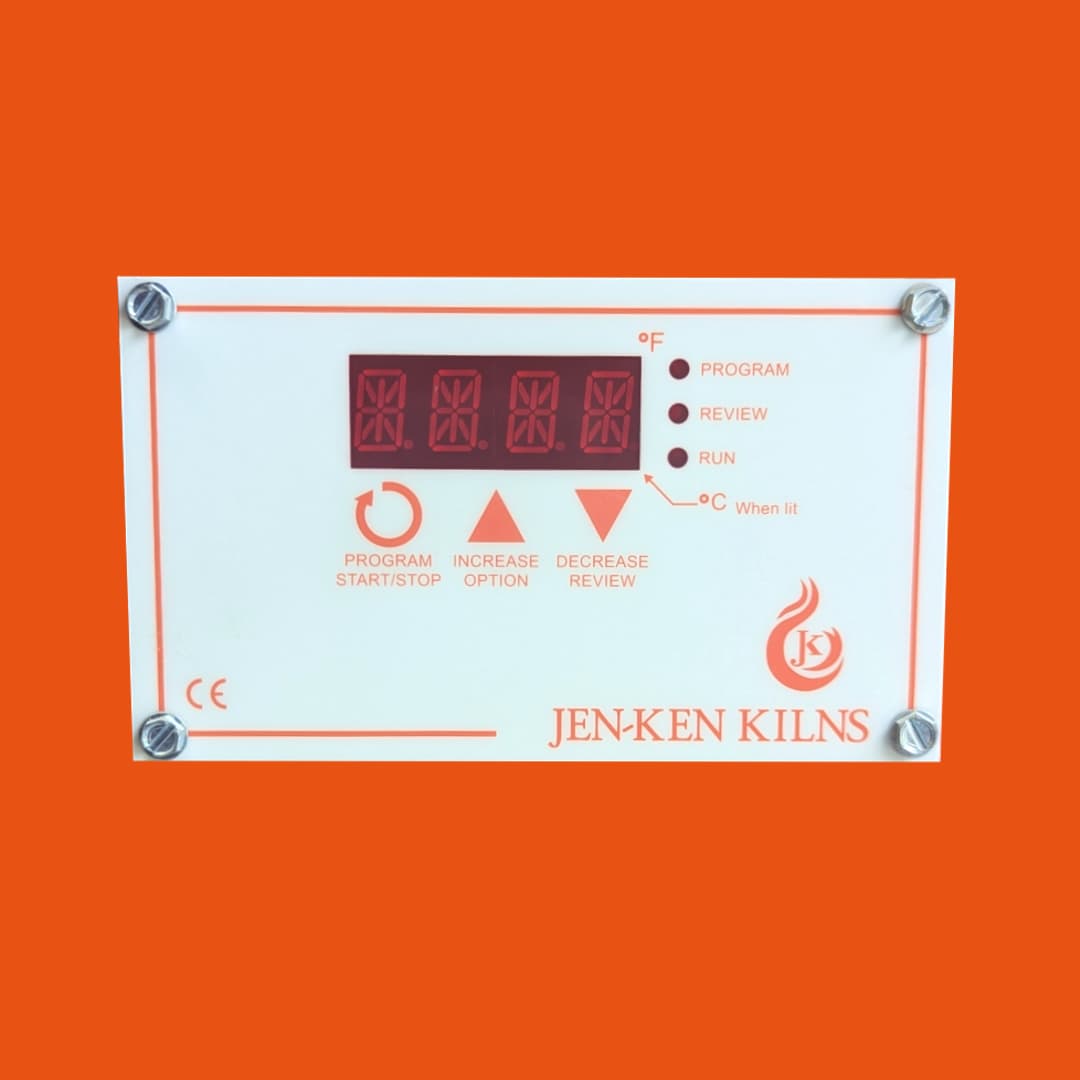

- Orton AutoFire AF3C 3-button digital controller
- Kiln stand
- Instruction manual
- Integrated lid prop (built in)
- 2-year limited warranty for kiln and controller
Specifications
| Model | AF3C 1822 |
|---|---|
| Interior dimensions | 18" x 22" |
| Capacity | 3.24 cu ft |
| Element placement | Side-fired |
| Max temperature | 2,300°F |
| Voltage | 240V, single phase |
| Amperage | 26A |
| Wattage | 6,240W |
| Receptacle | 6-30R |
| Breaker | 30A |
| Circuit wire gauge | 8 |
| Overall dimensions | 24" x 31" x 27" |
| Kiln weight | 150 lbs |
| Shipping weight (avg.) | 205 lbs |
| Controller | Orton AutoFire AF3C 3-button |
| Shipping method | Motor freight — quoted upfront |
| Brick thickness | Standard brick (3" brick available as the AF3C 1822 - 3" model) |
| Loading type | Top-loading (lid with integrated lid prop) |
Electrical requirements
240V single-phase, 26A draw, 6,240W. Requires a 30A breaker, 8-gauge circuit wire and a NEMA 6-30R receptacle. Have a licensed electrician confirm your circuit, breaker and receptacle before the kiln arrives.
Warranty
2-year limited manufacturer warranty covering both the kiln and the controller.
Shipping, lead time & ordering
- Made to order and shipped direct from the manufacturer. We confirm current lead time with you when you order.
- Ships by motor freight (LTL truck) — freight is quoted upfront, before you pay for it. Residential liftgate delivery is available.
- Not sure about size, voltage, or your outlet? Talk to us or call (737) 231-1880 before you order, and try our Electrical Readiness Checker.
- See our Shipping Policy and Return Policy.
Frequently asked questions
What electrical service do I need?
Each model's voltage, amperage, breaker, wire gauge and receptacle or plug are listed in the Specifications and Electrical requirements above. Check your setup with our Electrical Readiness Checker, and have a licensed electrician confirm your circuit before the kiln arrives.
What's the difference between standard and 3-inch brick?
Jen-Ken's 3" brick offers about 20% more insulation than standard brick, for better energy efficiency and heat retention, and is suited to frequent, production-level firing. For this model, 3" brick is a separate model at additional cost. Ask us if you'd like a quote on it.
How is freight quoted?
We quote freight upfront, before you pay for it, based on your delivery address and whether you need residential liftgate delivery. Shipping is not included in the kiln price. See our Shipping Policy.
What's the lead time?
Jen-Ken kilns are made to order and ship direct from the manufacturer. We confirm the current lead time with you when you order.
Can I return it?
Eligible items can be returned within 90 days of delivery if they're unused, in original packaging, and haven't been wired in or fired. Custom or built-to-order units aren't returnable, and the customer covers return freight. Contact us for a return authorization before shipping anything back. Full details are in our Return Policy.
What warranty does it have?
Jen-Ken includes a 2-year limited warranty covering both the kiln and the controller. If something develops a fault, contact us and we'll coordinate the warranty claim.

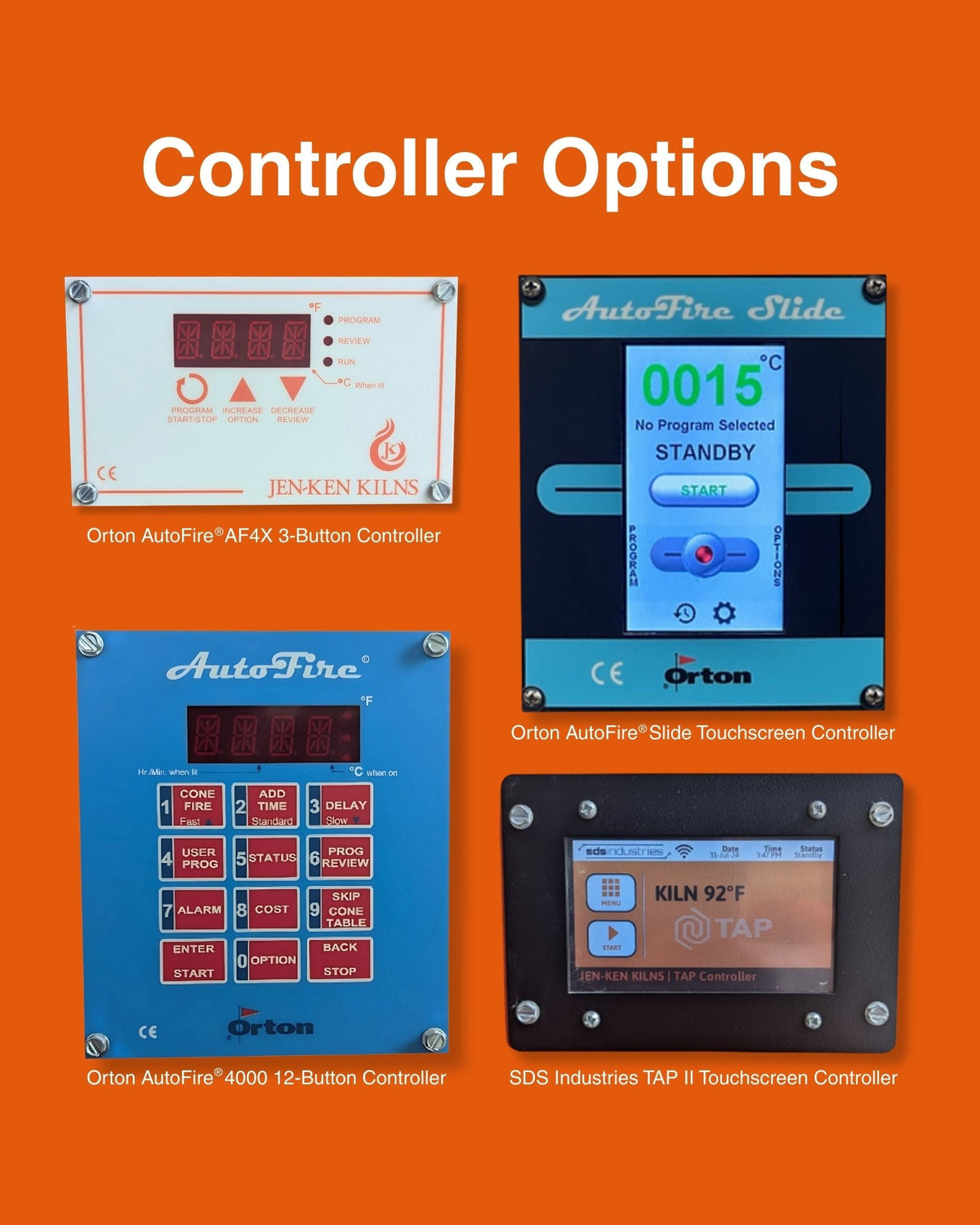

Can I add a controller upgrade, furniture kit or vent?
Jen-Ken offers options such as upgraded controllers, furniture kits, stands and vents. Ask us or call (737) 231-1880 and we'll quote the options that fit your kiln.
Parts for this kiln
Elements, thermocouples, and relays wear with use. We stock genuine manufacturer parts for your model — use the part finder if you're unsure which one you need.
