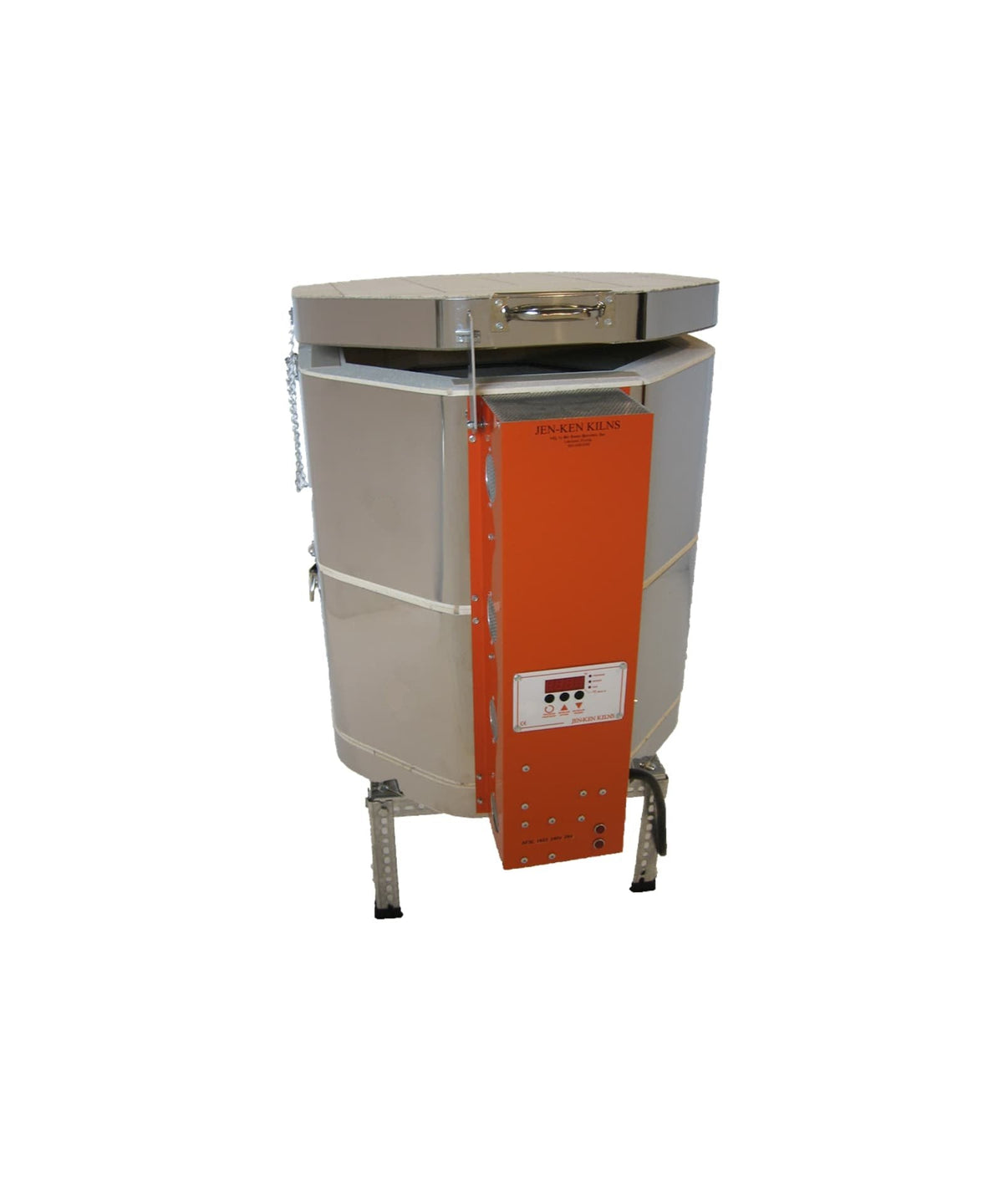

Jen-Ken AF3C 1822 3″ Brick Electric Kiln
The 1822 - 3" ceramic kiln strikes the perfect balance of size, power, and versatility, making it ideal for ceramic and pottery enthusiasts.
$2,255.20Regular price $2,819.00
Save 20%
Freight quoted upfront
Get a Quote Have a Question? →
Recommended add-ons
-

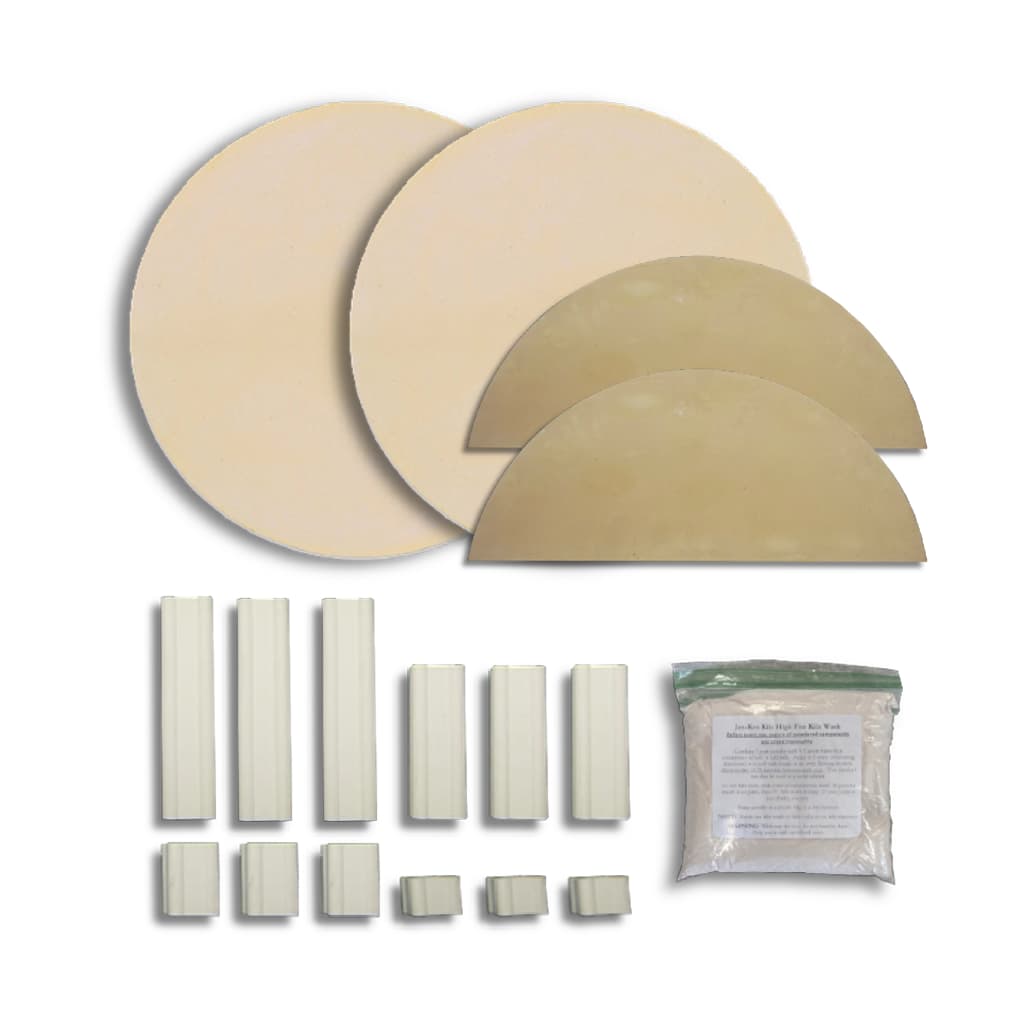

Furniture Kit for 1822 Kilns
$300.00
-

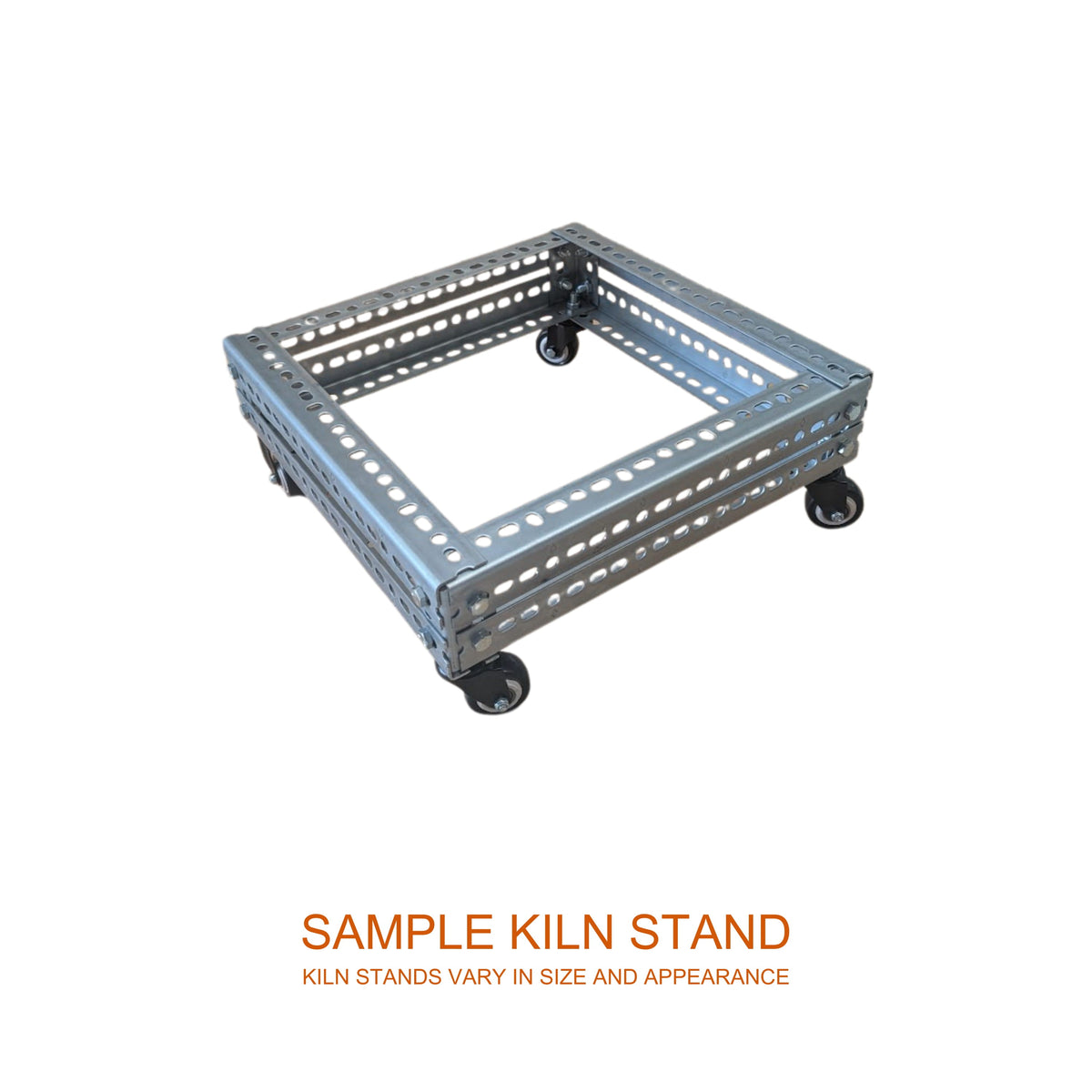

Steel Kiln Stand with Locking Casters for 18" Kilns
$300.00
-
Orton VentMaster Kiln Vent System
$785.00
-
Lid Switch (Kill Switch)
$100.00
Jen-Ken AF3C 1822 3″ Brick Electric Kiln
Sale price
$2,255.20
Save 20%
Regular price $2,819.00
Skip to product information
Jen-Ken AF3C 1822 3″ Brick Electric Kiln
Sale price
$2,255.20
Save 20%
Regular price $2,819.00
At a glance
| Size | Medium |
|---|---|
| Interior | 18.0″ × 22.0″ W×D |
| Cubic feet | 3.24 |
| Max cone | Cone 6 |
| Power | 240V · Single · 26A |

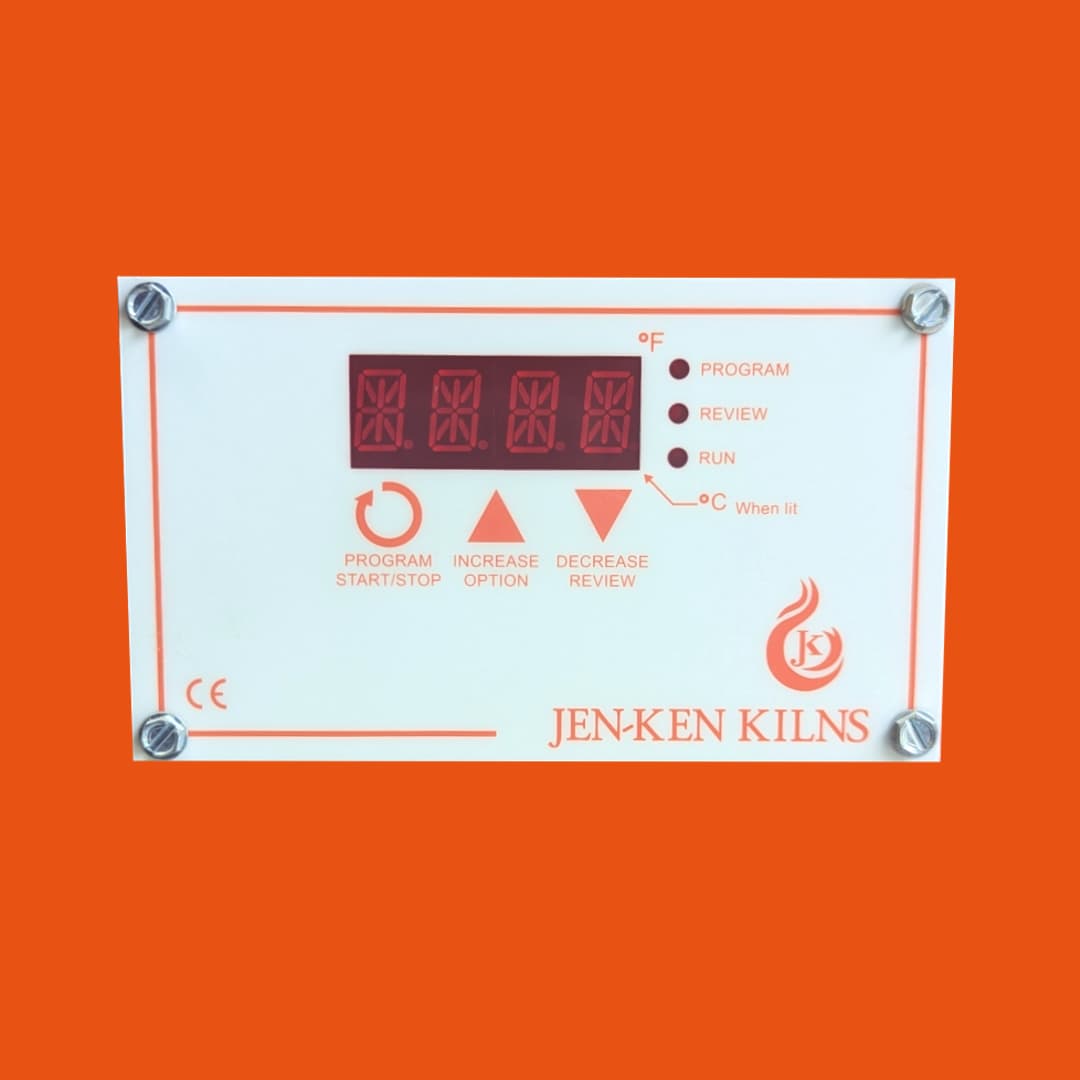

| Controller | Orton AF3C 3-Button Controller |
Designed to fire up to cone 6, this kiln is perfect for hobbyists who sell at shows and markets, as well as for garage studios running on a standard 30A dryer outlet.
Big enough to handle small-batch production yet compact enough to avoid the need for a 50A upgrade, extra space, or special ventilation, the 1822 integrates seamlessly into most setups.
Known for its energy efficiency and reliable performance, it delivers consistent results without overworking. Features like an integrated lid prop make venting easy—something you don’t often find on larger kilns.
Its external thermocouples are simple to maintain, and the 3-inch kiln bricks let you take your high-fire work to the next level.
Whether you're firing for personal use or preparing for market sales, the 1822 and 1822/3 kilns deliver exceptional results while staying affordable to operate.
Key features
- Great for Mid-Range Production Studios/Classrooms: Ideal for high-volume paint-your-own pottery studios, schools, and other environments needing frequent and efficient firings.
- Minimal Maintenance: Designed for easy serviceability, featuring heavy-gauge high-power mega coils and external thermocouples that are easily accessible for maintenance.
- 3" Brick High-Fire Brick: This kiln body, made of 3” brick offers 20% more insulation than standard bricks, enhancing energy efficiency and maximizing heat retention during firings.
- Zone Control Option: Optional zone control available to enhance heat efficiency for optimal firing results
What's included
- Orton AF3C 3-Button Controller
- Kiln Stand
- Instruction Manual
- 2-Year Limited Warranty for Kiln and Controller
Specifications
| Kiln model | AF3C 1822 |
|---|---|
| Interior dimensions | 18" x 22" |
| Capacity | 3.24 cu ft |
| Element placement | Side-fired |
| Max temperature | 2,300°F |
| Voltage | 240V |
| Amperage | 26A |
| Wattage | 6,240W |
| Receptacle | 6-30R |
| Breaker | 30A |
| Circuit wire gauge | 8 |
| Overall dimensions (footprint and height) | 24" x 31" x 27" |
| Kiln weight | 150 lbs |
| Shipping weight (average) | 205 lbs |
| Controller | Orton AF3C 3-Button Controller |
| Brick thickness | 3" brick walls and lid |
| Loading type | Top-loading |
| Shipping method | Motor freight — quoted upfront |
Electrical requirements
240V single-phase: 26A draw, 6,240W, breaker 30A, 8-gauge wire, receptacle 6-30R. Have a licensed electrician confirm your circuit, breaker and receptacle before the kiln arrives.
Warranty
2-year limited manufacturer warranty covering both the kiln and the controller.
Shipping, lead time & ordering
- Made to order and shipped direct from the manufacturer. We confirm current lead time with you when you order.
- Ships by motor freight (LTL truck) — freight is quoted upfront, before you pay for it. Residential liftgate delivery is available.
- Not sure about size, voltage, or your outlet? Talk to us or call (737) 231-1880 before you order, and try our Electrical Readiness Checker.
- See our Shipping Policy and Return Policy.
Frequently asked questions
What electrical service do I need?
Each model's voltage, amperage, breaker, wire gauge and receptacle or plug are listed in the Specifications and Electrical requirements above. Check your setup with our Electrical Readiness Checker, and have a licensed electrician confirm your circuit before the kiln arrives.
What's the difference between standard and 3-inch brick?
Jen-Ken's 3" brick offers about 20% more insulation than standard brick, for better energy efficiency and heat retention, and is suited to frequent, production-level firing. This model is built with 3" brick walls and lid.
How is freight quoted?
We quote freight upfront, before you pay for it, based on your delivery address and whether you need residential liftgate delivery. Shipping is not included in the kiln price. See our Shipping Policy.
What's the lead time?
Jen-Ken kilns are made to order and ship direct from the manufacturer. We confirm the current lead time with you when you order.
Can I return it?
Eligible items can be returned within 90 days of delivery if they're unused, in original packaging, and haven't been wired in or fired. Custom or built-to-order units aren't returnable, and the customer covers return freight. Contact us for a return authorization before shipping anything back. Full details are in our Return Policy.
What warranty does it have?
Jen-Ken includes a 2-year limited warranty covering both the kiln and the controller. If something develops a fault, contact us and we'll coordinate the warranty claim.

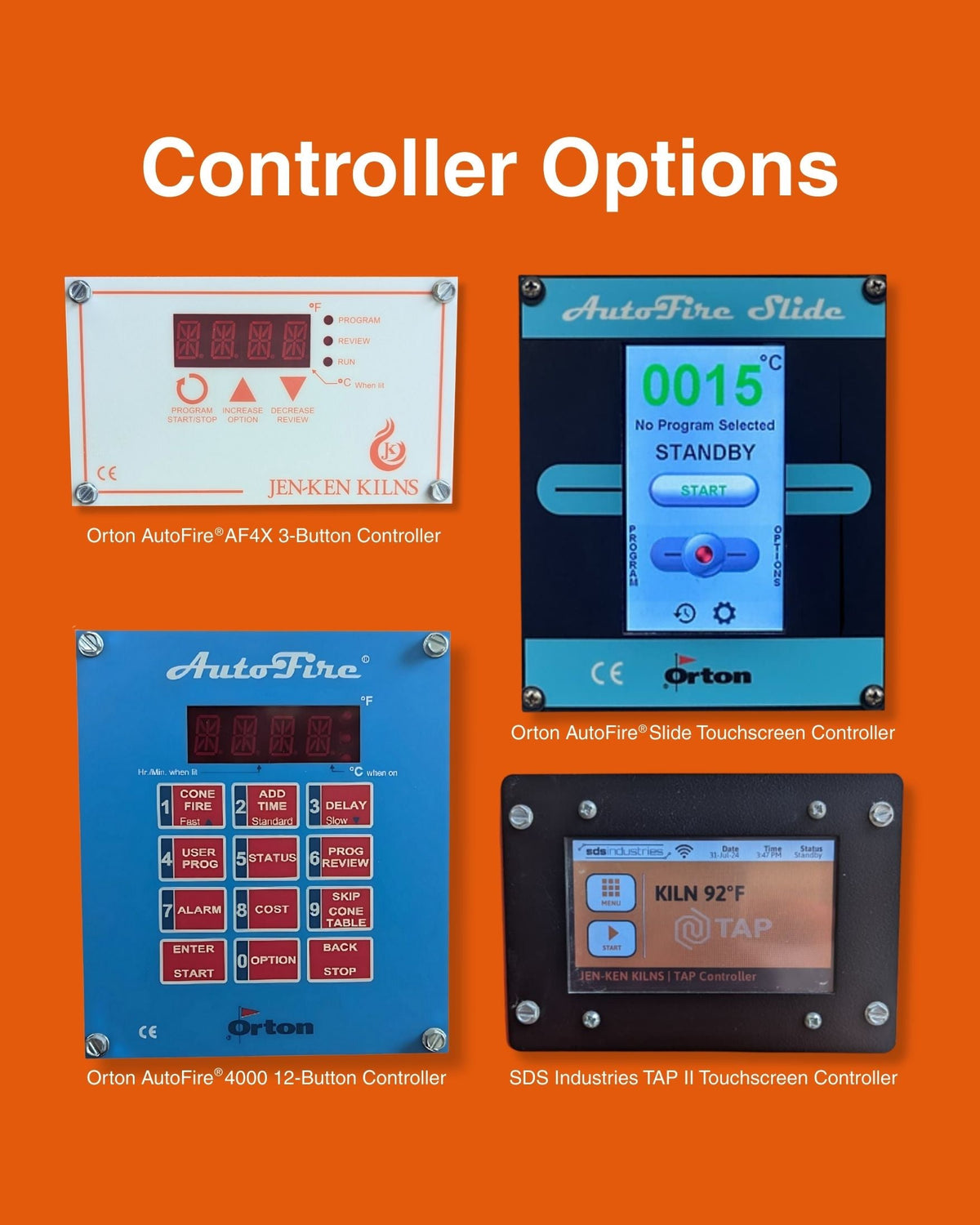

Can I add a controller upgrade, furniture kit or vent?
Jen-Ken offers options such as upgraded controllers, furniture kits, stands and vents. Ask us or call (737) 231-1880 and we'll quote the options that fit your kiln.
Parts for this kiln
Elements, thermocouples, and relays wear with use. We stock genuine manufacturer parts for your model — use the part finder if you're unsure which one you need.
