KILN
Jen-Ken AF3C 1815 Electric Kiln
The AF3C 1815 is an excellent small kiln designed for home use.
$1,801.60Regular price $2,252.00
Save 20%
Freight quoted upfront
Get a Quote Have a Question? →
Recommended add-ons
Jen-Ken AF3C 1815 Electric Kiln
Sale price
$1,801.60
Save 20%
Regular price $2,252.00
Skip to product information
Jen-Ken AF3C 1815 Electric Kiln
Sale price
$1,801.60
Save 20%
Regular price $2,252.00
At a glance
| Size | Medium |
|---|---|
| Interior | 18.0″ × 15.0″ W×D |
| Cubic feet | 1.8 |
| Max cone | Cone 8 |
| Power | 240V · Single · 20A |

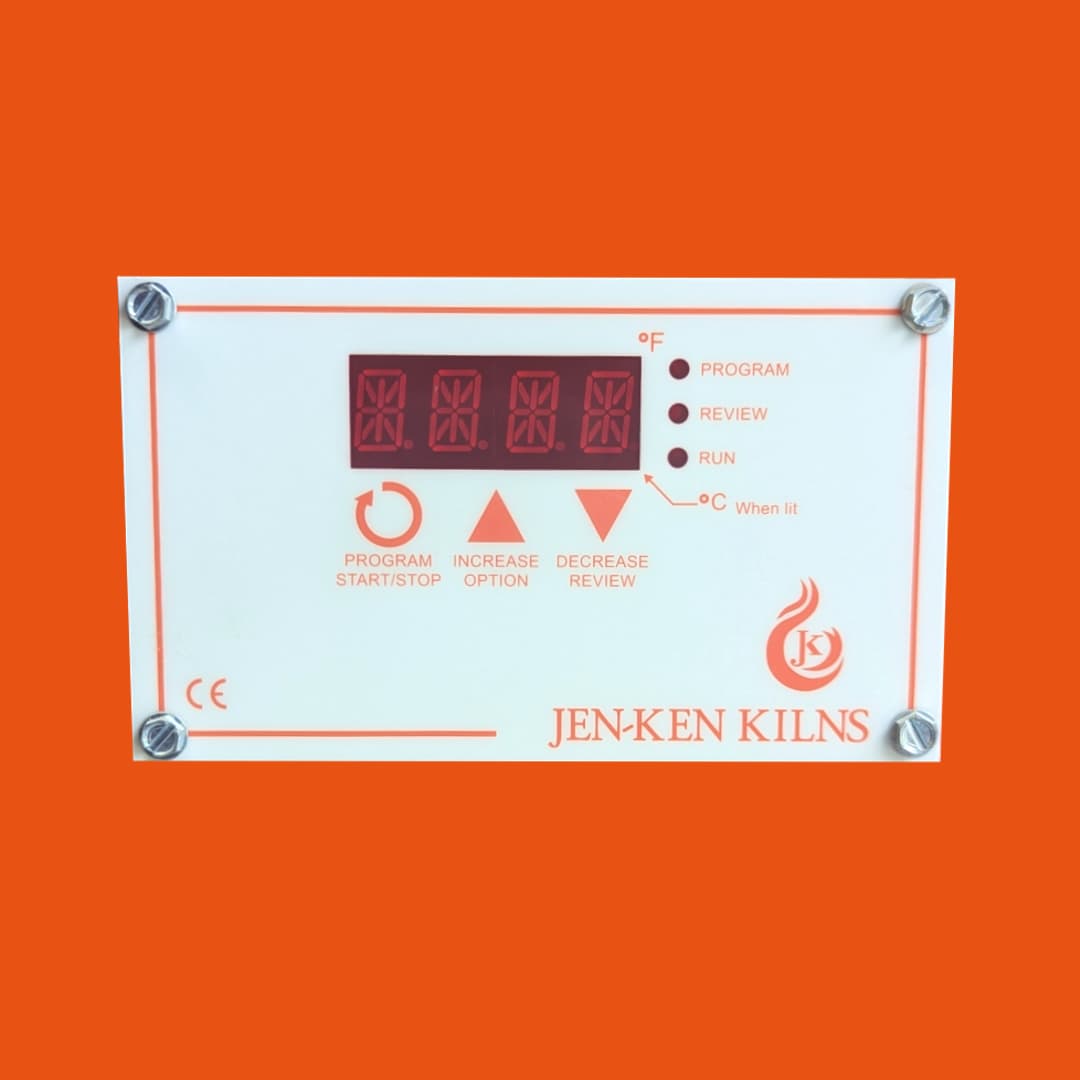

| Controller | Orton AF3C 3-Button Controller |
Capable of firing up to cone 8, it operates efficiently on a 30-amp dryer circuit, is ideal for a home studio, and suitable for supporting classes as well.

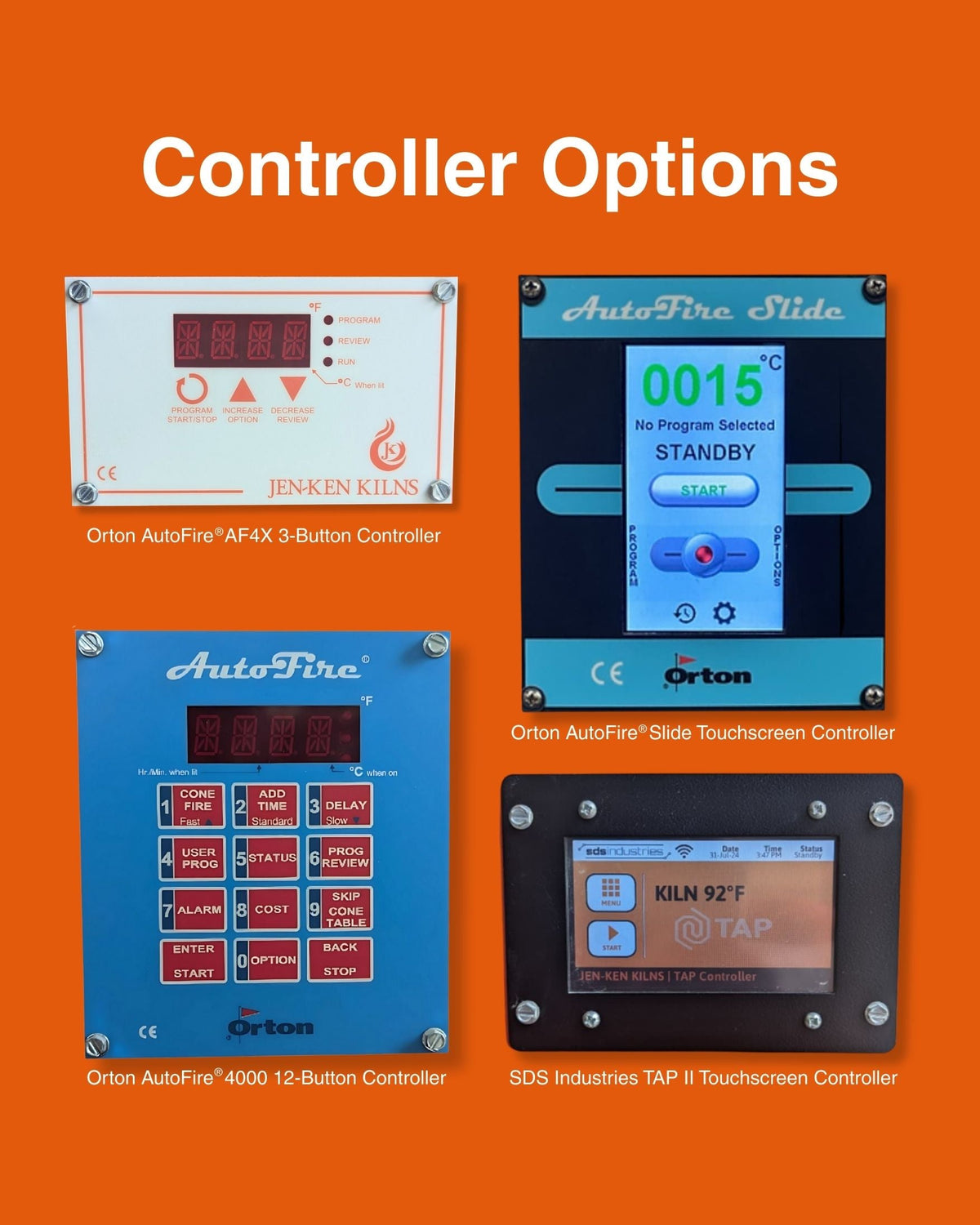

Equipped with the renowned Orton AF3C Digital 3-Button Controller as standard, precise temperature control ensures optimal firing conditions for every project. This controller comes with preloaded firing schedules and 25 blank user programs. With the option to upgrade to the Orton AutoFire 12-Button Controller, AutoFire Slide or the TAP II Touchscreen Controller, you’ll gain even more features and ease of programming.
Key features
- Interior: 18" x 15" (1.8 cu ft)
- Max temperature: 2,300°F
- Controller: Orton AF3C 3-Button Controller
What's included
- Orton AF3C 3-Button Controller

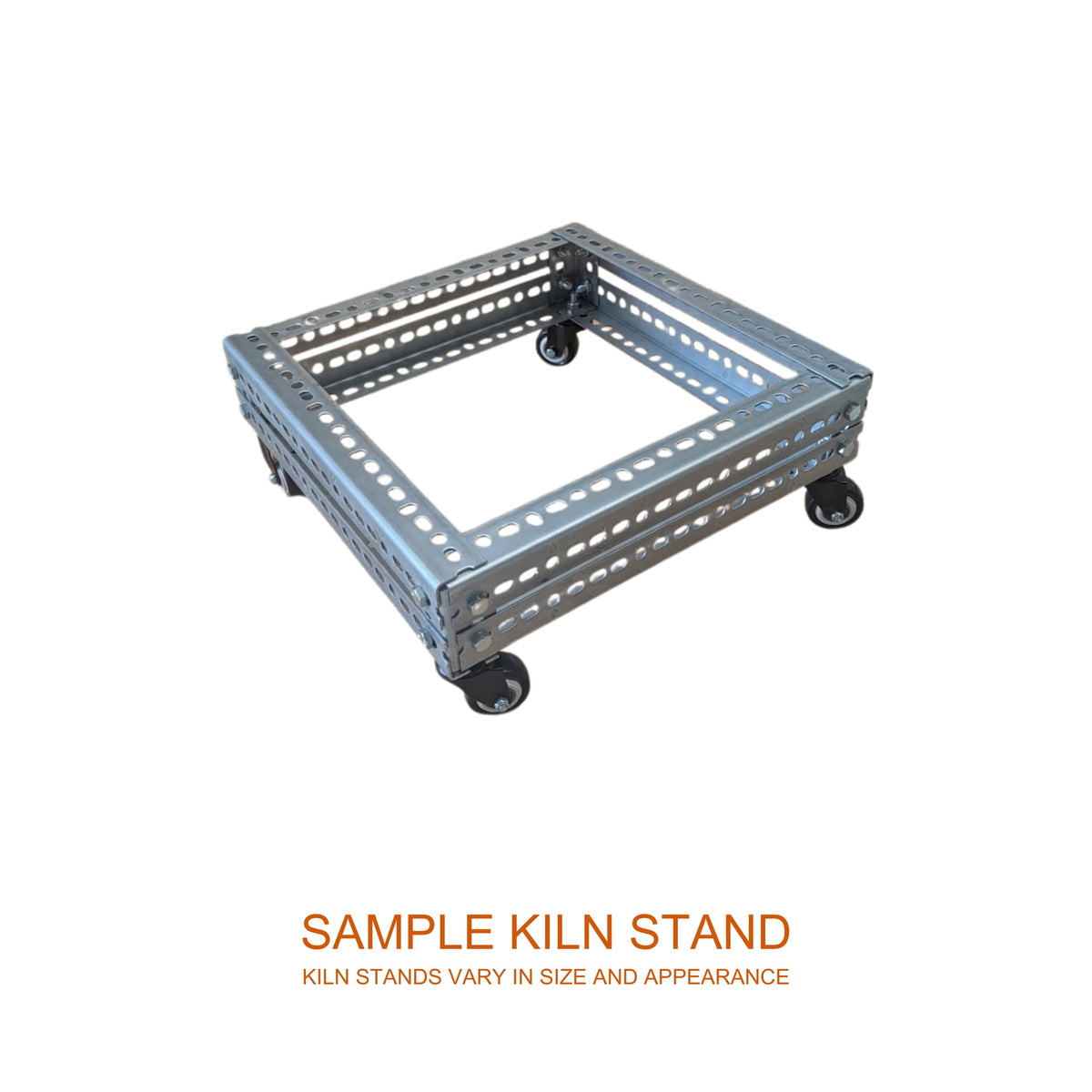

- Kiln Stand
- Instruction Manual
- 2-Year Limited Warranty for Kiln and Controller
Specifications
| Kiln model | 1815 |
|---|---|
| Interior dimensions | 18" x 15" |
| Capacity | 1.8 cu ft |
| Element placement | Side-fired |
| Max temperature | 2,300°F |
| Voltage | 240V |
| Amperage | 20A |
| Wattage | 4,800W |
| Receptacle | 6-30R |
| Breaker | 30A |
| Circuit wire gauge | 10 |
| Overall dimensions (footprint and height) | 23" x 26" x 20" |
| Kiln weight | 100 lbs |
| Shipping weight (average) | 125 lbs |
| Shipping dimensions | 42" x 46" x 42" |
| Controller | Orton AF3C 3-Button Controller |
| Brick thickness | Standard brick |
| Loading type | Top-loading |
| Shipping method | Motor freight — quoted upfront |
Electrical requirements
240V single-phase: 20A draw, 4,800W, breaker 30A, 10-gauge wire, receptacle 6-30R. Have a licensed electrician confirm your circuit, breaker and receptacle before the kiln arrives.
Warranty
2-year limited manufacturer warranty covering both the kiln and the controller.
Shipping, lead time & ordering
- Made to order and shipped direct from the manufacturer. We confirm current lead time with you when you order.
- Ships by motor freight (LTL truck) — freight is quoted upfront, before you pay for it. Residential liftgate delivery is available.
- Not sure about size, voltage, or your outlet? Talk to us or call (737) 231-1880 before you order, and try our Electrical Readiness Checker.
- See our Shipping Policy and Return Policy.
Frequently asked questions
What electrical service do I need?
Each model's voltage, amperage, breaker, wire gauge and receptacle or plug are listed in the Specifications and Electrical requirements above. Check your setup with our Electrical Readiness Checker, and have a licensed electrician confirm your circuit before the kiln arrives.
What's the difference between standard and 3-inch brick?
Jen-Ken's 3" brick offers about 20% more insulation than standard brick, for better energy efficiency and heat retention, and is suited to frequent, production-level firing. Ask us about the brick options for this model.
How is freight quoted?
We quote freight upfront, before you pay for it, based on your delivery address and whether you need residential liftgate delivery. Shipping is not included in the kiln price. See our Shipping Policy.
What's the lead time?
Jen-Ken kilns are made to order and ship direct from the manufacturer. We confirm the current lead time with you when you order.
Can I return it?
Eligible items can be returned within 90 days of delivery if they're unused, in original packaging, and haven't been wired in or fired. Custom or built-to-order units aren't returnable, and the customer covers return freight. Contact us for a return authorization before shipping anything back. Full details are in our Return Policy.
What warranty does it have?
Jen-Ken includes a 2-year limited warranty covering both the kiln and the controller. If something develops a fault, contact us and we'll coordinate the warranty claim.
Can I add a controller upgrade, furniture kit or vent?
Jen-Ken offers options such as upgraded controllers, furniture kits, stands and vents. Ask us or call (737) 231-1880 and we'll quote the options that fit your kiln.
Parts for this kiln
Elements, thermocouples, and relays wear with use. We stock genuine manufacturer parts for your model — use the part finder if you're unsure which one you need.
