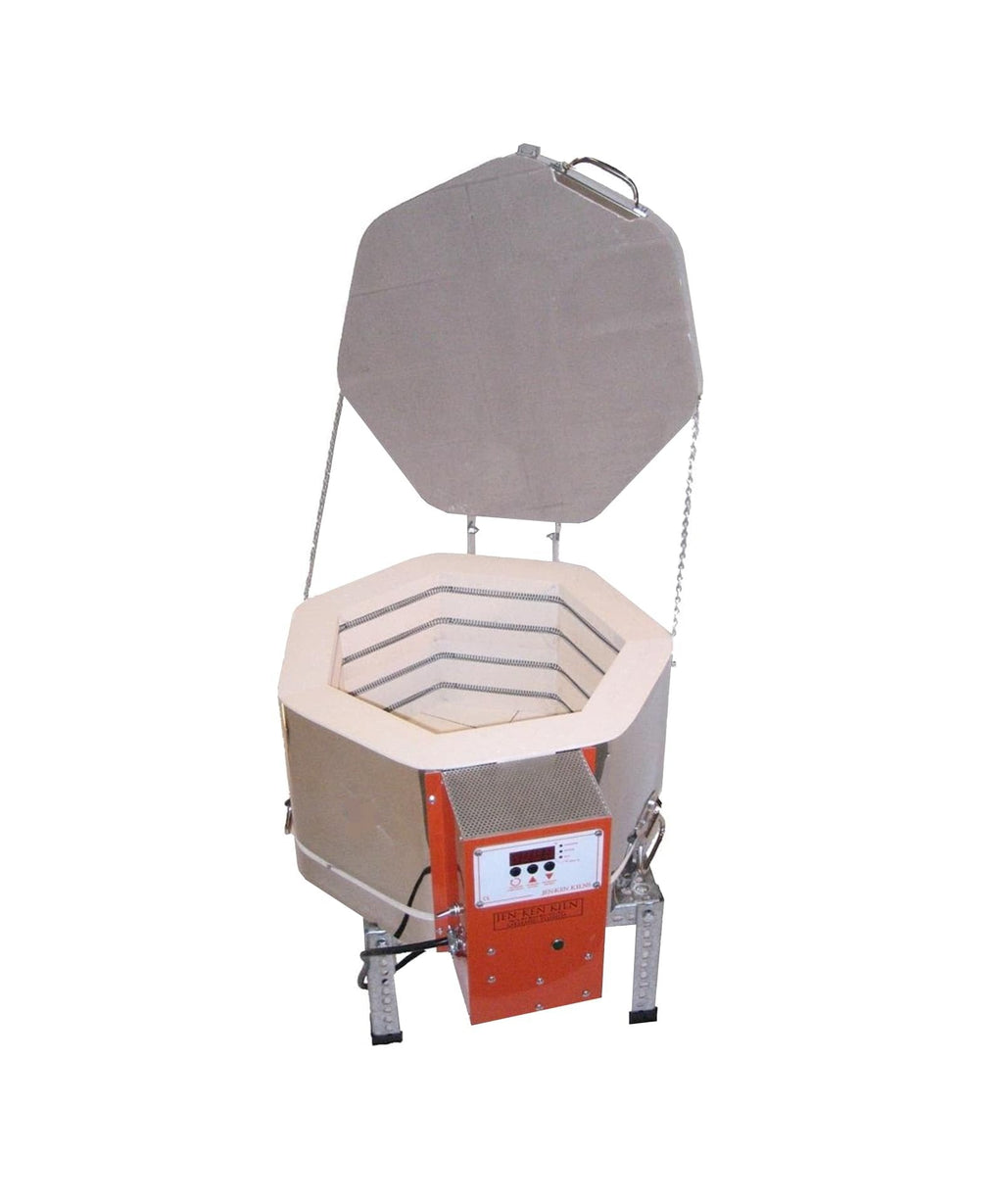

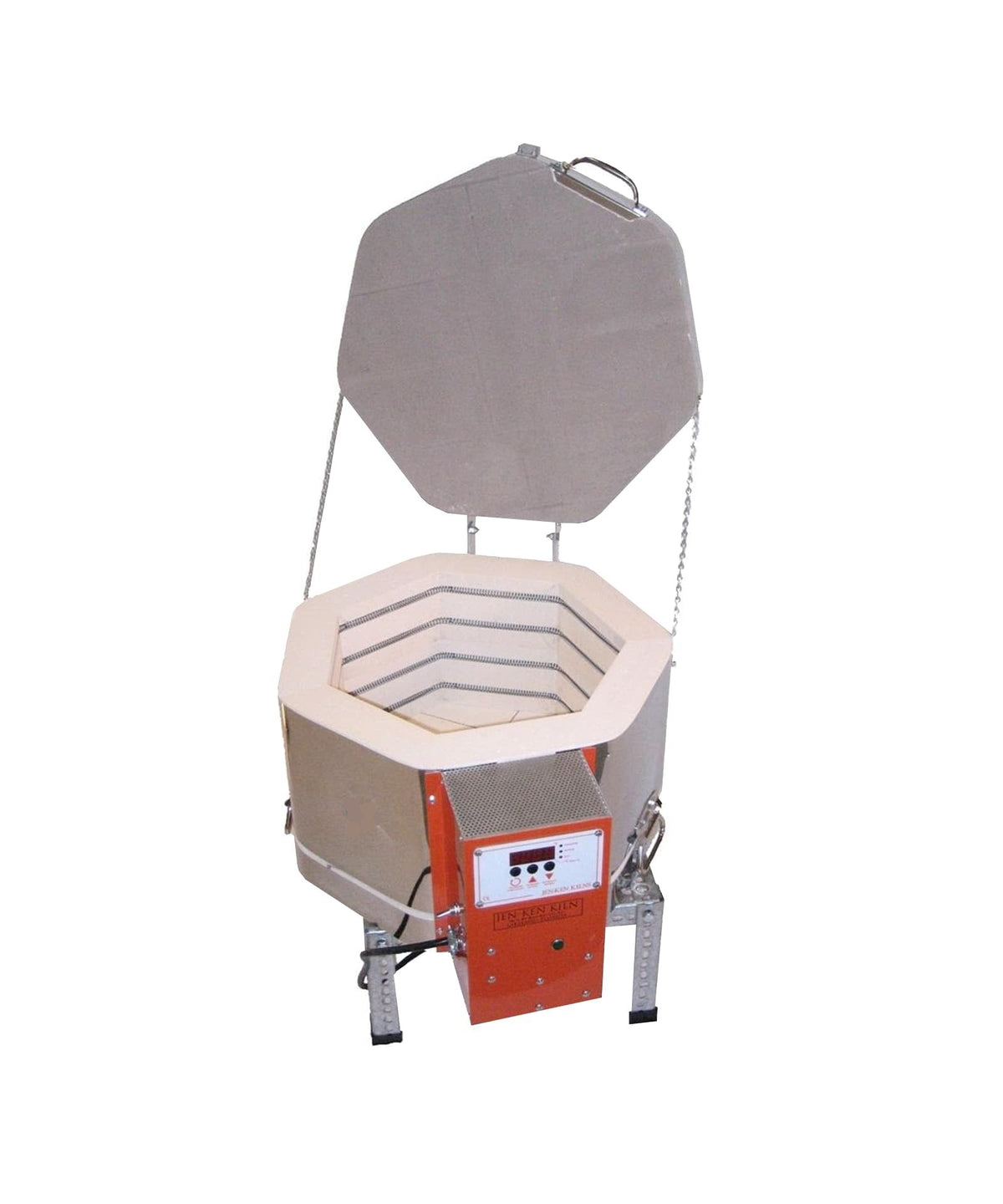

Jen-Ken AF3C 15/9 Electric Kiln
The 15/9 is a compact kiln designed for ceramics, pottery, porcelain, and glass casting.
$1,461.60Regular price $1,827.00
Save 20%
Freight quoted upfront
Get a Quote Have a Question? →
Recommended add-ons
Jen-Ken AF3C 15/9 Electric Kiln
Sale price
$1,461.60
Save 20%
Regular price $1,827.00
Skip to product information
Jen-Ken AF3C 15/9 Electric Kiln
Sale price
$1,461.60
Save 20%
Regular price $1,827.00
At a glance
| Size | Small |
|---|---|
| Interior | 15.0″ × 9.0″ W×D |
| Cubic feet | 0.99 |
| Max cone | Cone 8 |
| Power | 240V · Single · 15A |

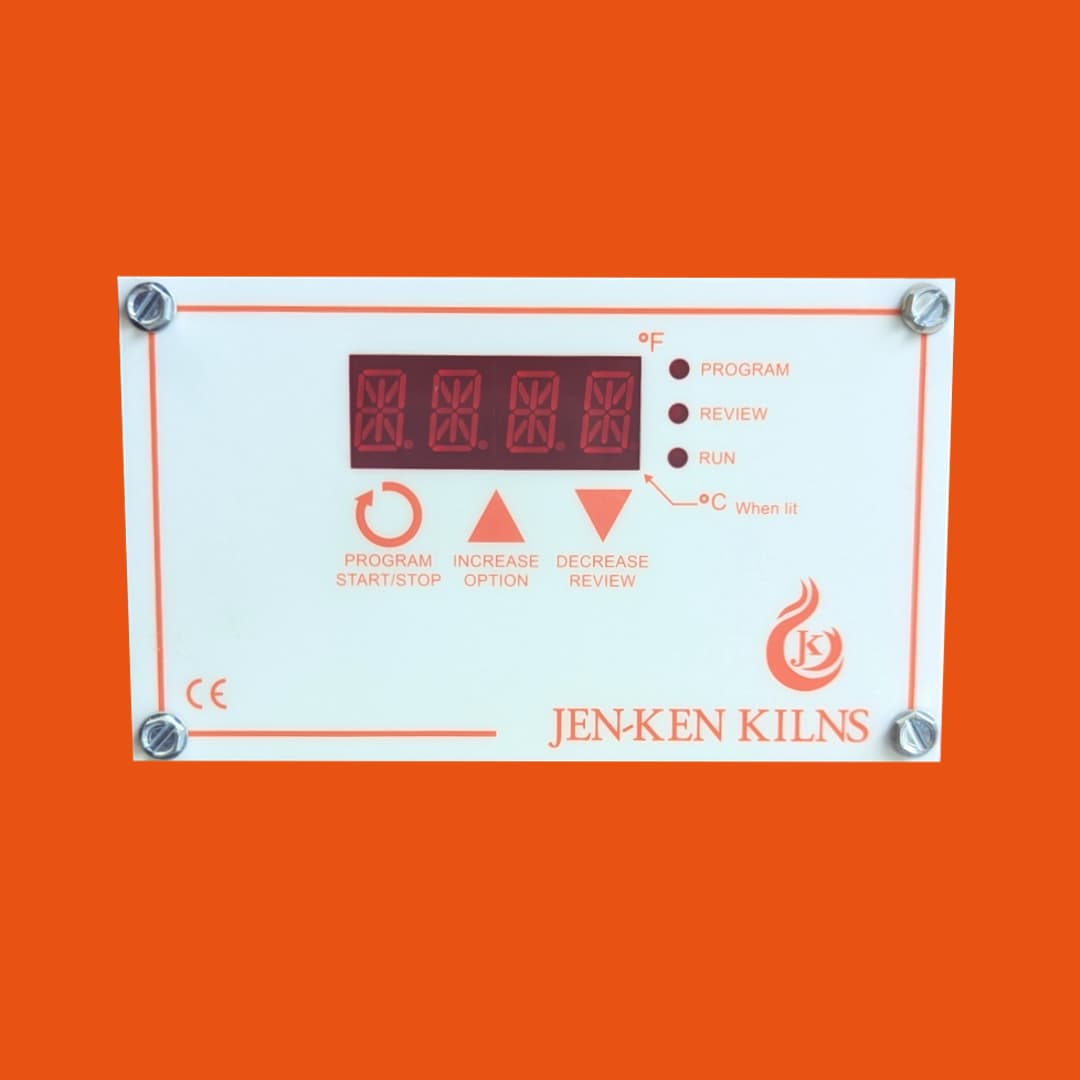

| Controller | Orton AutoFire AF3P 3-Button Controller |
It boasts large handles for easy mobility, durable 2,300°F fire brick construction, and a 2-position lid prop for efficient venting. Ideal for artisans specializing in smaller ceramic, clay, or glass pieces, this kiln is an excellent choice!
With its high-temperature lid coating and side firing capabilities, this kiln is designed to meet the demands of your creative projects. Expand your creative possibilities with the optional 3-layer shelf kit, enhancing your ability to create a variety of works.
Solid-state relays are not available on 15/9 kilns.
Key features
- Interior: 15" x 9" (0.99 cu ft)
- Max temperature: 2,300°F
- Controller: Orton AutoFire AF3P 3-Button Controller
What's included
- Orton AutoFire AF3P 3-Button Controller

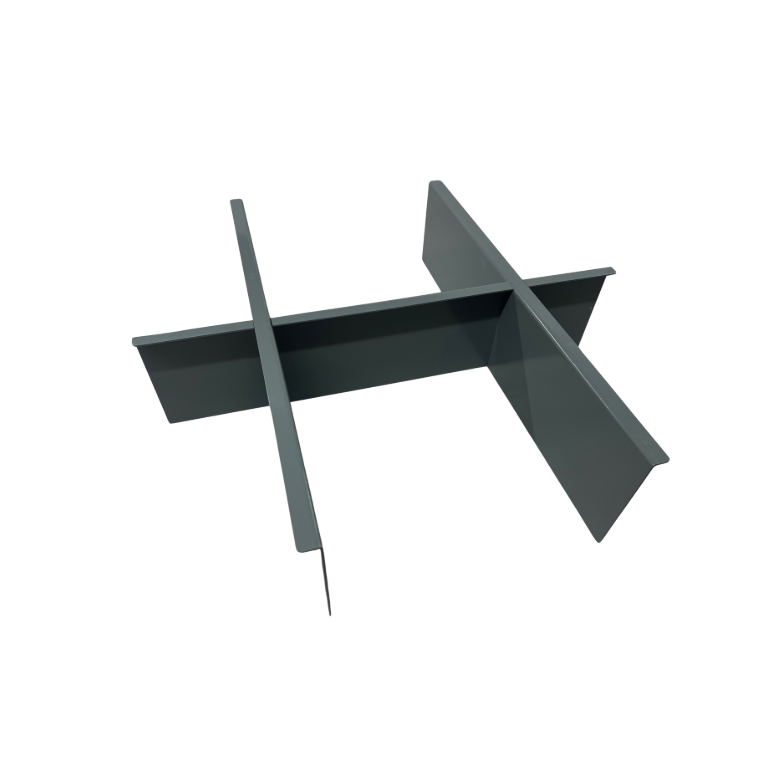

- Kiln Stand
- Instruction Manual
- 2-Year Limited Warranty for Kiln and Controller
Specifications
| Kiln model | AF3C 15/9 |
|---|---|
| Interior dimensions | 15" x 9" |
| Capacity | 0.99 cu ft |
| Element placement | Side-fired |
| Max temperature | 2,300°F |
| Voltage | 240V |
| Amperage | 15A |
| Wattage | 3,600W |
| Receptacle | 6-20P |
| Breaker | 20A |
| Circuit wire gauge | 12 |
| Overall dimensions (footprint and height) | 20" x 14" |
| Kiln weight | 70 lbs |
| Shipping weight (average) | 120 lbs |
| Shipping dimensions | 32" x 31" x 32" |
| Controller | Orton AutoFire AF3P 3-Button Controller |
| Brick thickness | Standard brick |
| Loading type | Top-loading |
| Shipping method | Motor freight — quoted upfront |
Electrical requirements
240V single-phase: 15A draw, 3,600W, breaker 20A, 12-gauge wire, receptacle 6-20P. Have a licensed electrician confirm your circuit, breaker and receptacle before the kiln arrives.
Warranty
2-year limited manufacturer warranty covering both the kiln and the controller.
Shipping, lead time & ordering
- Made to order and shipped direct from the manufacturer. We confirm current lead time with you when you order.
- Ships by motor freight (LTL truck) — freight is quoted upfront, before you pay for it. Residential liftgate delivery is available.
- Not sure about size, voltage, or your outlet? Talk to us or call (737) 231-1880 before you order, and try our Electrical Readiness Checker.
- See our Shipping Policy and Return Policy.
Frequently asked questions
What electrical service do I need?
Each model's voltage, amperage, breaker, wire gauge and receptacle or plug are listed in the Specifications and Electrical requirements above. Check your setup with our Electrical Readiness Checker, and have a licensed electrician confirm your circuit before the kiln arrives.
What's the difference between standard and 3-inch brick?
Jen-Ken's 3" brick offers about 20% more insulation than standard brick, for better energy efficiency and heat retention, and is suited to frequent, production-level firing. Ask us about the brick options for this model.
How is freight quoted?
We quote freight upfront, before you pay for it, based on your delivery address and whether you need residential liftgate delivery. Shipping is not included in the kiln price. See our Shipping Policy.
What's the lead time?
Jen-Ken kilns are made to order and ship direct from the manufacturer. We confirm the current lead time with you when you order.
Can I return it?
Eligible items can be returned within 90 days of delivery if they're unused, in original packaging, and haven't been wired in or fired. Custom or built-to-order units aren't returnable, and the customer covers return freight. Contact us for a return authorization before shipping anything back. Full details are in our Return Policy.
What warranty does it have?
Jen-Ken includes a 2-year limited warranty covering both the kiln and the controller. If something develops a fault, contact us and we'll coordinate the warranty claim.

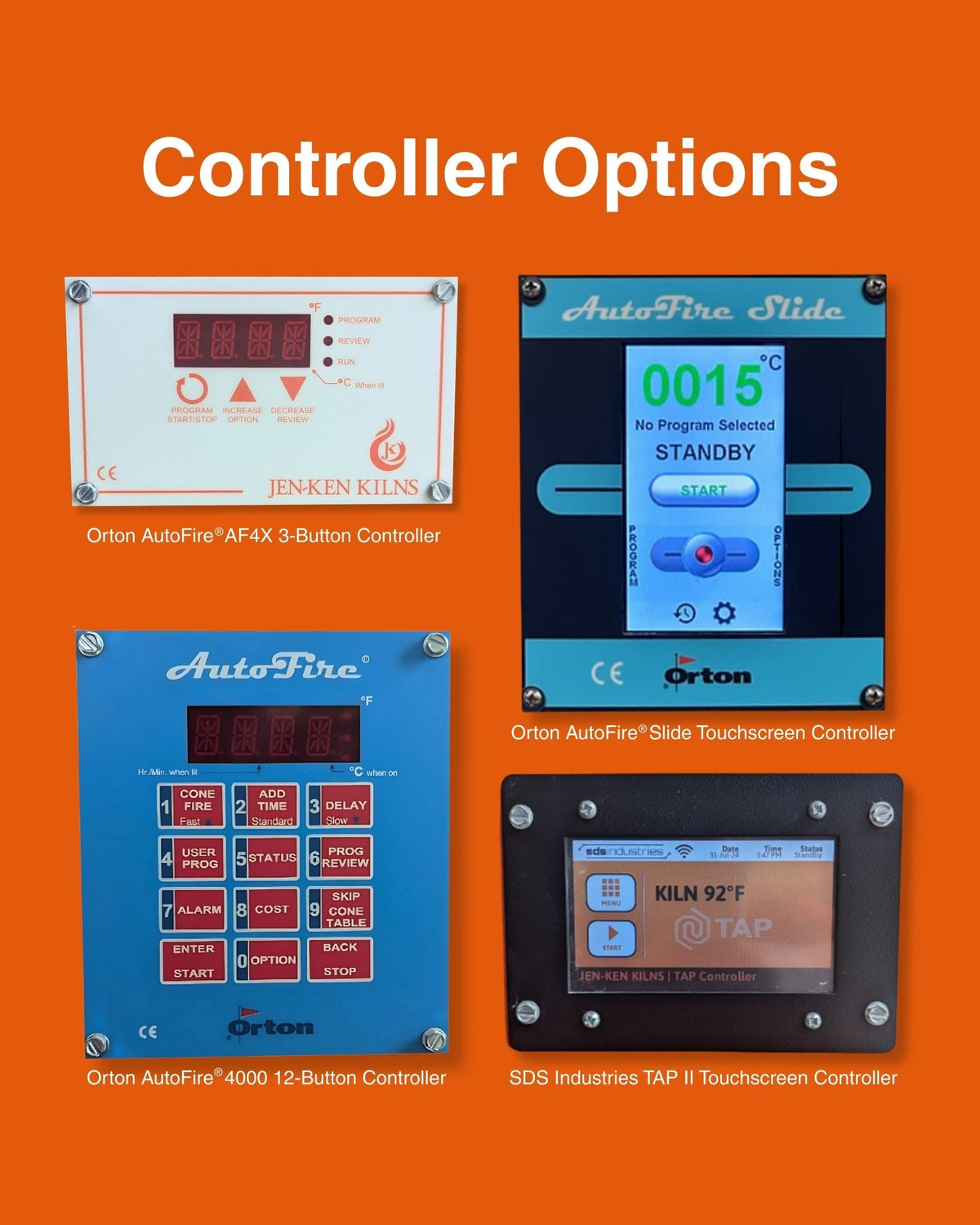

Can I add a controller upgrade, furniture kit or vent?
Jen-Ken offers options such as upgraded controllers, furniture kits, stands and vents. Ask us or call (737) 231-1880 and we'll quote the options that fit your kiln.
Parts for this kiln
Elements, thermocouples, and relays wear with use. We stock genuine manufacturer parts for your model — use the part finder if you're unsure which one you need.
