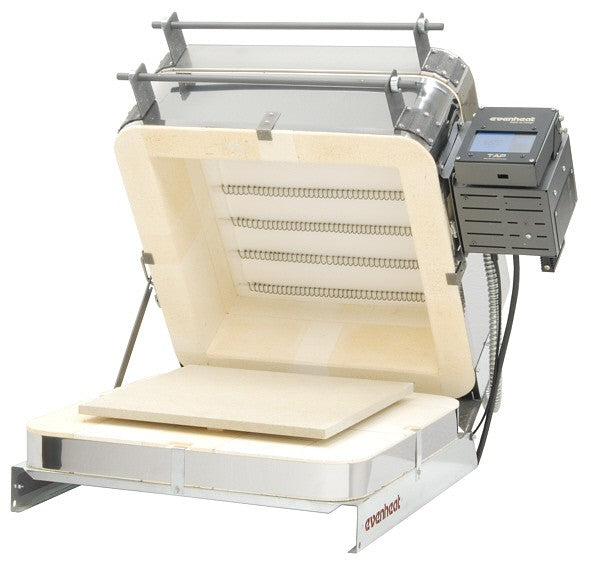

Front Access

The defining feature of the Studio Pro design is its front access. Simply lift the chamber to expose the entire floor. It's wall-free and wide open.

Front access is perfect for glass placement: simply build directly on your shelf and close the chamber. Front access is also great when using tools that require a horizontal approach such as raking, roll ups and manipulation techniques.

Top Access

The Studio Pro 17 features top access as part of the dual access design.

Top access is excellent for the loading of shelves and forms as it allows for easy and precise placement. Top access is also preferred for many vertical-approach manipulation techniques such as embossing.

Fiber & Firebrick Design

The Studio Pro 17 is constructed of both fiber and firebrick.

Fiber is used in the lid to speed up the firing process to avoid devitrification and provide for a lighter weight lid.

Firebrick is used in both the walls and floor and provides excellent heat-storage properties which helps smooth out temperature swings and is awesome for annealing. By its nature, firebrick cleans up the temperature fluctuations that "all-fiber" kilns experience. You want a portion of firebrick in your glass kiln and the Studio Pro 17 delivers.

Swing View Equipped

Studio Pro 17 temperature controls are fitted to our Swing View Adjustable Enclosure.

The swing view is a pivoting, swing-up enclosure that allows you to rotate the control to a comfortable viewing and programming angle. Once you're done, lay it back down to see it from across your studio. It's that simple.

The swing view pairs well with touchscreen controls like the TAP II as viewing angle can be perfectly aligned. You'll love it.

Quiet Drive Solid State Relay

Studio Pro 17 models are standard equipped with our Quiet Drive Solid State Relay.

Our Quiet Drive Solid State Relay System offers tight temperature control, high reliability and increased heating element life. The Quiet Drive is arguably the best designed and best performing solid state system on the market.

Relay Access Port

The Studio Pro 17 incorporates our Relay Access Port for simple, no-panel-off relay replacement.

Simply remove the access plate to gain access to the mechanical relay. There's no need to remove the control panel and dig into the internal wiring. It's absolutely simple and effective and all it takes is a screwdriver!

It's a given that mechanical relays will fail at some point. This relay access port really comes in handy when they do.

Bench-Top Operation

The Studio Pro 17 is designed to be placed directly on your counter or bench-top or within the included floor stand (see below), the choice is yours.

Bench-top operation positions the kiln at waist level for very comfortable front access use.

Please note that counters and bench tops must be constructed of non-combustible material and be capable of supporting the load of the kiln.

Elemented Fiber Lid

Evenheat's fiber lid construction offers a faster heat-up than traditional 120V firebrick designs, about 50% faster. This faster firing potential reduces or completely eliminates devitrification.

The lid of the Studio Pro 17 is constructed of a special fiber material that provides excellent thermal properties along with light weight. This design allows the heating elements to be positioned on the surface for maximum heat transfer and firing efficiency.

We also position these lid heating elements left to right to prevent them from sagging or bunching-up with repeated opening and closing. It's a small but important detail that guarantees performance and satisfaction over the life of the kiln.

Floor Stand included

The Studio Pro 17 is supplied with a 16" stand for optional floor placement if desired.

Power Interrupt Switch Equipped

The Studio Pro 17 is standard equipped with a power interrupt switch which removes electrical power from all heating elements if either the lid or chamber is opened.

This is important for those who may access the kiln during firing such as glass manipulation and roll-ups.

Multiple Control Options

The Studio Pro 17 is available in a variety of controls including the Icon, Icon+, Tap II and Rampmaster 3.

At Evenheat we take the best control platforms on the market and make them even better by adding Special Limits thermocouples for precise temperature sensing and non-metallic faceplates for stellar Wi-Fi reception for on-line Apps.

Voltage Options

Our default production for Studio Pro 17 is 120V, Single Phase.

We do offer to build in 200V, 208V, 220V, 230V and 240V by request.

All controls available on the Studio Pro 17 will operate properly on both 50Hz and 60Hz line frequencies. To say it another way, line frequency has no effect. It doesn't matter.

Evenheat recommends that you check your operating voltage before ordering or placing the kiln in service.

Voltage Phase Options

Studio Pro17 models are produced in a single phase design only.

3 phase Delta and Y (380V, 400V and 415V) designs are not available.

• Chamber Dimensions: 17" L x 17" W x 6.5" D - 1.10 Cubic Feet
  (43.2cm L x 43.2cm W x 16.5cm D - 24L)
• Outside Dimensions: 29.5" L x 28" W x 32" H (with 16" stand)
  (74.9cm D x 71.1m W x 81.3cm H)
• Maximum Use Temperature: 1650°F (900°C)
• Standard Electrical: 120 Volts, 18 Amps, 2160 Watts, 50/60Hz, Single Phase
  (Requires a Fully Rated 20A Breaker)
  Power Cord Plug Configuration - NEMA 5-20
  Available in 200V, 208V, 220V, 230V and 240V by request
  Operates properly on both 50Hz and 60Hz
  Consult with an electrician for proper fuse panel, service wire size, receptacle, and fusing requirements. This model, used for its intended and expected purpose, would not be defined as "continuous use". Continuous use is defined as continuous, full power on for 3+ hours.
• Weight: 105lb. (47.7Kg) - Approx.
• Shipping Method: Freight Truck
  NRTL Listing Agency - TUV Listed United States and Canada - Designed and Tested to CSA & U/L 499

Product description and specifications courtesy of Evenheat Kiln, Inc. Specifications subject to change by the manufacturer.
